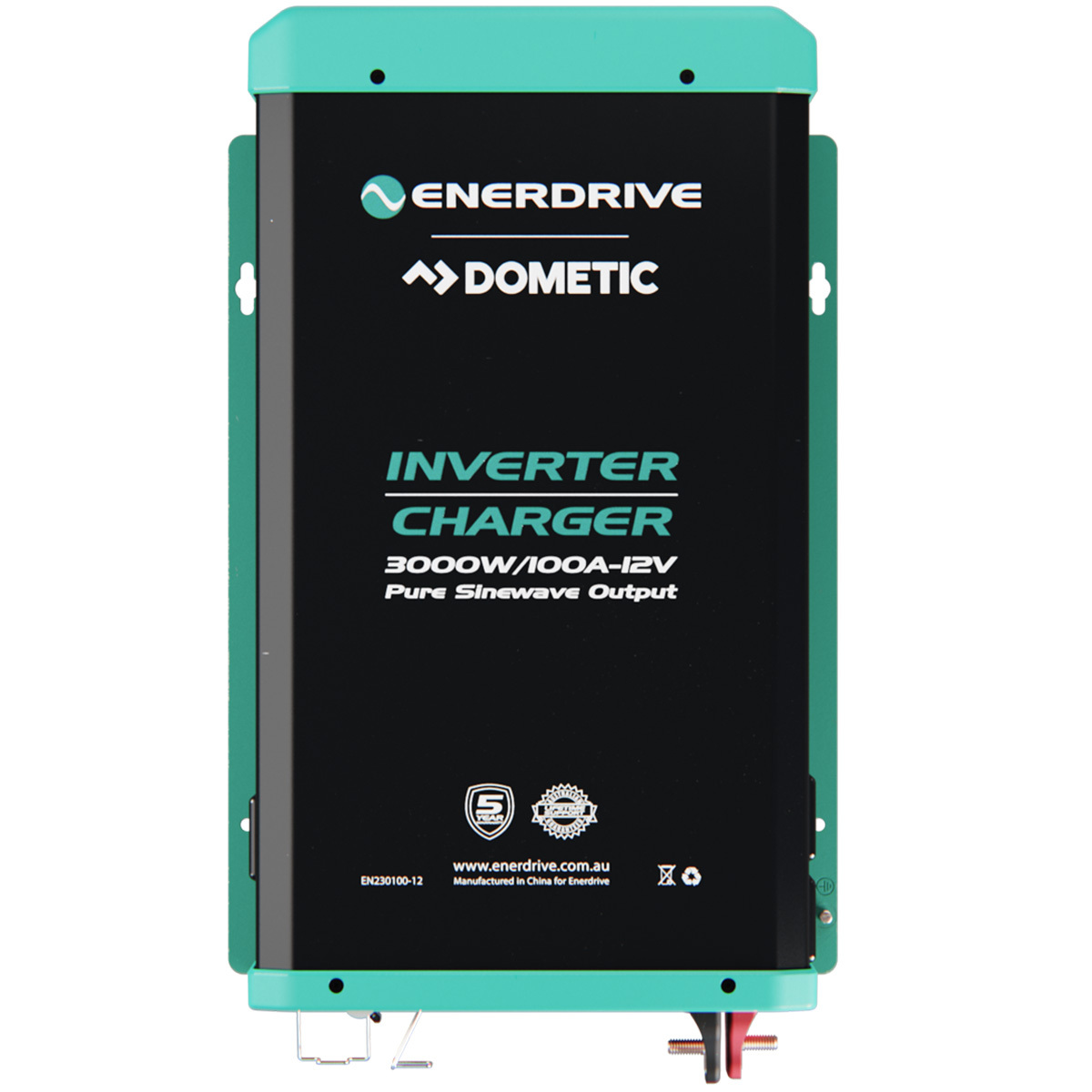

With our state of the art, easy to use design, this product will offer you True Sinewave AC power for your RV, Marine, 4WD and remote power needs, whilst also recharging your battery automatically when 240V AC is available.

The Sinewave Inverter-Charger can run multiple 240V AC-powered appliances when you need AC power off-grid. The multi-stage battery charger offers charging profiles for multiple different types of batteries. The built-in transfer switch will automatically switch between 240V mains supply when available and battery power when 240V mains is not available.

Also included in the unit is a RCD Safety Switch. This switch monitors the flow of electricity through the inverter and detects any problems that may pose a risk to personal safety and switches the output power off within 0.03 of a second.

The 12V 3000W/100A Inverter-Charger is suitable for appliances that use up to 3000W of power for operation, such as induction cooktops, microwaves, coffee machines and more. All ENERDRIVE | DOMETIC branded products are covered by our extensive 5 Year warranty.

12V 3000W/100A Inverter-Charger Features:

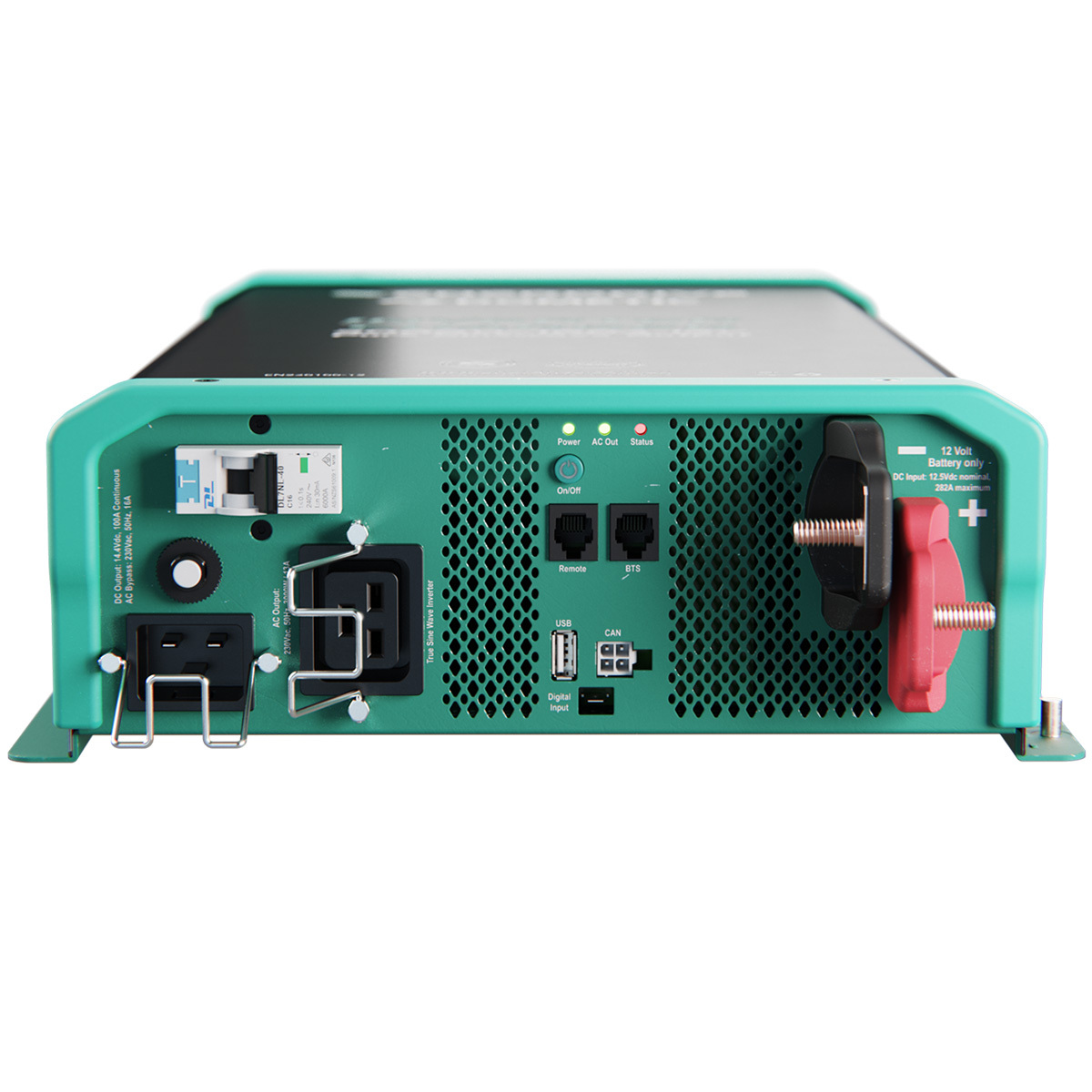

  • Seamless 16A AC Internal Transfer Switch
  • AC RCD/Safety Switch with test button
  • Remote Control Display Panel
  • Regulated Pure Sine Wave Output
  • Quiet Operation
  • Compact Size for Easy Installation
  • Variable settings offered for Gel, Flooded, AGM, and Lithium battery compatibility.
  • Multi-stage charging ensures batteries are charged to their manufacturer’s recommendations.
  • Lightweight compact design
  • Built-in load sense to minimize battery drain
Charger Output Current (Maximum) 100A
AC Output Power 3000W
AC Output Current 13.0A
AC Output Voltage 230VAC
AC Output Waveform True Sinewave (<3% THD)
Nominal DC Input Voltage 12.5 V
DC Input Voltage operating range 10.5 - 16.5 V
Under Voltage Alarm 11.0 / 12.5 V
Under Voltage Shutdown 10.5 / 12.0 V
Over Voltage Shutdown 16.5 V
AC Transfer Switch Transfer Time <30ms
Transfer Relay Rating 16A
AC Input socket IEC-C20 16A Heavy Duty Connector
AC Output socket IEC-C19 16A Heavy Duty Connector
Conformance LVD: EN/IEC 62040-1, IEC 61558-2-16
Agency Markings CE
Operating Temperature 0°C to 40°C
Peak Efficiency 90%
Storage Temperature -20°C to 60°C
Relative Humidity 5 - 90% non-condensing
Operating Altitude Up to 3000m above sea level
Weight 10.4kg
Dimensions (W x H x D) 307 x 533 x 108 mm
Warranty 5 Years







SKU IEN123000100
Barcode # EN230100-12
Brand Enerdrive
Shipping Weight 12.0000kg
Shipping Width 0.600m
Shipping Height 0.360m
Shipping Length 0.180m
Shipping Cubic 0.038880000m3
