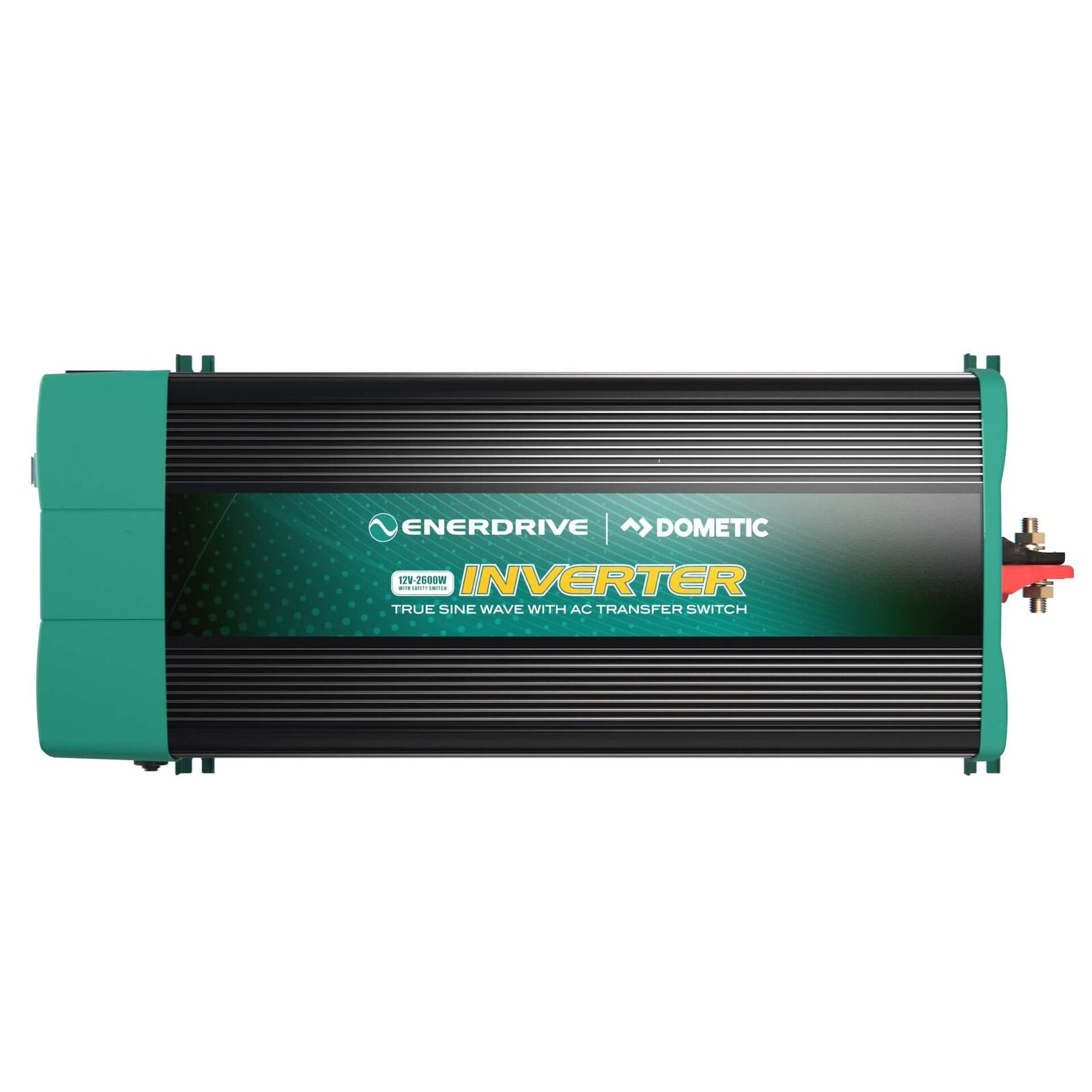

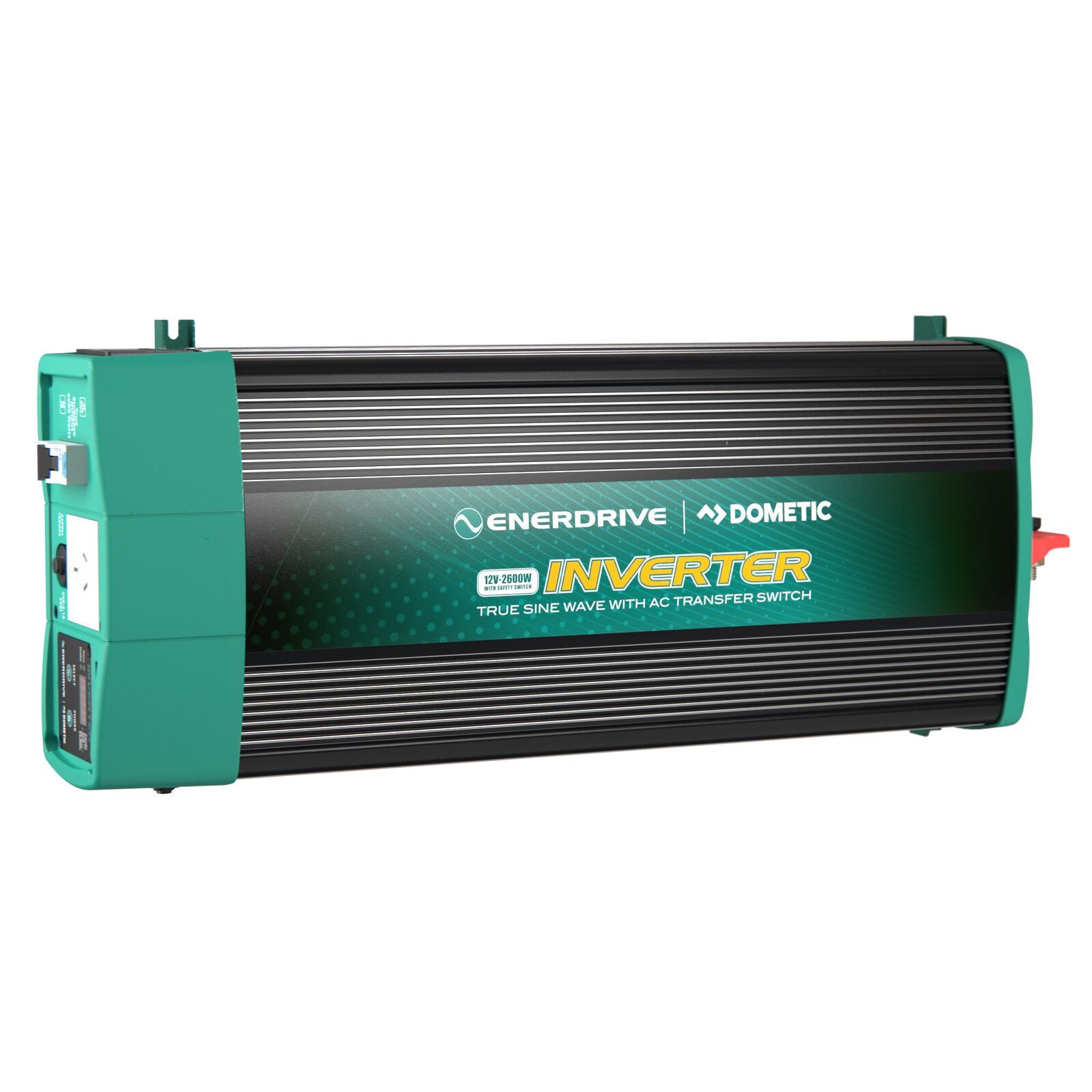

Enerdrive ePOWER 12V 2600w True Sine Wave Inverter with AC Transfer & Safety Switch
Enerdrive ePOWER 12V 2600w w/AC Transfer & Safety Switch

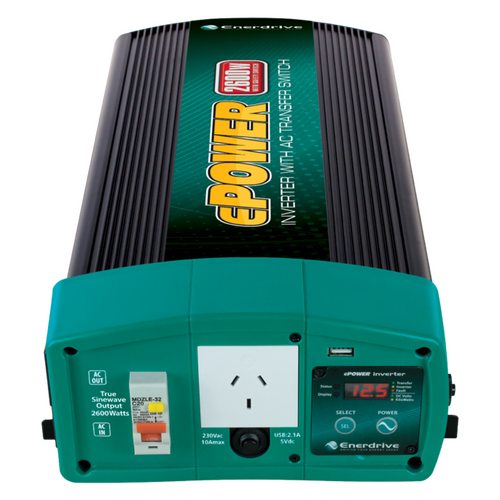

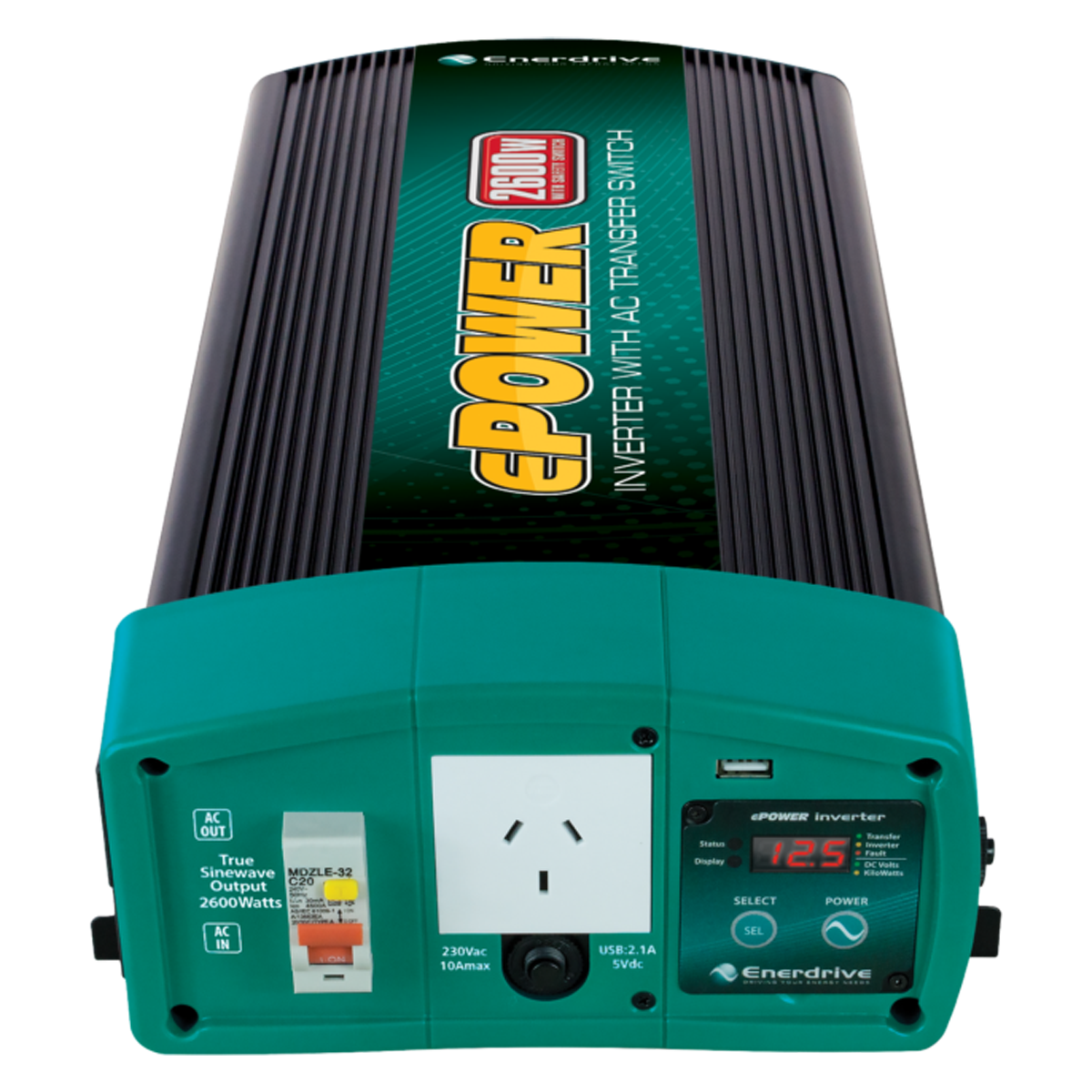

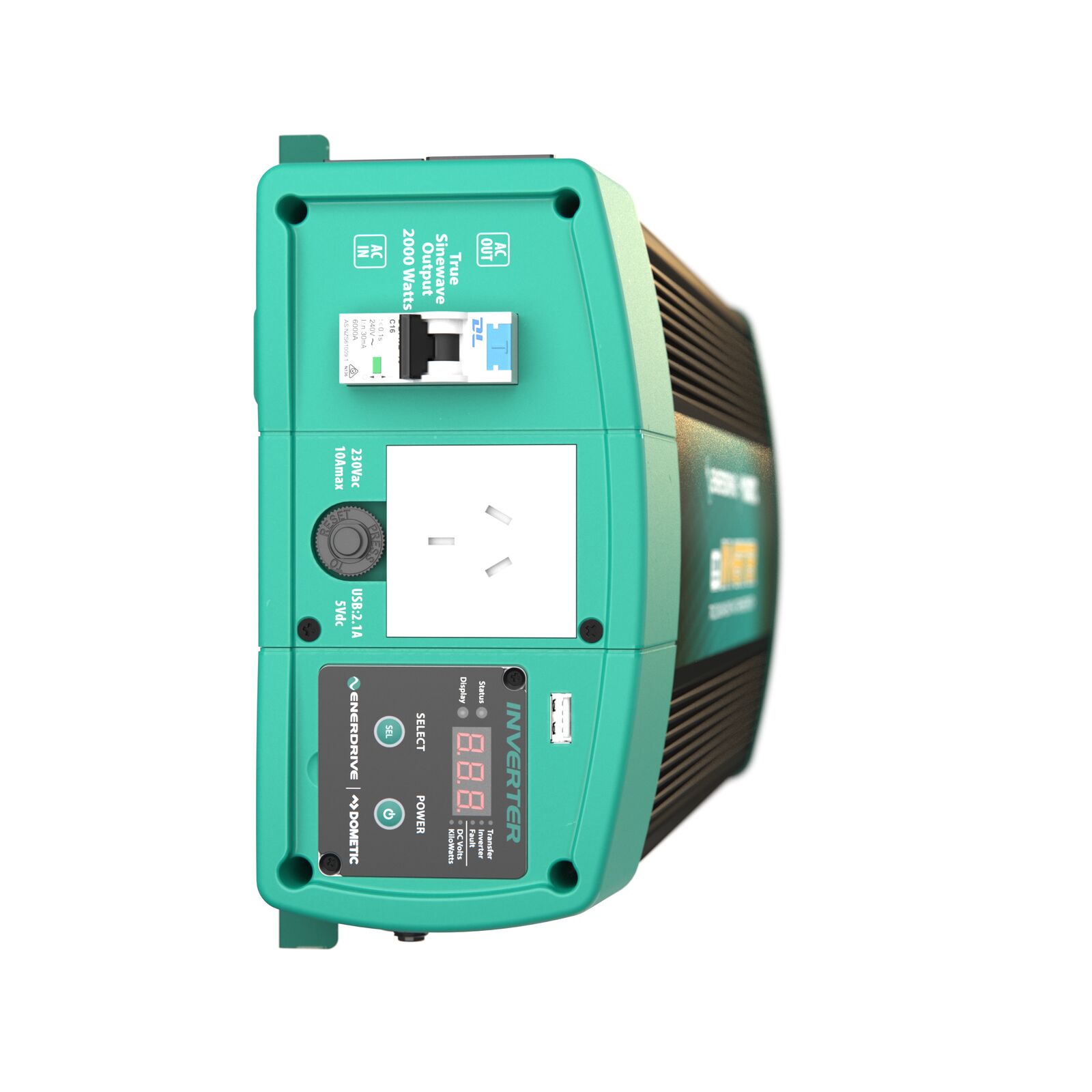

ePOWER 2600W True Sine Wave Inverter with AC Transfer Switch & Safety Switch
The ePOWER 2600W Inverter with AC Transfer & Safety Switch is one in a family of affordable, high quality, professional level inverters by Enerdrive. By using the latest power conversion technology, ePOWER inverters deliver clean and energy efficient true sine wave AC power from your DC supply.

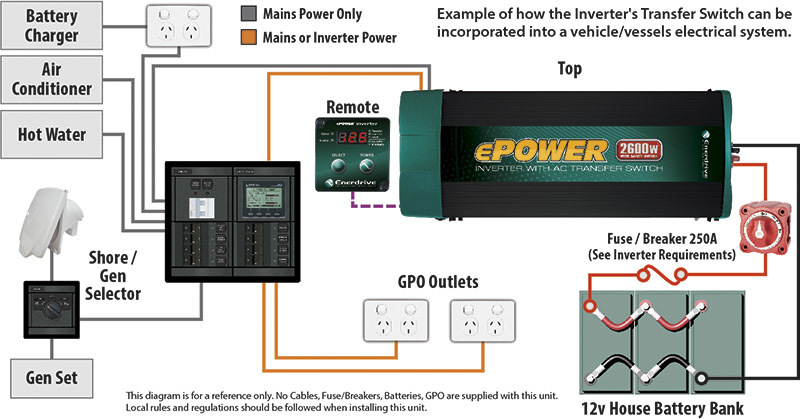

This ePOWER Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter. This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board.
Also included in the unit is a RCD Safety Switch. This switch monitors the flow of electricity through the inverter and detects any problems that may pose a risk to personal safety and switches the output power off within 0.03 of a second.
The ePOWER 2600W is built to operate basic equipment such as power tools, computers, microwave ovens, televisions and other appliances that use up to 2600W of power for operation. All Enerdrive ePOWER Inverters are covered by our extensive 5 Year warranty.

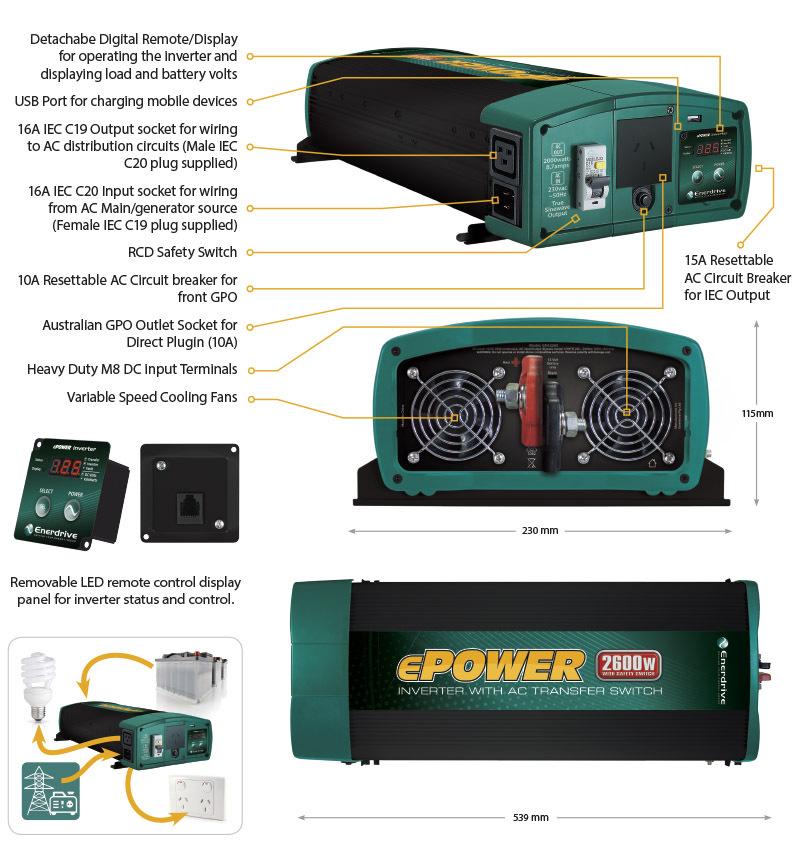

ePOWER Inverter Features:
- Seamless 16A AC Internal Transfer Switch
- AC RCD/Safety Switch with test button

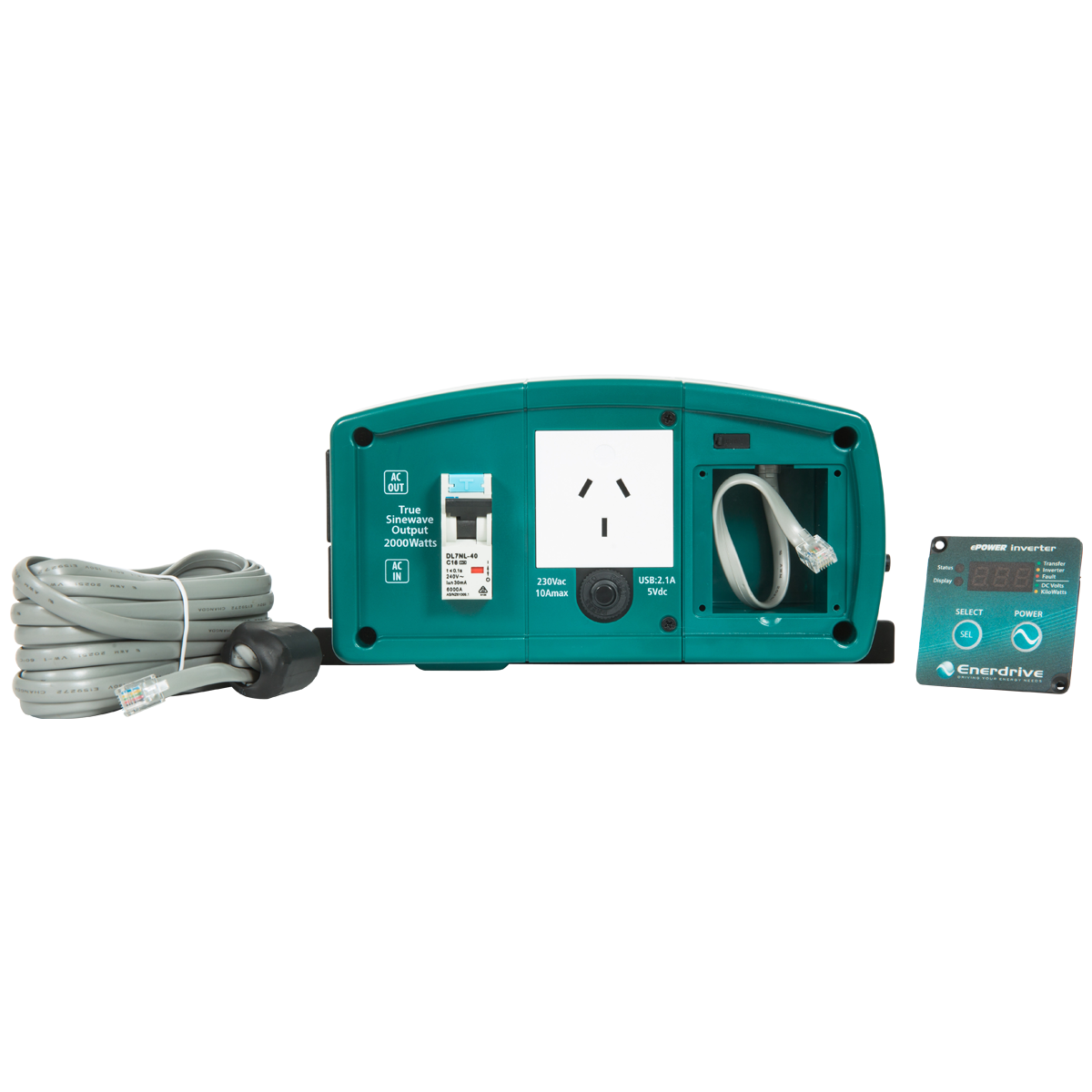

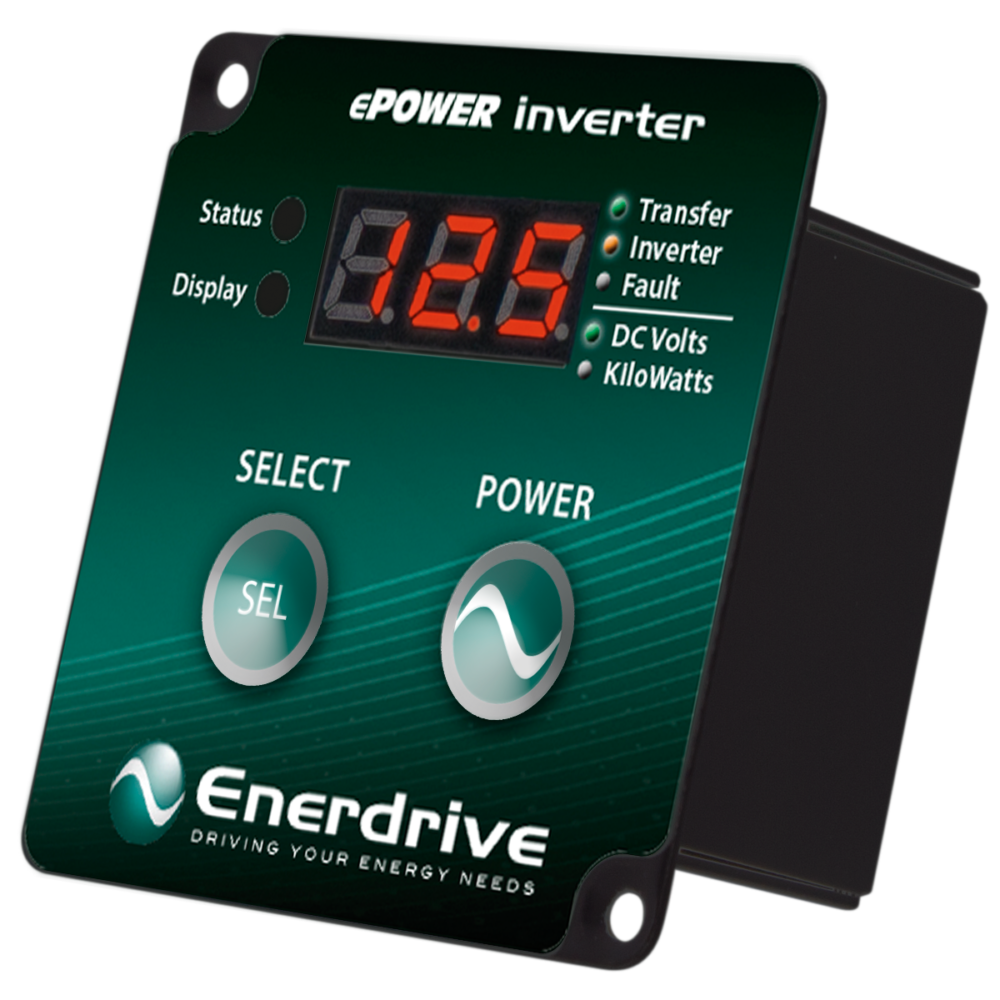

- Removable LED Remote Control Display Panel
- Regulated Pure Sine Wave Output
- Silent Operation
- Compact Size for Easy Installation
- USB Port for charging USB devices
- 7.5 Meter Remote Control Cable
| Model – Description | ePOWER 2600W w/ACT & SS |
|---|---|
| Part Number | EN1226S-X |
| AC Output Power | 2000W |
| AC Output Current | 8.7A |
| AC Surge Power (Peak) | 4000W |
| AC Output Voltage | 230 Vac / 50 Hz |
| AC Output Waveform | True Sinewave |
| AC Output Socket | 1 outlet |
| Nominal DC Input Voltage | 12.5v |
| No Load battery draw | < 1.5A |
| DC Input Voltage operating range | 10.5 - 15.5v |
| Under Voltage Alarm | 11.0 - 12.1v |
| Under Voltage Alarm Recovery | 11.3 - 12.3v |
| Under Voltage Shutdown | 10.5 - 11.8v |
| Under Voltage Recovery | 12.0 - 12.6v |
| Over Voltage Shutdown | 15.5v |
| USB | 5v, 2.1A |
| AC Transfer Switch Transfer Time | < 30 ms |
| Transfer Relay Rating | 16A (resistive load) |
| AC Input socket IEC-C20 | 16A max |
| AC Output socket IEC-C19 | 16A max |
| AC Output Front GPO | 10A max |
| Conformance | All required Australian Standards , CE LVD: EN/IEC 62040-1, IEC61558-2-16 |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 5-90% noncondensing |
| Dimensions (W x L x H) | 230 x 435 x 115mm |
| Weight | 5.9Kg |
| Warranty | 5 Years |
| SKU | IEN122600ACT |
| Barcode # | EN1226S-X |
| Brand | Enerdrive |
| Shipping Weight | 8.8000kg |
| Shipping Width | 0.600m |
| Shipping Height | 0.200m |
| Shipping Length | 0.310m |
| Shipping Cubic | 0.037200000m3 |
