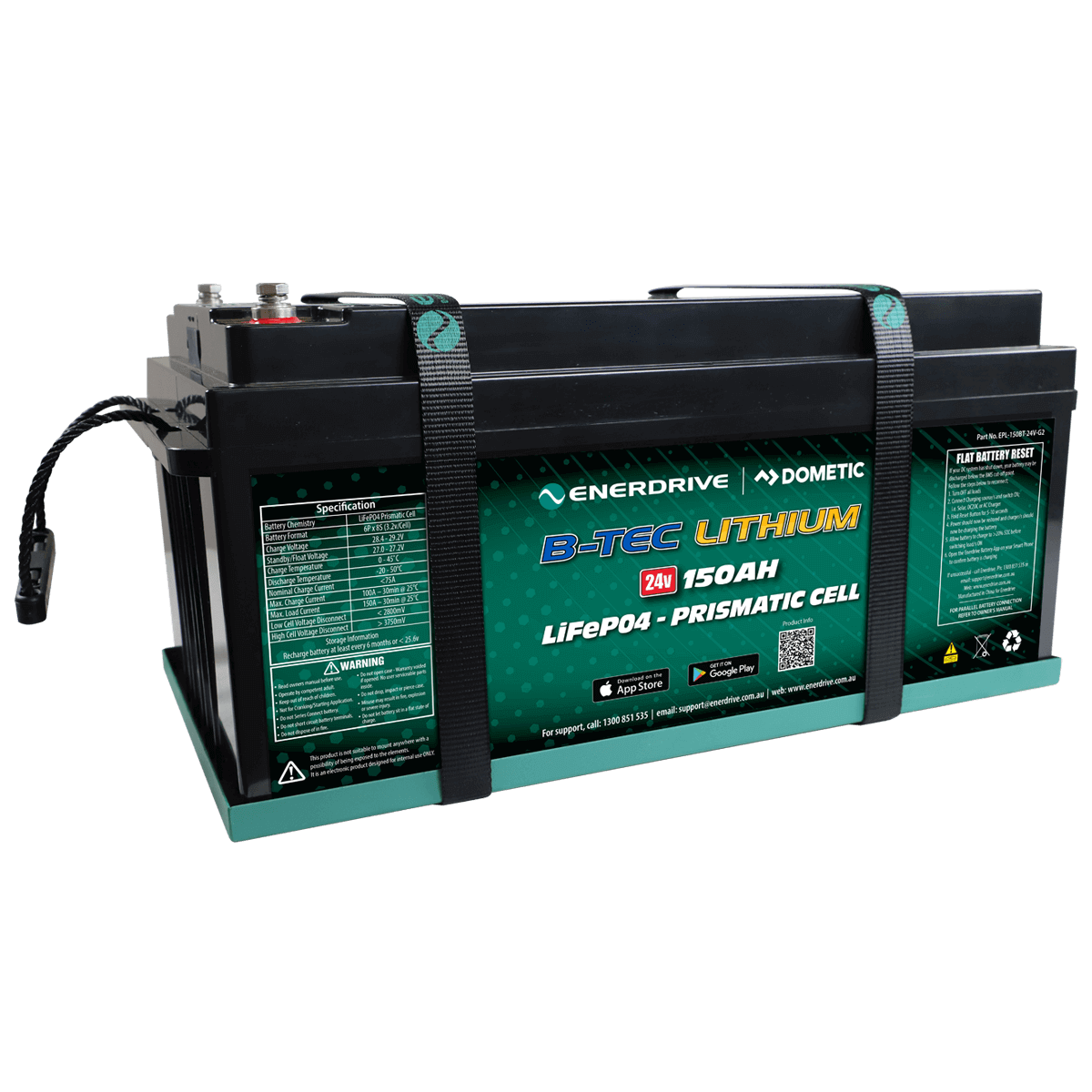

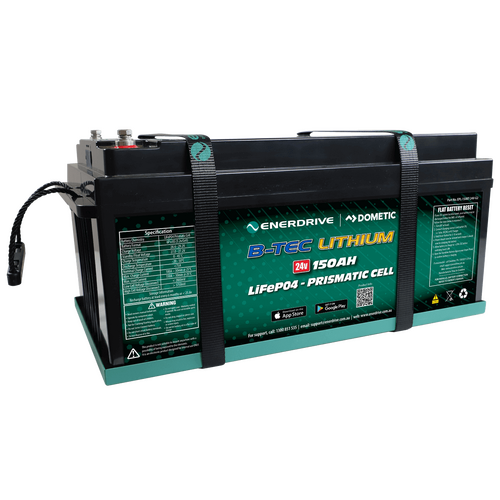

Enerdrive B-TEC LiFeP04 24v 150Ah Lithium Battery
Enerdrive B-TEC LiFeP04 24v 150Ah Lithium Battery
Available in 12v 100Ah, 125Ah, 200Ah and 300Ah capacities and 24v 150Ah & 36v 100Ah, the ePOWER B-TEC lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.
The Enerdrive B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.
The Enerdrive B-TEC Slimline battery is perfect for camper trailers, 4WD's (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

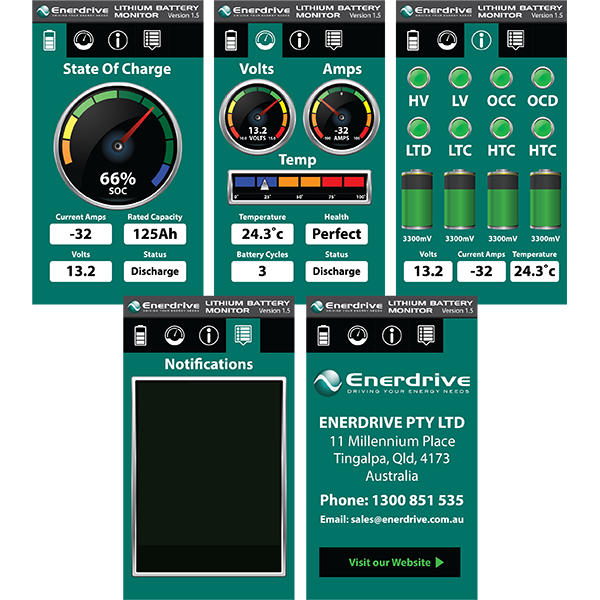

The Enerdrive Enerdrive B-TEC Slimline battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;
- Battery Capacity
- Battery Voltage
- Battery Current (Amps)
- Battery State of Charge (SOC)
- Battery State of Health (SOH)
- Battery Status
- Individual Cell Voltage
- Battery Temperature
- Battery Cycles
- Battery Alarms
- Battery Event Information
Model | EPL-150BT-24V G2 |
---|---|
Nominal Voltage | 25.6v |
Nominal Capacity | 150Ah |
Battery Output Voltage Range | 22.00 - 29.20V |
Maximum Discharge Current | 150A@25°C ± 5°C for 30mins |
Standby (Float) Voltage | 27.00 - 27.60V |
Normal Charge Voltage | 28.80 - 29.20v |
Maximum Charge Current | 100A @ 25°C for 30mins |
Recommended Charge Current for Maximum Life | 30A-75A |
Cycle Life (DOD – 80% under controlled conditions) | ≥ 2000 Cycles |
Length (mm) | 521mm |
Width (mm) | 280mm |
Height (mm) | 238mm |
Weight (kg) | 38.2kg |
Self-discharge Rate | ≤ 3% Per Month |
Please Note; The B-TEC Slimline battery is capable to be paralleled to a second B-TEC battery of the same size. For maximum performance and lifespan of your B-TEC Slimline battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.
The 100Ah Slimline battery is able to accept a maximum inverter capacity of 3500W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.
Please note B-TEC batteries must not be installed:
• In vehicle engine bays or in high heat environments, refer to Section 10 – Battery Specifications of the manual.
• In wet areas such as caravan chassis mounts, open ute trays or boat deck areas.
• Inside compartments dedicated to carrying gas.
This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY.
SKU | BATBTEC24150 |
Barcode # | EPL-150BT-24V G2 |
Brand | Enerdrive |
Shipping Weight | 40.0000kg |
