Deutsch DT Series connectors offer field proven reliability and rugged quality.

The DT design strengths include optional flange mounting, multi-pin arrangements, lower cost, and design flexibility.

The DT Series offers the designer the ability to use multiple size 16 contacts, each with 13 amp continuous capacity, within a single shell.

Features:

  • Accepts contact size 16 (13 amps)
  • 14-20 AWG
  • 2, 3, 4, 6, 8, and 12 cavity arrangements
  • In-line, flange, or PCB mount
  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedgelocks assure contact alignment and retention
  • Grommet: Silicone rubber
  • Insert Retainer: Thermoplastic
  • Receptacle Interfacial Seal: Silicone rubber
  • Shell: Thermoplastic
  • Wedgelocks: Thermoplastic
Max. Cable Diameter (mm) Max. Cable Diameter (AWG) Max. Amperage Rating*
1.5 - 2.0 mm² 16 - 14 AWG 10.1 - 20.0A

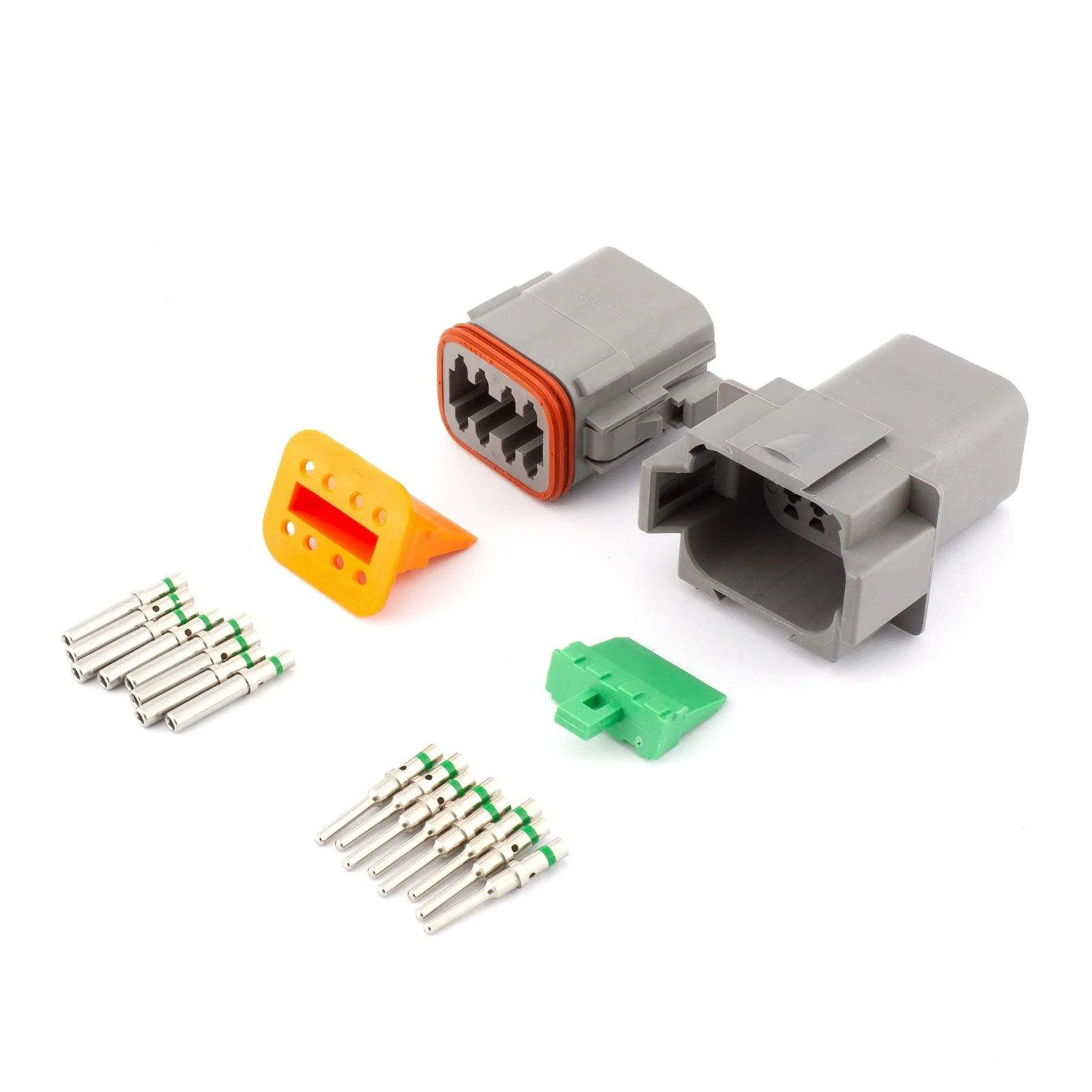

This complete Deutsch 8 way kit contains:
  • 1 x DT04-08PA Receptacle
  • 1 x DT06-08SA Plug
  • 1 x W8P Receptacle Wedge
  • 1 x W8S Plug Wedge
  • 8 x 0460-215-16141 Pin Contacts
  • 8 x 0462-209-16141 Socket Contacts

*Amperage rating dependent on cable used

SKU DT8
Barcode # DT8
Brand TE Connectivity
Shipping Weight 0.0400kg
Shipping Width 0.115m
Shipping Height 0.035m
Shipping Length 0.065m
Shipping Cubic 0.000261625m3
