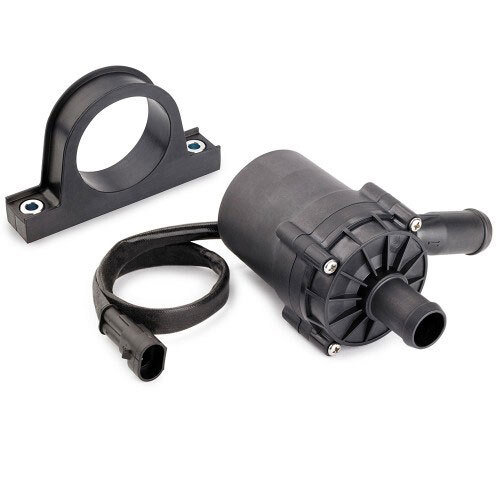

The EBP®40 is a ‘brushless’ 12 volt, high flow (35 litres / 9 gallons per minute), magnetically driven water pump. The EBP® motor has no brushes to ever wear out and the pump is magnetically driven by the motor, which means that no shaft sealing is required. The many EBP® applications include: booster for car heater and LPG systems, solar pump applications, water cooled motorcycle, go-kart engines, turbo air / water intercoolers & household irrigation.

The EBP®40 is designed to complement your existing Davies, Craig EWP (Electric Water Pump), or belt-driven mechanical water pump, or improve your heater and/or cooling system or assist engine block cooling circulation. The EBP can continually circulate coolant around the engine head, block and by-pass. It has a high flow capacity and has the advantage of running at a speed independent of the engine speed. The EBP® can also be set to continue running with a timer or thermal switch (not supplied) after engine shut down to prevent damaging heat soak.

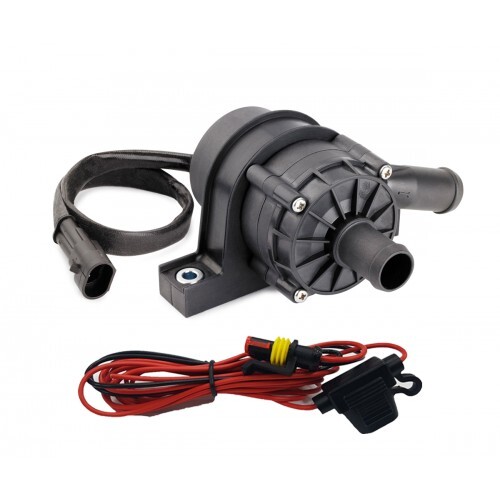

Kit Includes:

  • Electric Booster Pump EB40
  • Wiring Loom (AMP Plug)
  • Installation Instructions
Operating Voltage 6-15V DC
Maximum Current 4.6 Amps
Motor Type Magnetic Drive Brushless
Max Flow Rate 35L/min (9.2GPM)
Rated Flow Rate @ 10 kPa 33L/min (8.7 GPM)
Maximum Head Pressure 0.85 Bar (12.32PSI)
Maximum Head Height 8.5m (27ft 10.65in)
Fluid Temperatures -40°C to 120°C (-40°F to 248°
Body Material Polyphenylene Sulphide (PPS) & Nylon 66
Burst Pressure 252kPa (38PSI)
Inlet & Outlet Push on Barb
Hose Fitment Standard 19mm (3/4")



SKU PUDC1240
Barcode # 9040
Brand Davies Craig
Shipping Weight 0.8800kg
Shipping Width 0.160m
Shipping Height 0.080m
Shipping Length 0.125m
Shipping Cubic 0.001600000m3
