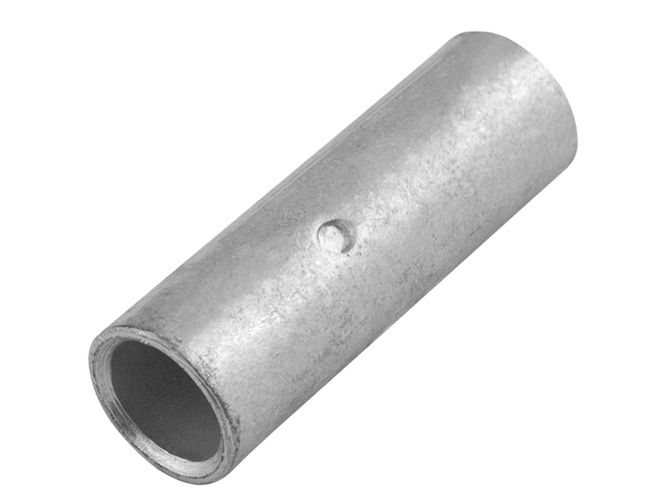

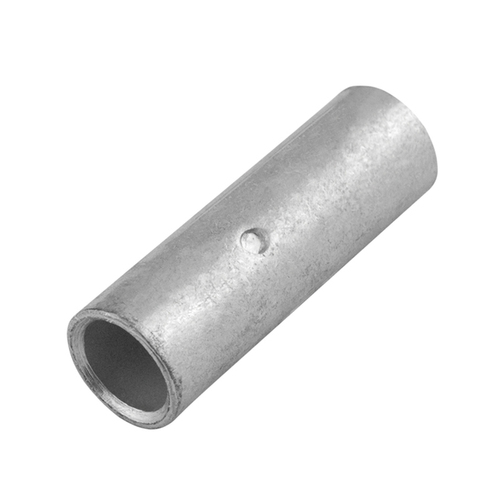

The Copper Tube terminals, or Lugs., are available in sizes ranging from 4mm2 to 300mm2 and the copper tube, or butt / joiner, splices for mechanical cable jointing come in sizes from 6mm2 to 300mm2.

The cable splices can be insulated using heat-shrink tubing.

Heavy duty copper tube lugs are made to the highest specification and Electro Tinned finished.

Only the highest grade Oxygen Free copper is used, with a conductivity of 99.9% by IACS Standards.

Lugs can either be crimped onto cable using crimping tools or soldered if crimping tools are not accessable. Crimping forms a cold weld bond and will always be superior to Solder, so where posssible its always best to crimp.

  • Suitable for copper conductors
  • Range 1.5-1000mm2
  • Made from high Grade pure 99.9% copper.
  • Electro Tinned coated.
  • Working temperatures -55°C - 155°C due to oxygen-free copper

The products are designed, manufactured, tested and comply with International standards - BS, DIN, UL and IEC.

SKU LUGJ
Brand Cable Jointing Supplies
