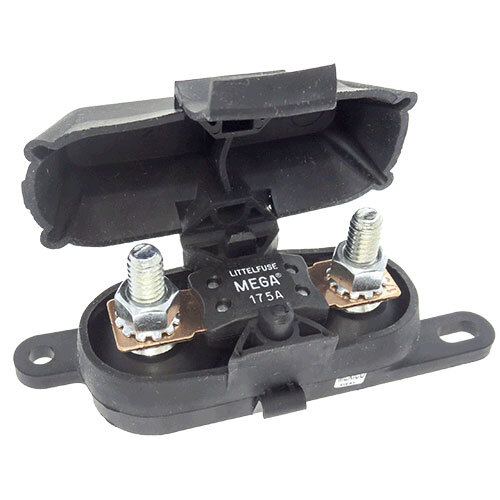

The FMG fuse holder accepts industry standard AMG fuses for primary fusing applications.

The FMG is offered with a tough elastomer cover for fuse protection, yet allows for cable input from various orientations.

Simialr to the HMG holder, the FMG is well suited for demanding environments such as ‘under the hood’ locations in construction, agriculture, heavy trucking and specialty vehicle applications.

Full access for cables. Can be routed to studs from nearly every direction.

Fuses are not included

  • Body: Black UL rated 94V-0 thermoplastic
  • Accessories: Includes cover & sems nuts.
  • Cover: Black thermoplastic elastomerflexible .
  • Options: Red colour cover also available.
  • Features: Cables can be routed to studs from nearly any direction
Maximum Amperage 500A
Maximum Voltage
48V DC
Wire Size
#8 AWG / 8mm²
Fuse Screw
M8 or 5/16-18 threaded, zinc plated steel studs
Ring Terminal Size
M8 (5/16")



SKU FHMEGA
Barcode # FMG-116
Brand Bussmann
Shipping Weight 0.1000kg
Shipping Width 0.120m
Shipping Height 0.050m
Shipping Length 0.045m
Shipping Cubic 0.000270000m3
