AUTO RESET BREAKERS ARE ONLY USED IN BREAK CONTROL SYSTEMS

NOT TO BE USED FOR ELECTRICAL APPLICATIONS

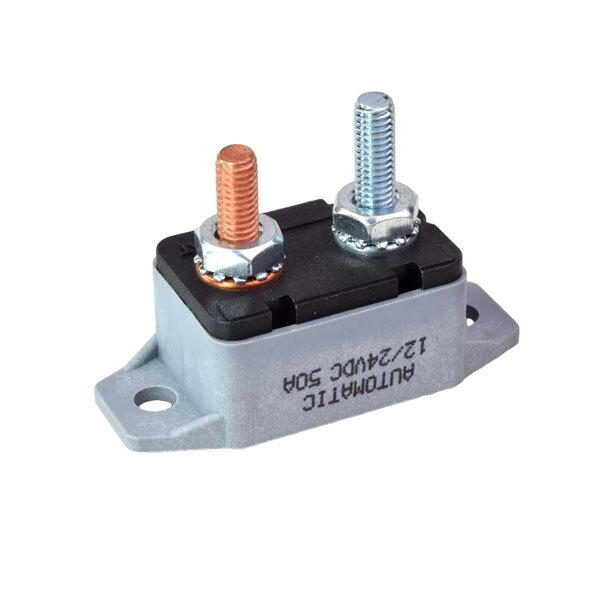

Cooper Bussmann 'Short Stop' Auto Reset Circuit Breakers with parallel mounting bracket. 12 Volt DC Rated - Type 1 auto reset thermal cycling circuit breaker manufactured by Cooper Bussmann. Used in many diverse applications including commercial equipment, trucks, buses, portable generators, welding equipment, and trolling motors. Engineered for durability.

Standard Circuit Breaker Boot covers the standard type automotive circuit breakers. These boots offer protection against short circuits, as well as from dirt, dust, and splash resistance.

  • Applications: Battery chargers, trucks, buses, RVs, trolling motors, etc.
  • Function Options: Auto, Manual or optional Modified Reset Circuit Breakers.
  • I.R.: 2.5kA @ 12VDC (Branch circuit protection), please contact sales for further info.
  • Voltage: 14VDC (121 Series), 28VDC (123 series)
  • Operating Temp: -40°C to 85°C, Storage Temp: -40°C to 125°C
  • Features: Ignition Protected
  • Mounting Hole: Bracket mounting holes 4.98 mm diameter.
  • Notes: Keps lock nuts included with circuit breakers.
  • Approvals: SAE J553, J1171
Maximum Voltage
14V DC
Circuit Breaker Type
Thermal trip, auto reset
Terminal Stud
#10-32 (M5)
Terminal Stud Torque
20 in-lb (2.26 Nm)
Interrupt Capacity
2500A @ 28V DC
Operating Temperature
-40°C to 85°C
Weight
0.06lb (0.03 kg)



SKU CBAB
Brand Bussmann
Shipping Weight 0.0100kg
Shipping Width 0.050m
Shipping Height 0.035m
Shipping Length 0.020m
Shipping Cubic 0.000035000m3
