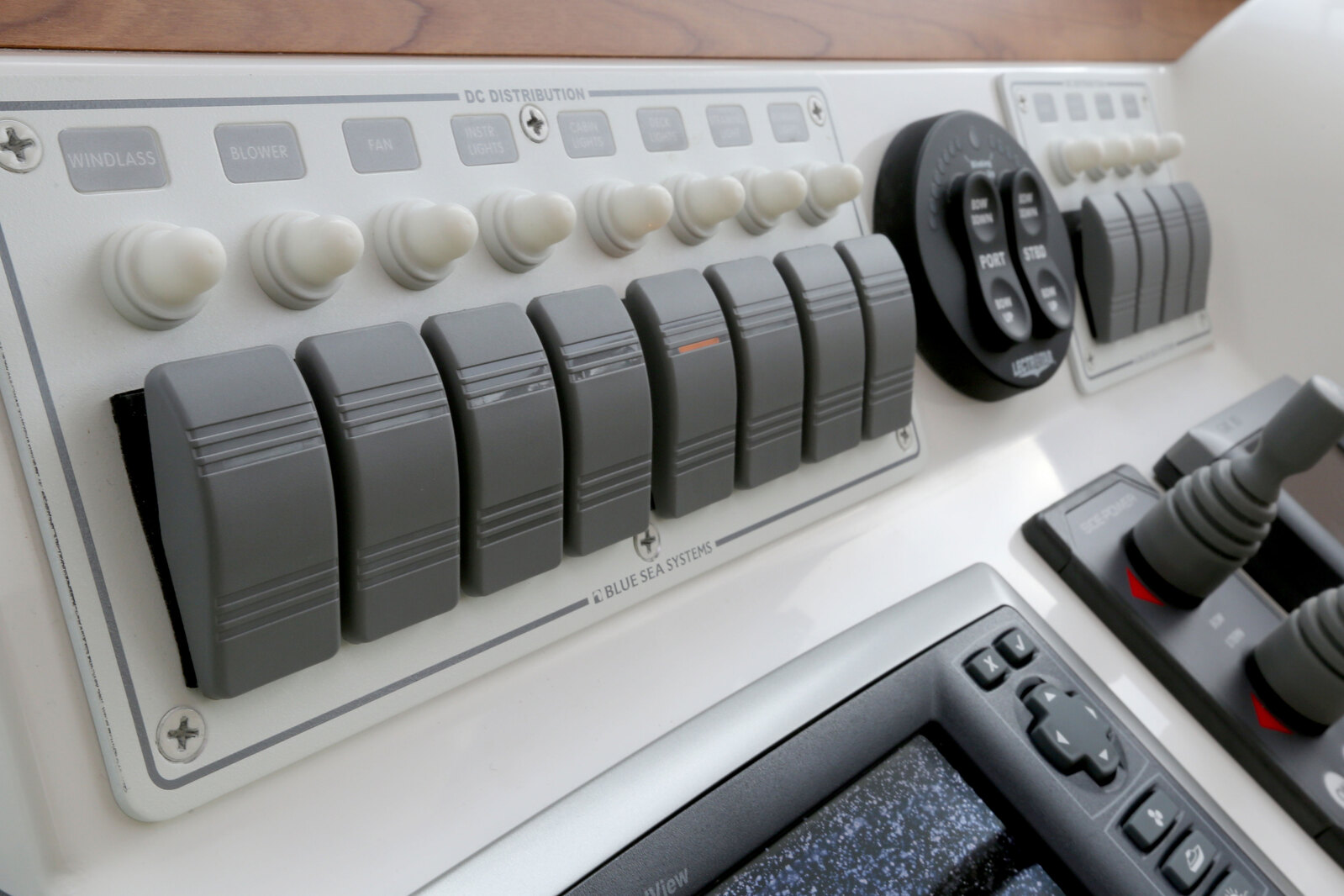

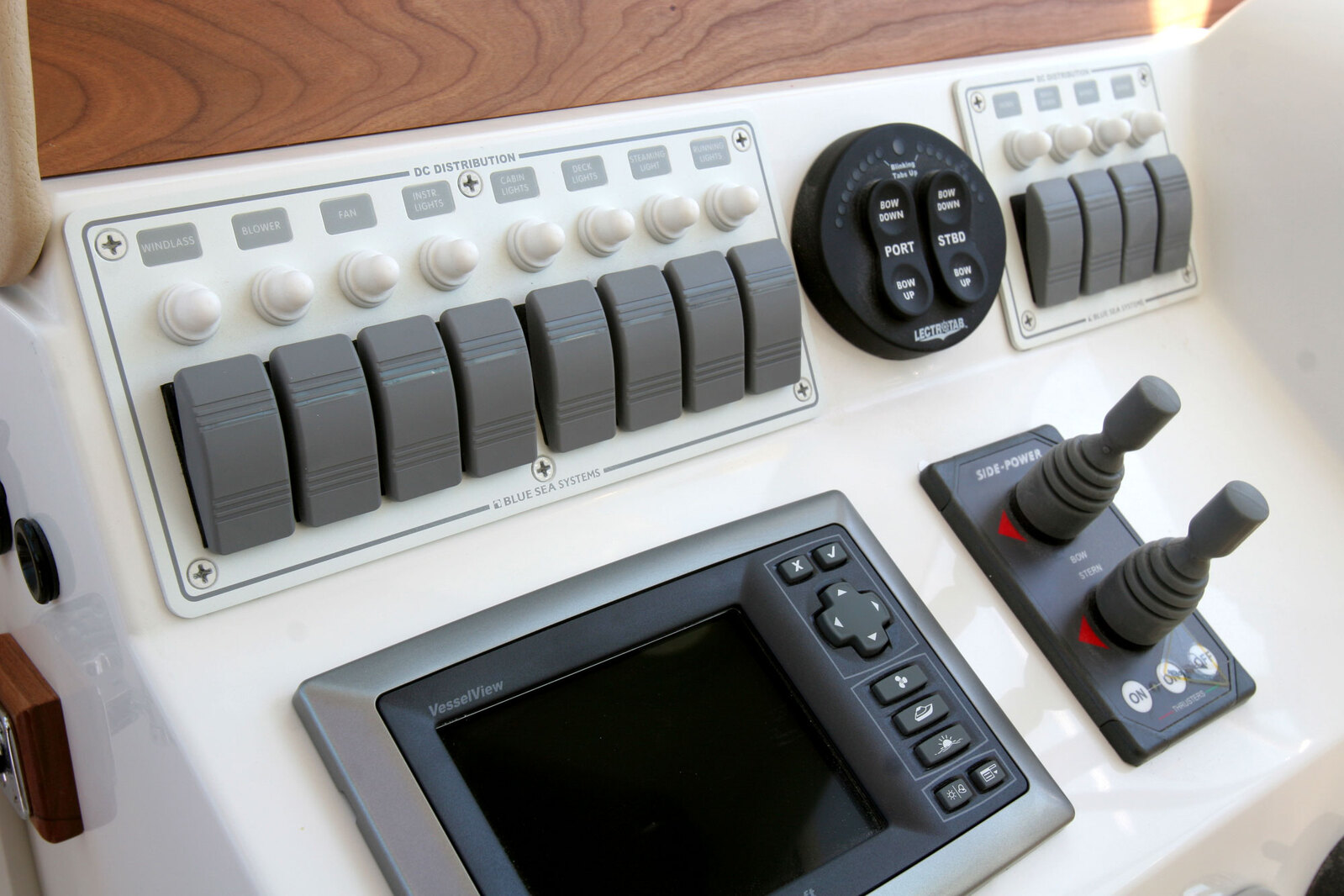

• Designed for flybridge and open cockpit applications
  • Panel front is rated IP66—Protected against powerful water jets
  • Ignition protected—safe for installation aboard gasoline powered boats
  • ON-OFF Contura Switches
  • ON indicating LEDs embedded in switch
  • Watertight mounting gasket
  • Push Button Reset-Only circuit breakers with waterproof boots
Weatherproof* Water Resistant
Positions 8
Nominal Voltage 12V DC
24V DC
Panel Cumulative Rating 90A
Switch Rating 20A @ 12V DC
15A @ 24V DC
Height 4.25in (107.95 mm)
Width 9.37in (238 mm)
Depth 3.25in (82.55 mm)
Weight 1.75lb (0.79 kg)



















*Constructed or Protected so that exposure to the weather will not interfere with successfull operation in Rain, Spray or Splash

SKU 632085082710
Barcode # 8271-BSS
Brand Blue Sea Systems
Shipping Weight 0.7900kg
Shipping Width 0.300m
Shipping Height 0.130m
Shipping Length 0.225m
Shipping Cubic 0.008775000m3
