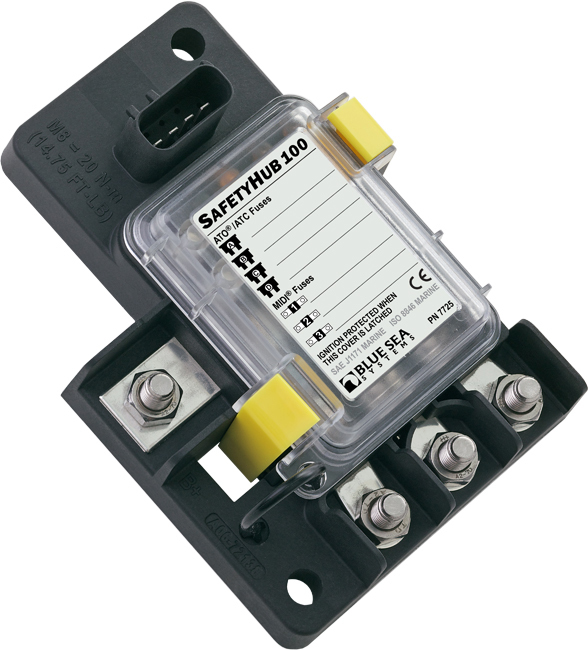

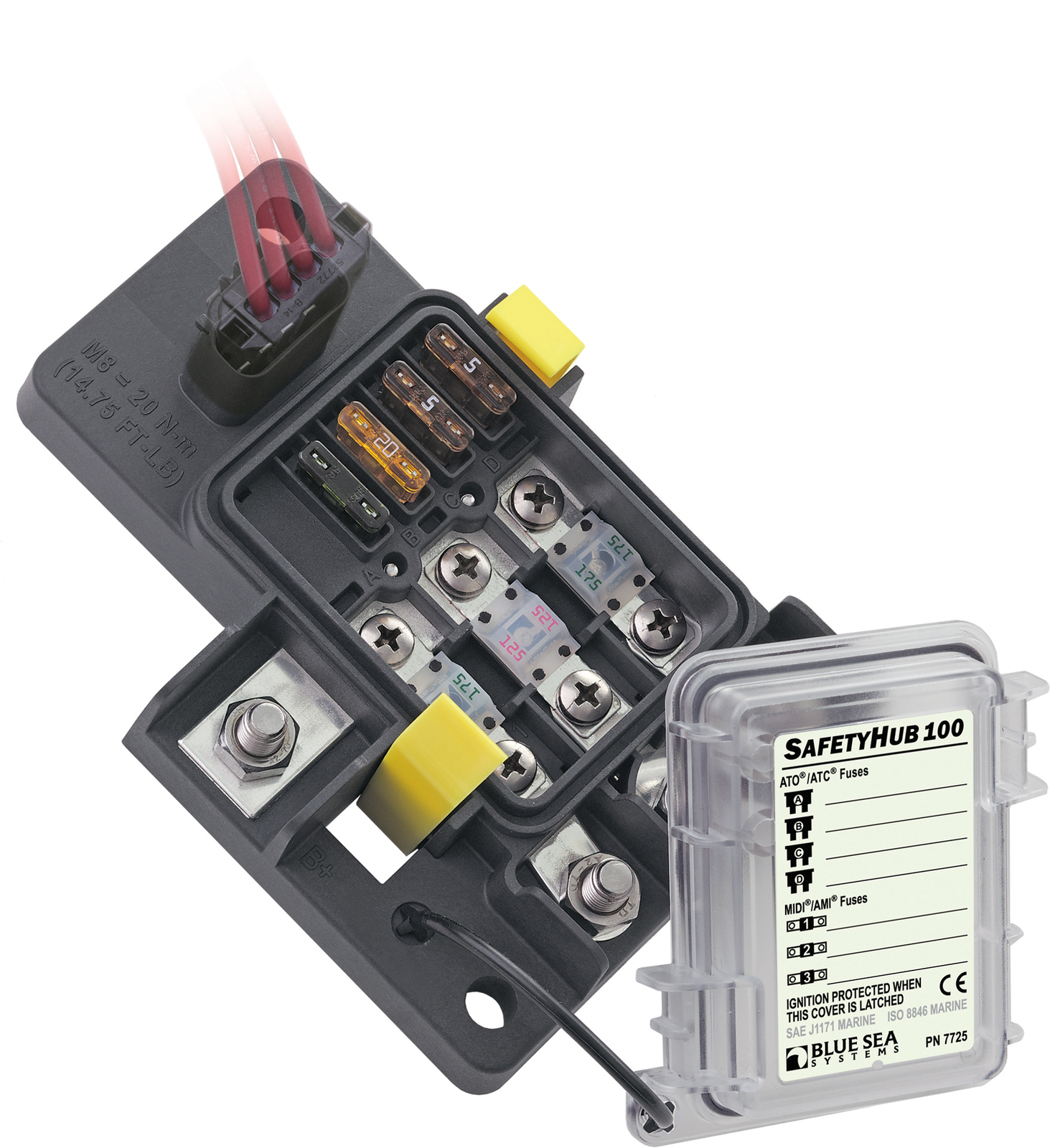

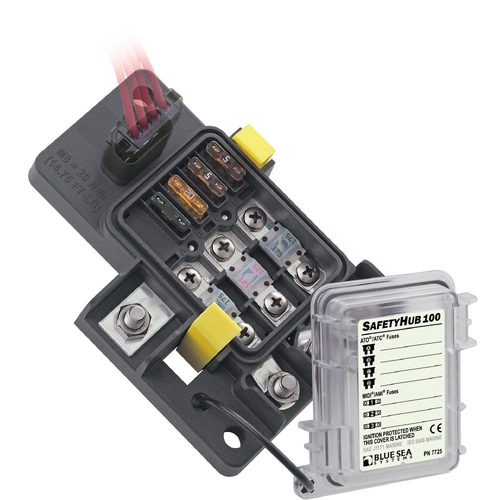

The SafetyHub 100 combines an ignition protected fuse block and an integrated connecting plug. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates up to seven fused circuits.

  • Three 30A−200A MIDI®/AMI® fuses [sold separately] ideal for high-amp circuits including panel feeds, windlasses, and stereo amplifiers
  • Four 1A−20A  ATO®/ATC® fuses  [sold separately] ideal for circuits including bilge pumps, alarms, and clock memory
  • Sealed cover protects fuses from the harsh marine environment: IP66 rating—protected against powerful
    water jets
  • Integrated connector plugs eliminate loose wires and provide a secure, waterproof connection
  • Ignition protected fusing meets Coast Guard and ABYC requirements for installation on gasoline or diesel powered boats
Circuits 7
Operating Voltage 32V DC
Amperage Maximum Operating - combined 280A
Stud Size M8 x 1.25
Recommended Ring Terminal M8 (5/16")
Screw Torque, 8-32 18in-lb (2.03 Nm)
Screw Torque, M5 27in-lb (3.05 Nm)
Stud Torque 180 in-lb (20.34 Nm)
Weight 3.20lb (1.45 kg)



SKU 632085077259
Barcode # 7725-BSS
Brand Blue Sea Systems
Shipping Weight 0.5500kg
Shipping Width 0.290m
Shipping Height 0.095m
Shipping Length 0.170m
Shipping Cubic 0.004683500m3
