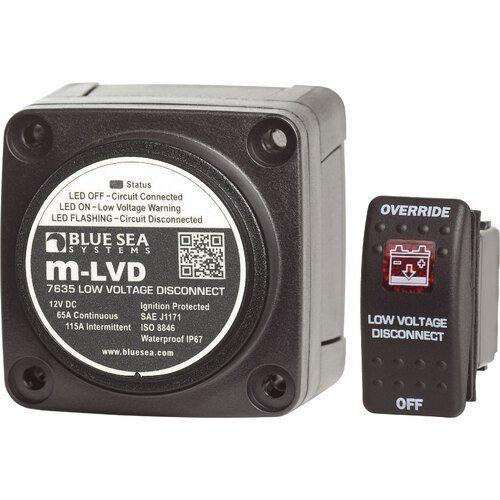

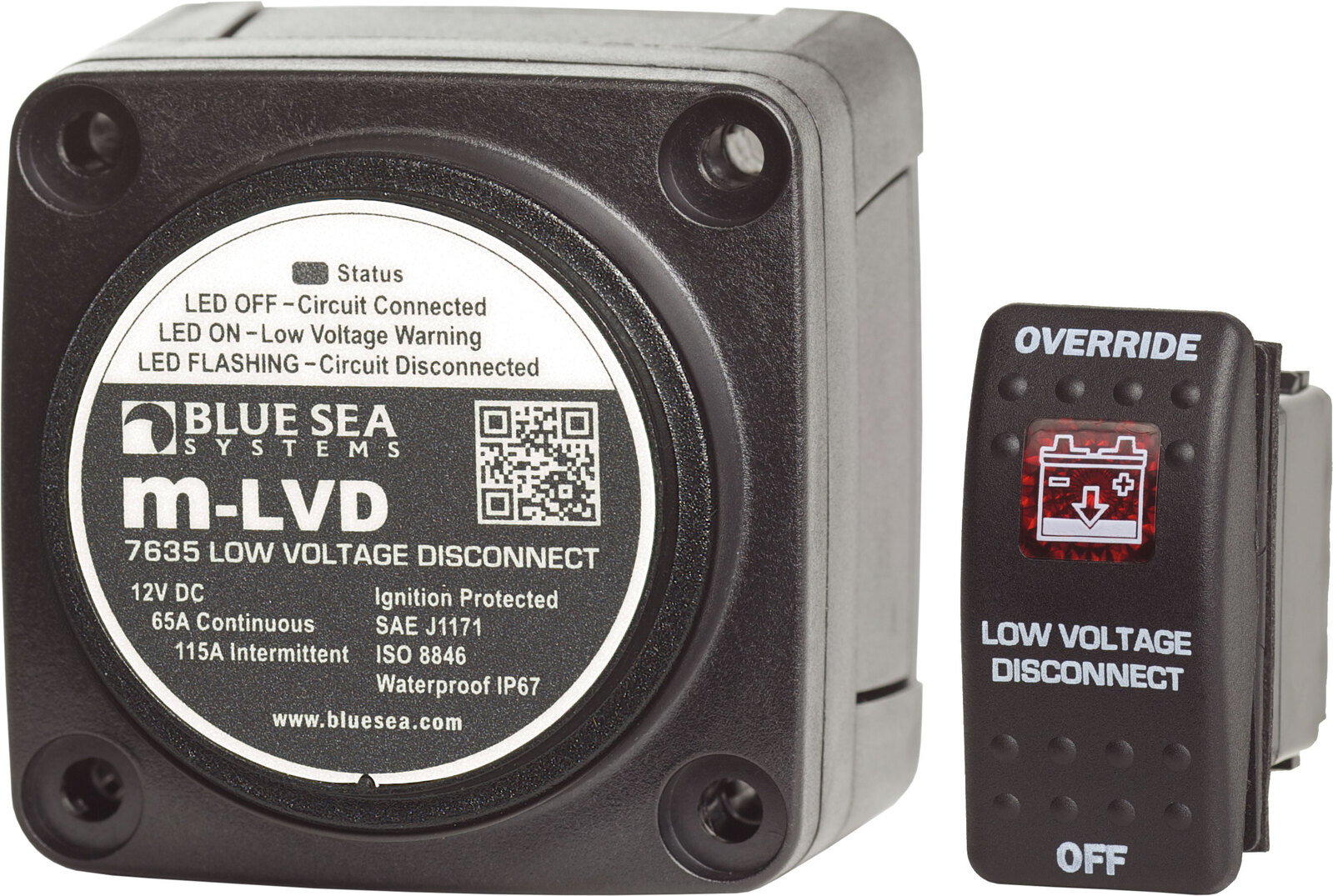

Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery life
A dead battery is one of the most common reasons for a tow. Don't get stranded with a dead battery. The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery.


  • Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect
  • Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required)
  • Remote Control Switch Functions:
    • Disconnect Voltage Adjustment - Sets desired disconnect voltage
    • Override - Temporarily delays circuit disconnect for 10 minutes
    • OFF - Temporarily disconnects circuits until voltage rises
    • Override or OFF - Silences alarm (optional alarm required)

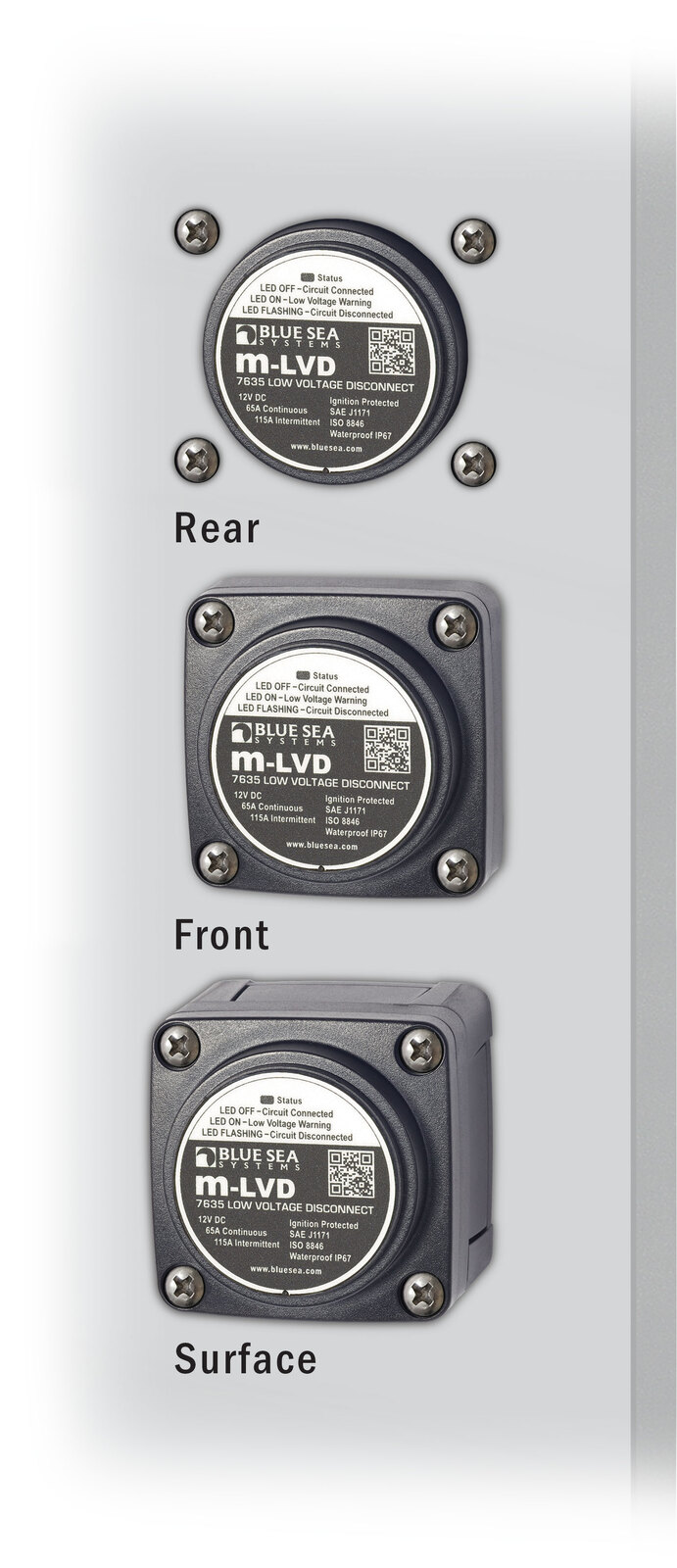

  • Case design allows surface, front panel, or rear panel mounting
  • Rear insulating cover protects rear contacts
  • Waterproof – rated IP67 for temporary immersion
Nominal Voltage 12V DC
Amperage Operating Current 95mA (Connected) / 4mA (Open)
Continuous Rating 65A
Intermittent Rating 115A (5 Min)
Maximum Cable Size 1/0 AWG (50mm2)
Stud Material Tinned Brass
Terminal Stud Length 7/16 in (11.11 mm)
Terminal Stud Size 1/4" - 20 (M6)
Terminal Stud Torque 60 in-lb (6.78 Nm)
Weight 0.77lb (0.35 kg)



SKU 632085076351
Barcode # 7635-BSS
Brand Blue Sea Systems
Shipping Weight 0.4000kg
Shipping Width 0.180m
Shipping Height 0.080m
Shipping Length 0.180m
Shipping Cubic 0.002592000m3
