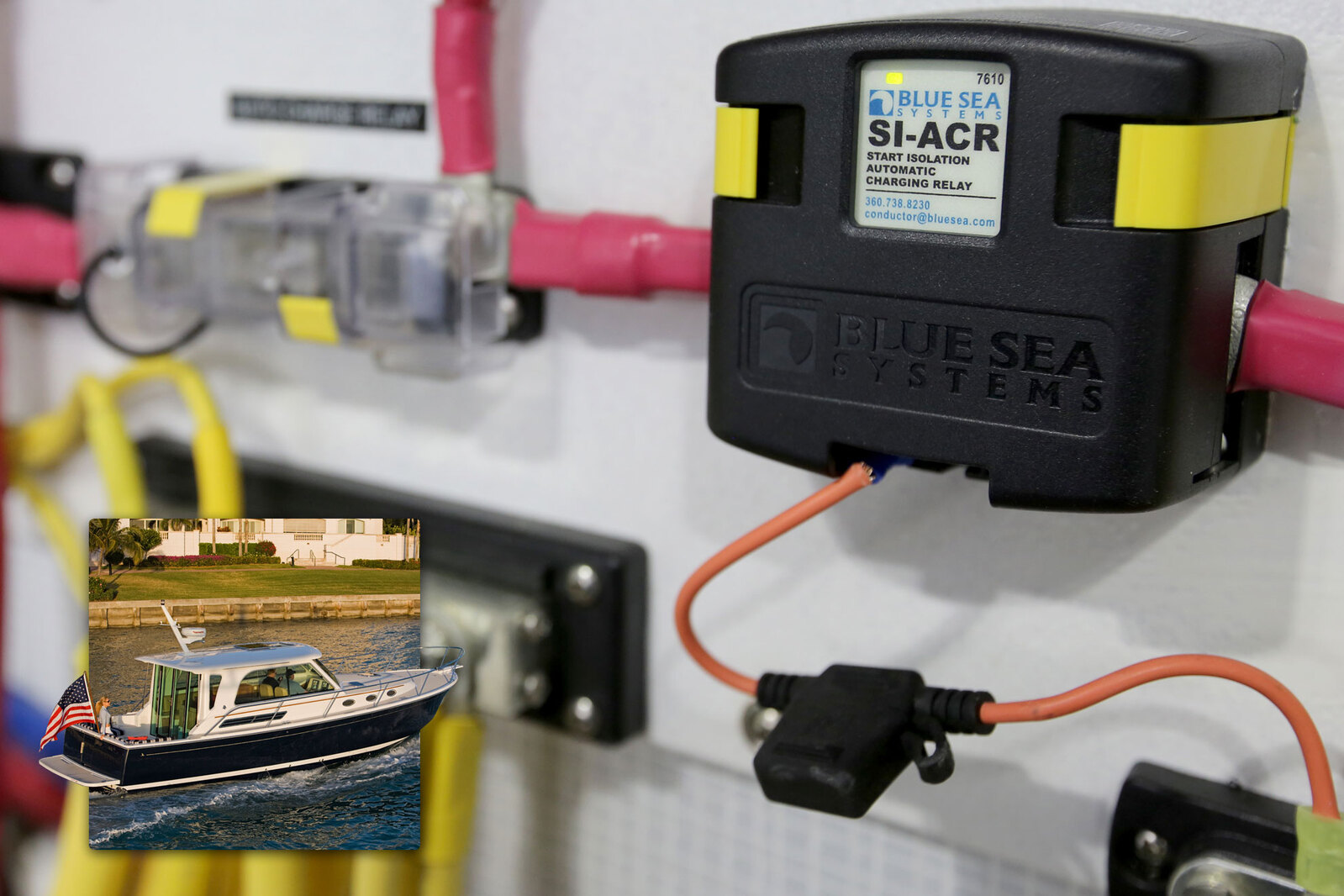

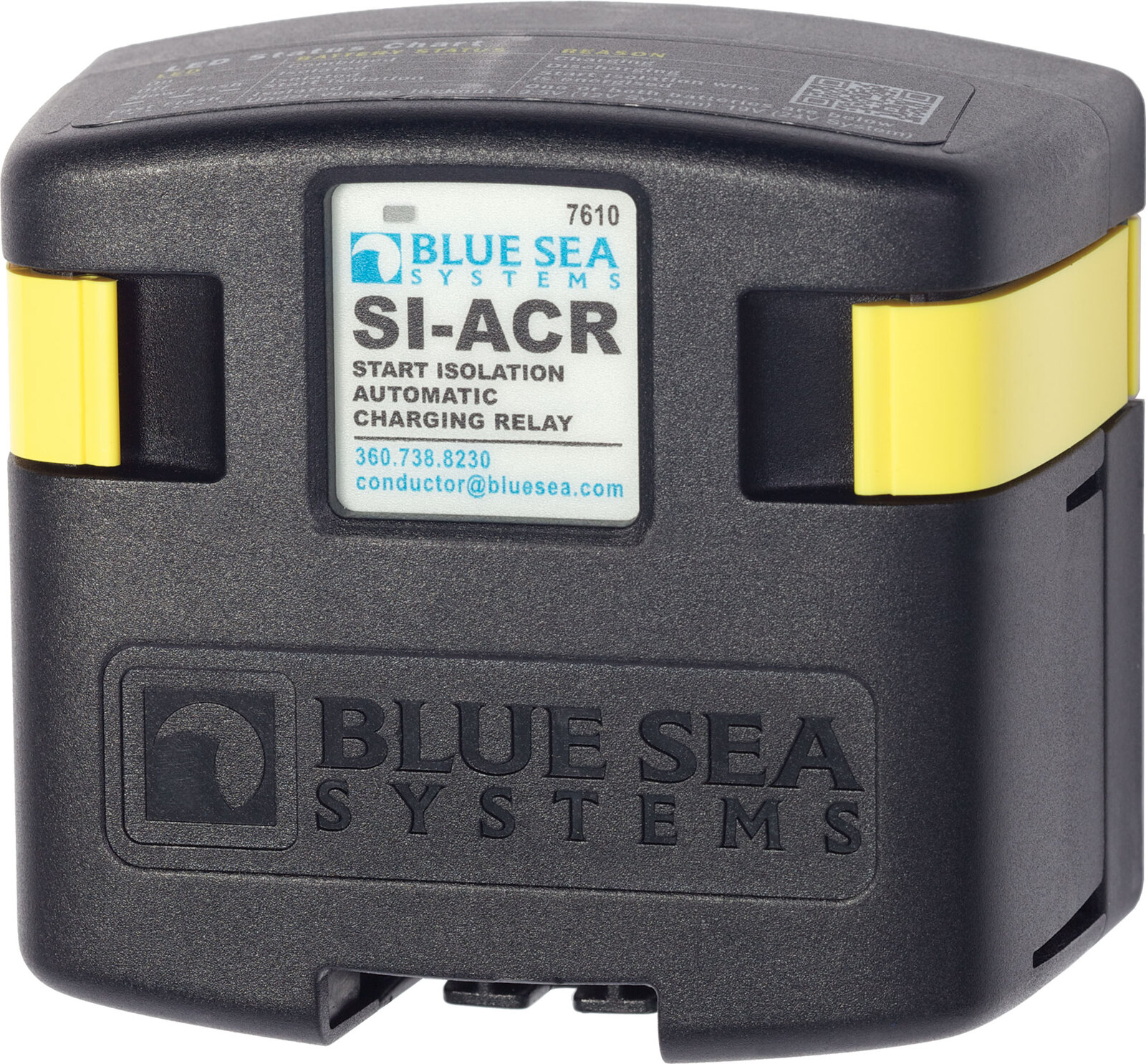

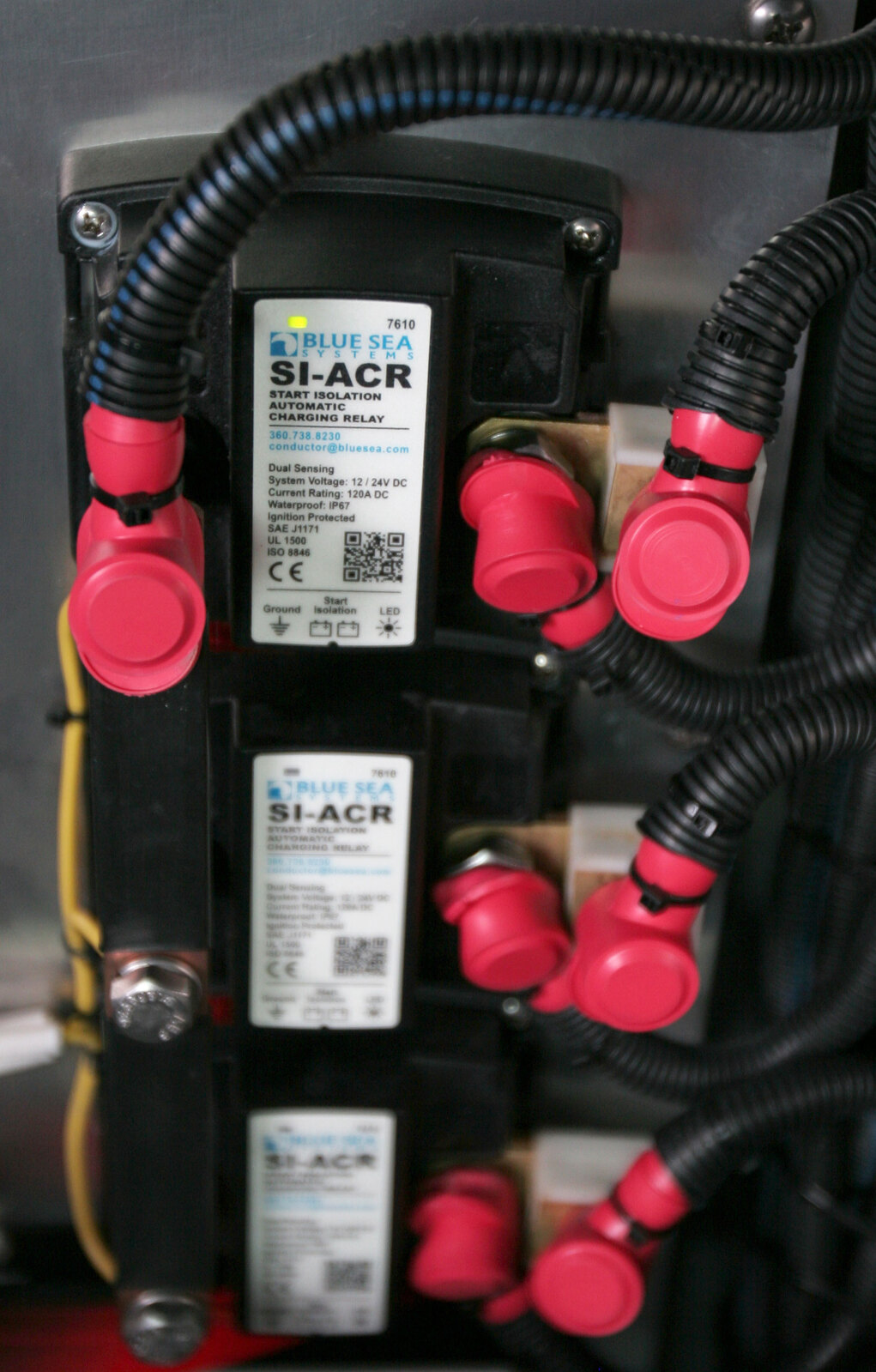

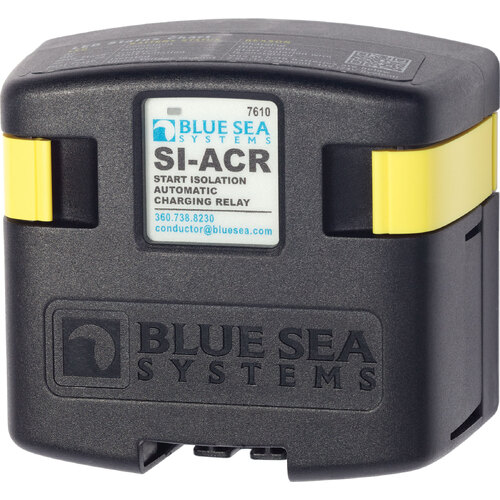

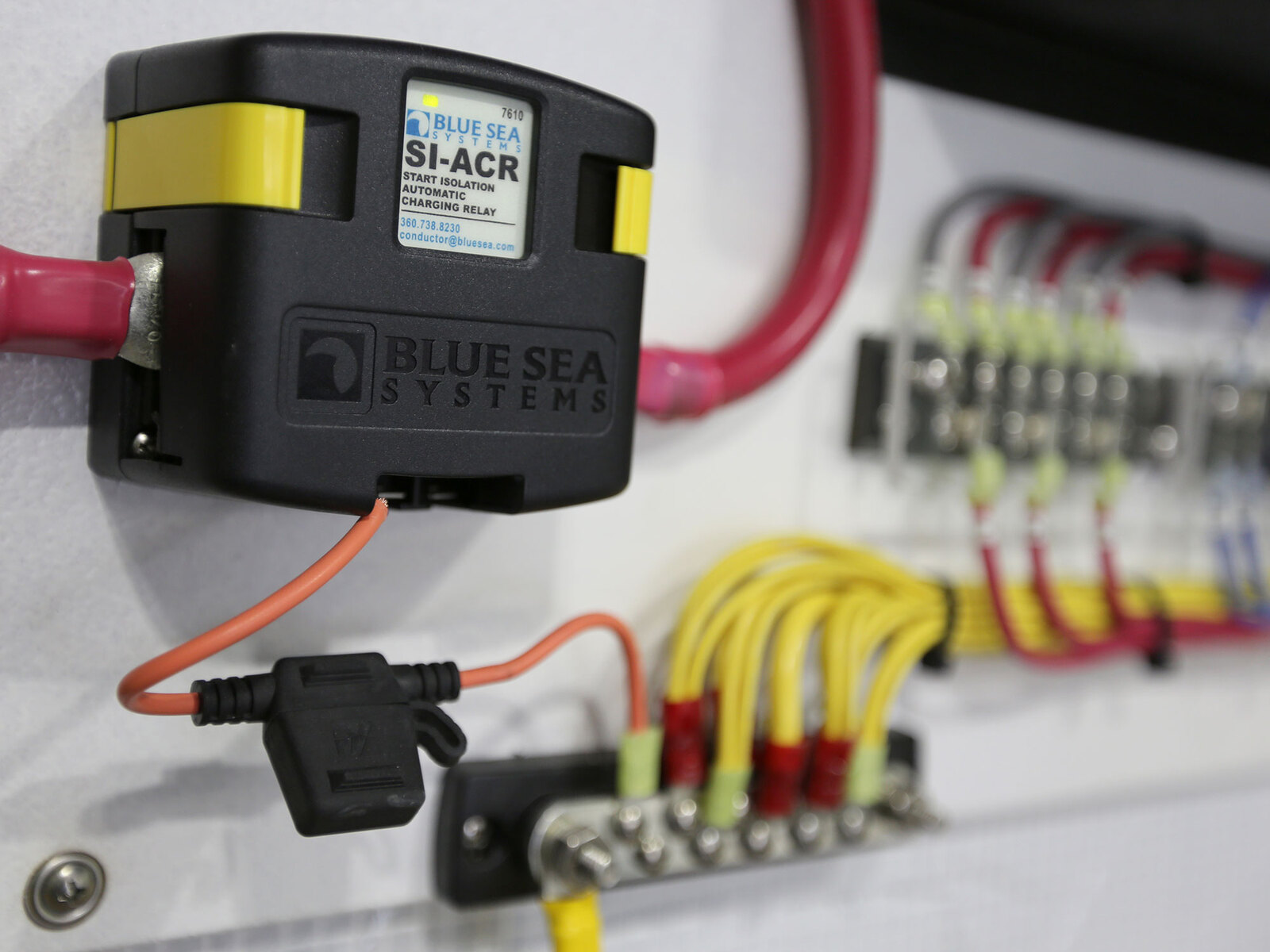

Automatically combines batteries during charging, isolates batteries when discharging and when starting engines
Features

  • Protects sensitive electronics by temporary isolation of house loads from engine circuit during engine cranking
  • Designed for 12 or 24 volt systems
  • 12/24 volt auto ranging voltage input
  • Hermetically sealed contacts/vaporproof
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Supports high-output alternators up to 120 Amperes
  • Dual sensing

Optional Features

  • Start Isolation allows temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics from sags and spikes
  • Remote LED remotely indicates ACR states - requires optional LED
Nominal Voltage 12V DC / 24V DC
Start Isolation (1) Yes
Amperage Operating Current 175mA (Combine) 15mA (Open)
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating (2) 120A
Intermittent Rating (3) 210A (5 min)
Cable Size to Meet Ratings 1/0 AWG
Maximum Cable Size 1/0 AWG
Stud Material Tinned Copper
Terminal Stud Size 3/8" - 16 (M10)
Terminal Stud Length 0.875in (22.23 mm)
Terminal Ring Diameter Clearance 1.12in (28.45 mm)
Relay Contact Position
Combine 30 sec 13.6V @ 12 V / 27.2V @ 24 V
Combine 90 sec 13.6V @ 12 V / 27.2V @ 24 V
Open 10 sec 12.35V @ 12 V / 24.7V @ 24 V
Open 30 sec 12.75V @ 12 V / 25.5V @ 24 V
Open High 16.0V @ 12 V / 30.0V @ 24 V
Over Voltage Lockout 16.0V @ 12V / 32.0V @ 24V
Under Voltage Lockout (4) 9.5V @ 12 V / 19V @ 24 V
Weight 1.25lb (0.57 kg)

1) Condition: Engine starting

  • Relay is open isolating batteries
  • Batteries are isolated to protect sensitive electronics from voltage sags and spikes

2) The maximum current a switch is designed to conduct for an indefinite period.

3) The maximum amount of current a switch is designed to carry for a minimum of a designated period of time.

4)  As a safety feature, some ACR's prevent combining into a severely discharged battery. A dual-sensing ACR will monitor the voltage on both batteries and will not connect if either battery is below the under voltage lockout level. Use caution when combining into a battery with extremely low voltage, because this might represent a faulty battery or a problem elsewhere in the system.

SKU BSS7610B
Barcode # 7610-BSS
Brand Blue Sea Systems
Shipping Weight 0.0600kg
Shipping Width 0.210m
Shipping Height 0.090m
Shipping Length 0.160m
Shipping Cubic 0.003024000m3
