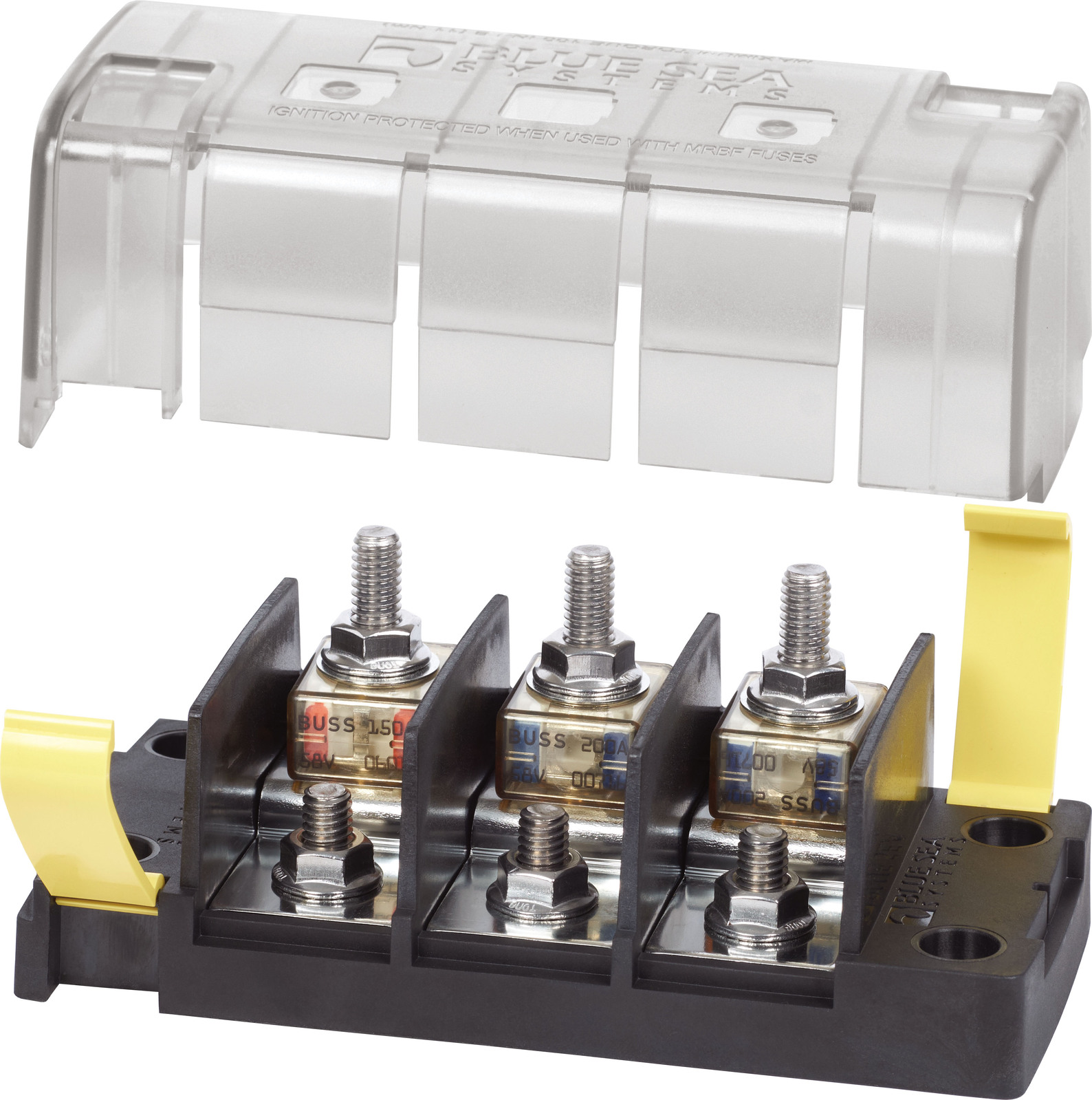

• Accommodates three MRBF fuses for consolidated high amperage circuit protection
  • Ideal for 3 output battery chargers
  • Clip-on insulating cover satisfies ABYC/USCG insulation requirements
  • Versatile wiring options allow all wires to come out a single side
  • Label recesses accommodate Blue Sea Systems Square Format labels for easy circuit identification
  • One-piece stainless flange nuts ensure safe and secure connections
  • Fuses sold separately
Ignition protected* Yes
Maximum Amperage** 300A per Cicuit ***
Maximum Voltage 58V DC
Mounting Surface Mount M5 (#10)
Maximum Torque 100 in-lb (11.3 Nm)
Terminal Stud Size M8 (5/16"-18)
Weight 1.20lb (0.54 kg)













  • *Devices which operate in potentially explosive environments must be ignition protected. This would include Engine rooms with Gasoline Engines. There is a very specific set of tests which a device must pass to claim ignition protection, they include operating safely in an explosive mixture of propane and air.
  • **Maximum Amperage ratings are dependent on use of appropriately sized fuse and cable for given application
  • *** Using a minimum of 3/0 Cable
SKU BSS5194B
Barcode # 5194B-BSS
Brand Blue Sea Systems
Shipping Weight 0.5600kg
Shipping Width 0.080m
Shipping Height 0.070m
Shipping Length 0.160m
Shipping Cubic 0.000896000m3
