The advantage of a resettable circuit breaker over a single use fuse is well known however people find circuit breakers more expensive and difficult to install.

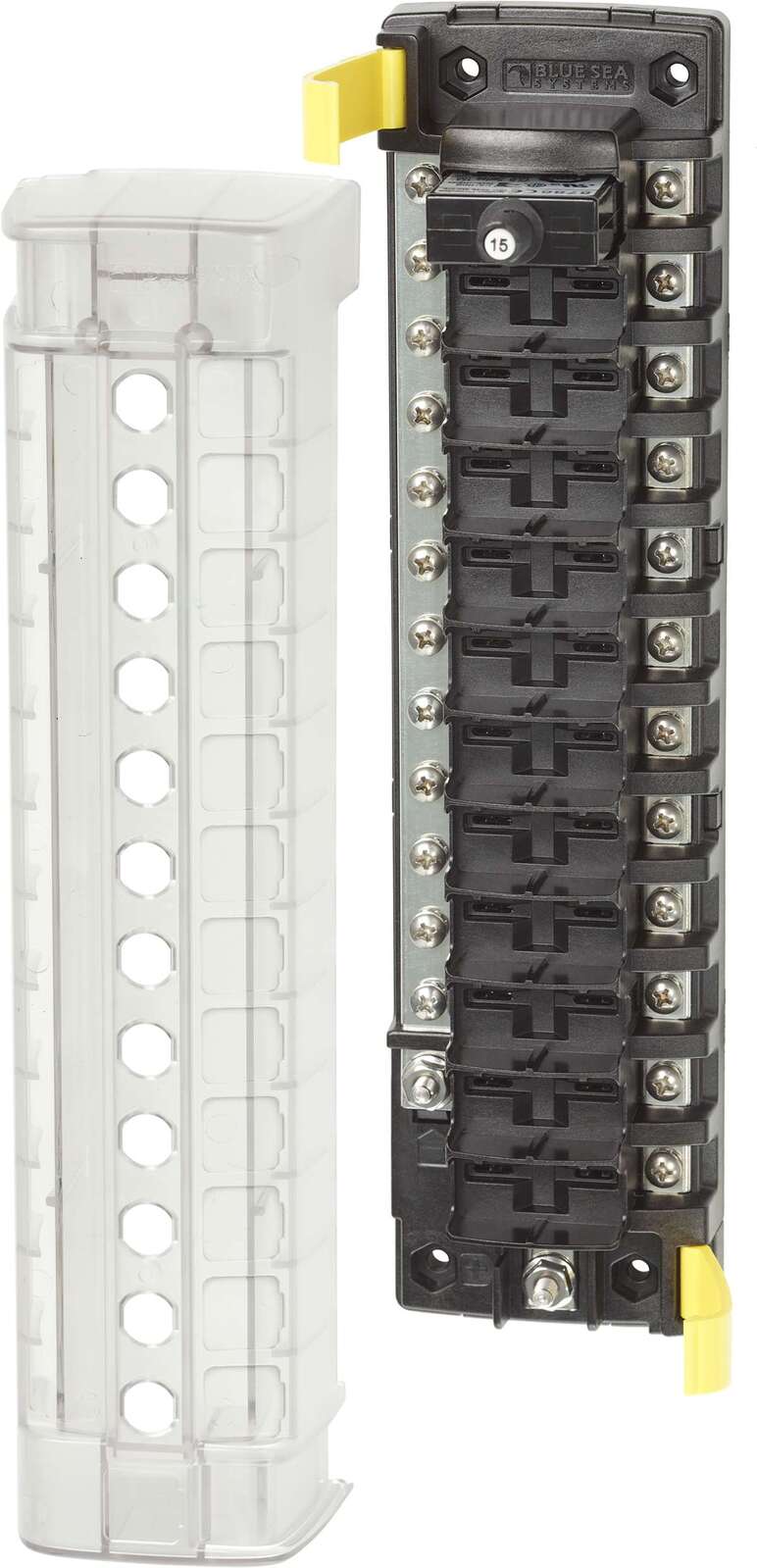

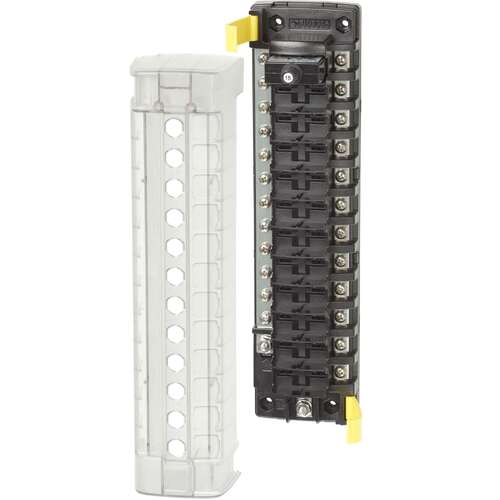

The new ST CLB Circuit Breaker Block uses the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.

The ST CLB block provides flexible resettable protection for 6 to 12 circuits and is available for both common and independent DC source requirements.

Features

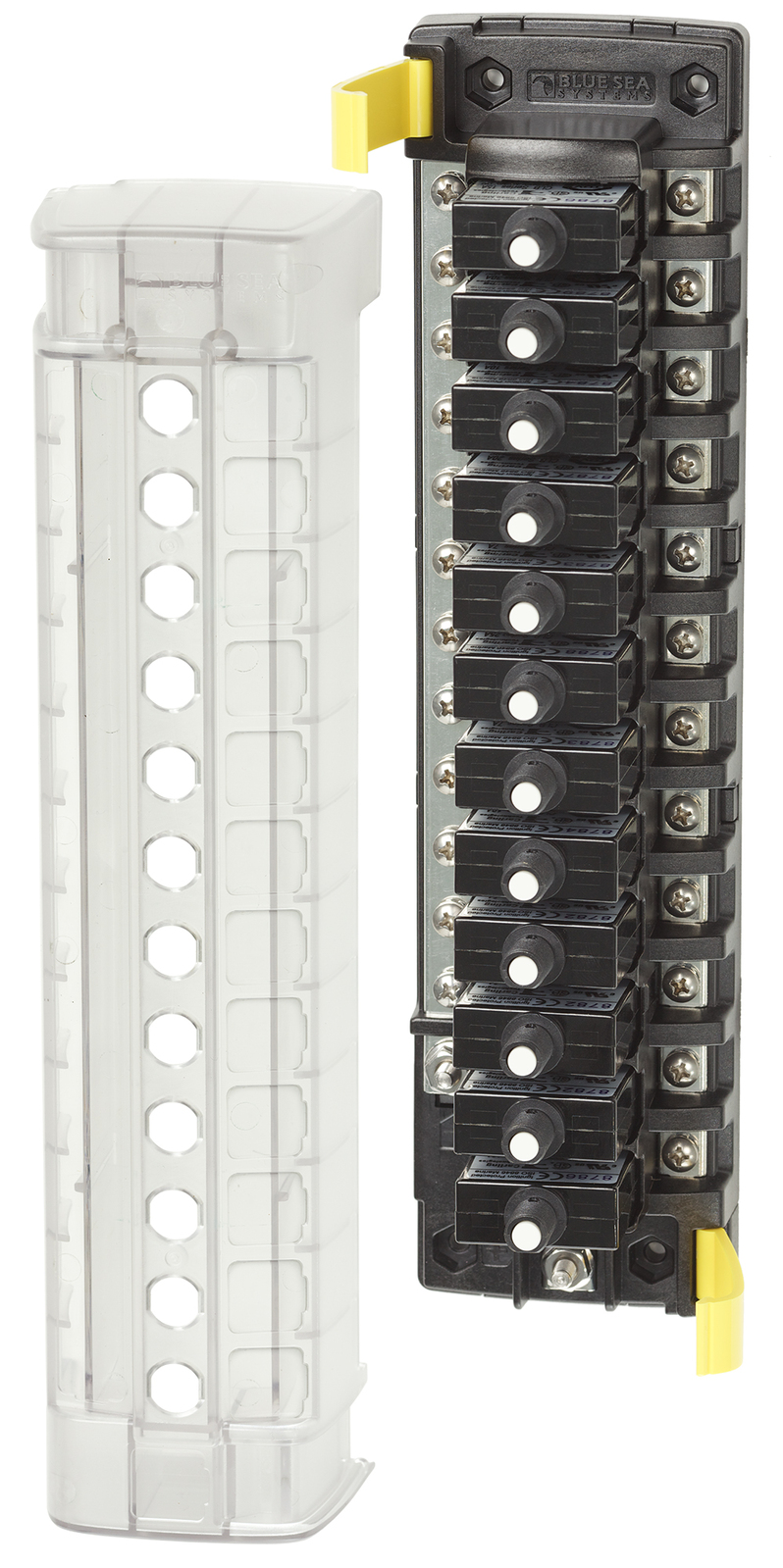

  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals

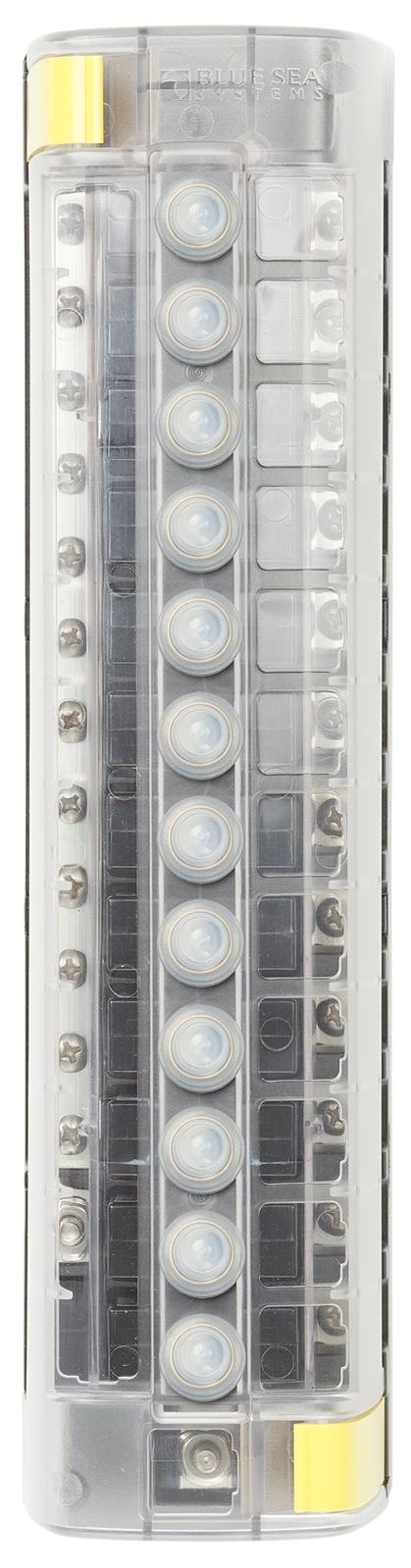

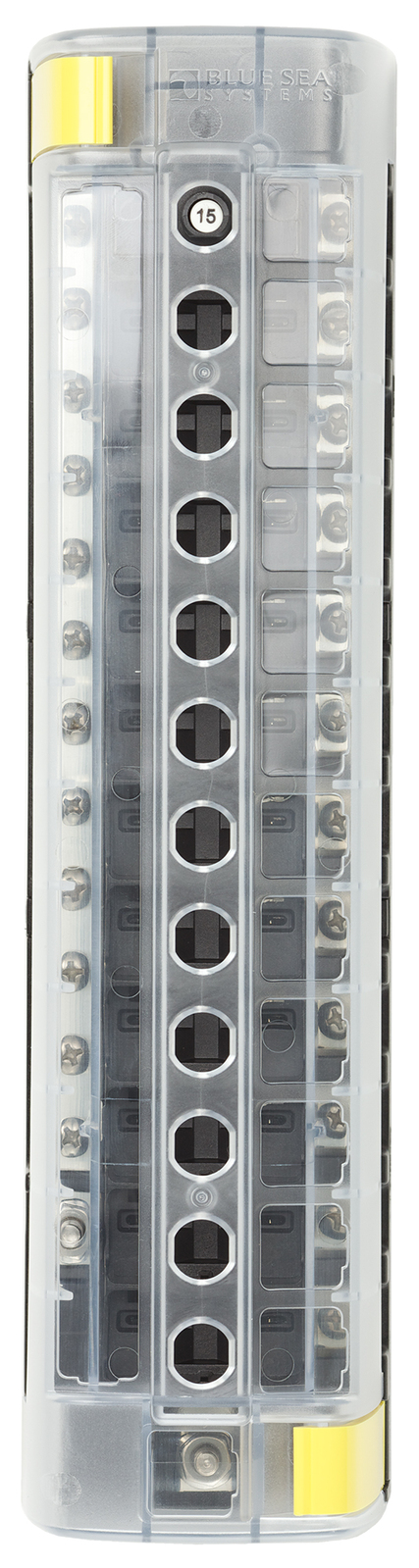

  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover
  • Accepts square labels
Circuits 12
Maximum Voltage 32V DC
Maximum Amperage 100A (per block) / 32A (per circuit)
Source Common Source
Positive Bus #10-32 Stud
Negative Bus #10-32 Stud
Operating Temperature -10° C to 60° C
Screw Terminal Type #8-32 Screws with Captive Star Lock Washer
Mounting #8 Screw (M4) or #8 Nut
Mounting Centers 10.13in (257.3 mm)
Height 11.19in (284.23 mm)
Weight 1.50lb (0.68 kg)



SKU 632085050542
Barcode # 5054-BSS
Shipping Weight 0.6800kg
Shipping Width 0.390m
Shipping Height 0.080m
Shipping Length 0.110m
Shipping Cubic 0.003432000m3
