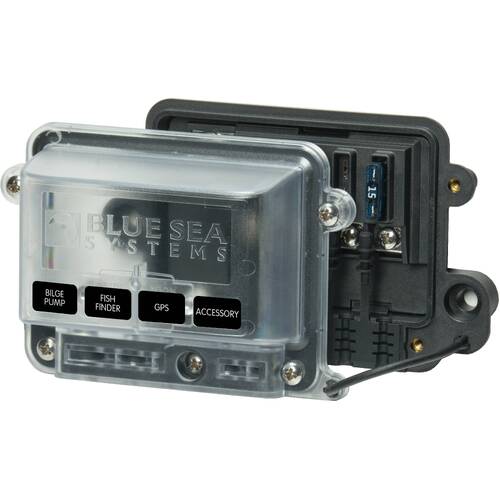

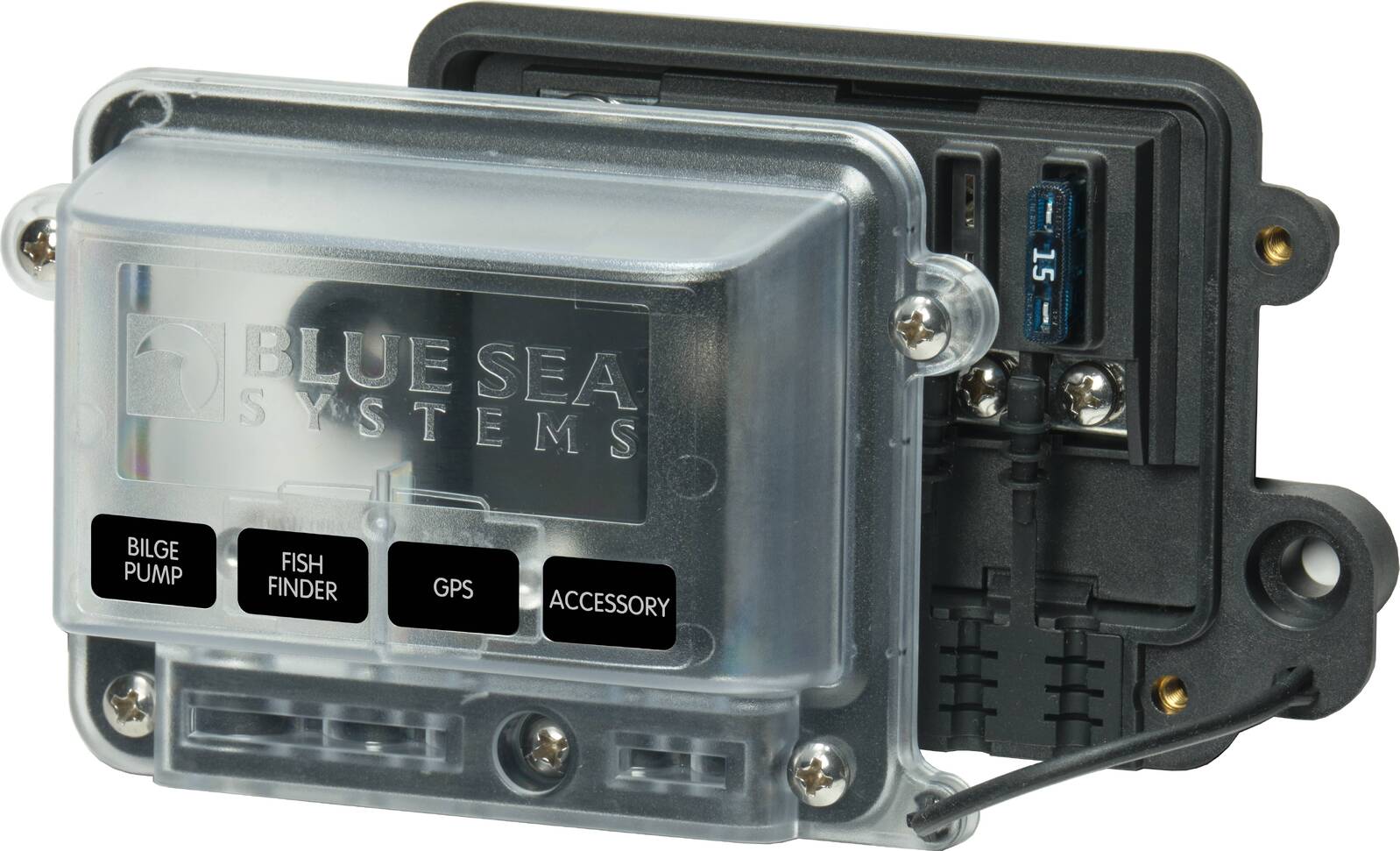

Provides water-resistant circuit protection for ATO/ATC fuses & circuit breakers in a compact footprint.
  • Water-resistant design with standard ring or spade type terminals
  • allows for simple wiring with standard tools
  • Accepts a wide range of wire sizes
  • Includes 3 wire plugs to maintain water resistant rating if less
  • than 4 loads are required
  • Accepts ATO and ATC fast-acting blade fuses
  • Accepts ATO/ATC-Style Low Profile Circuit Breakers
  • Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire
  • 5056100 meets ABYC/USCG insulation requirements
  • Tin-plated copper busses and fuse clips
  • Includes four write-on circuit labels
  • Small format standard and custom labels available
  • Spare fuse and fastener storage in cover
  • Fuses and circuit breakers sold separately
Circuits 4
Maximum Amperage 80A per block / 30A per circuit
Maximum Voltage 32V DC
Bus Material Tin-Plated Copper C11000
Mounting Holes Clearance for 1/4" (6mm) screws
Screw Terminal Type #8-32 Screws with captive star lock washer
Screw Terminal Torque 18 in-lb (2.03 Nm)
Wire Size (1) 8 AWG to 4 AWG - Input
(4) 16 AWG to 10 AWG - Load
Weight 0.75lb (0.34 kg)



SKU 632085050566
Barcode # 5056-BSS
Brand Blue Sea Systems
Shipping Weight 0.3500kg
Shipping Width 0.200m
Shipping Height 0.060m
Shipping Length 0.200m
Shipping Cubic 0.002400000m3
