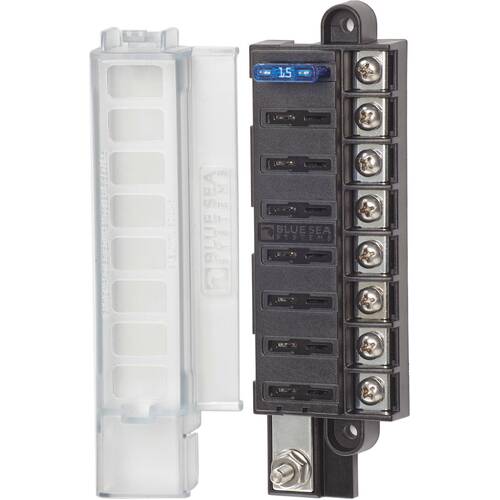

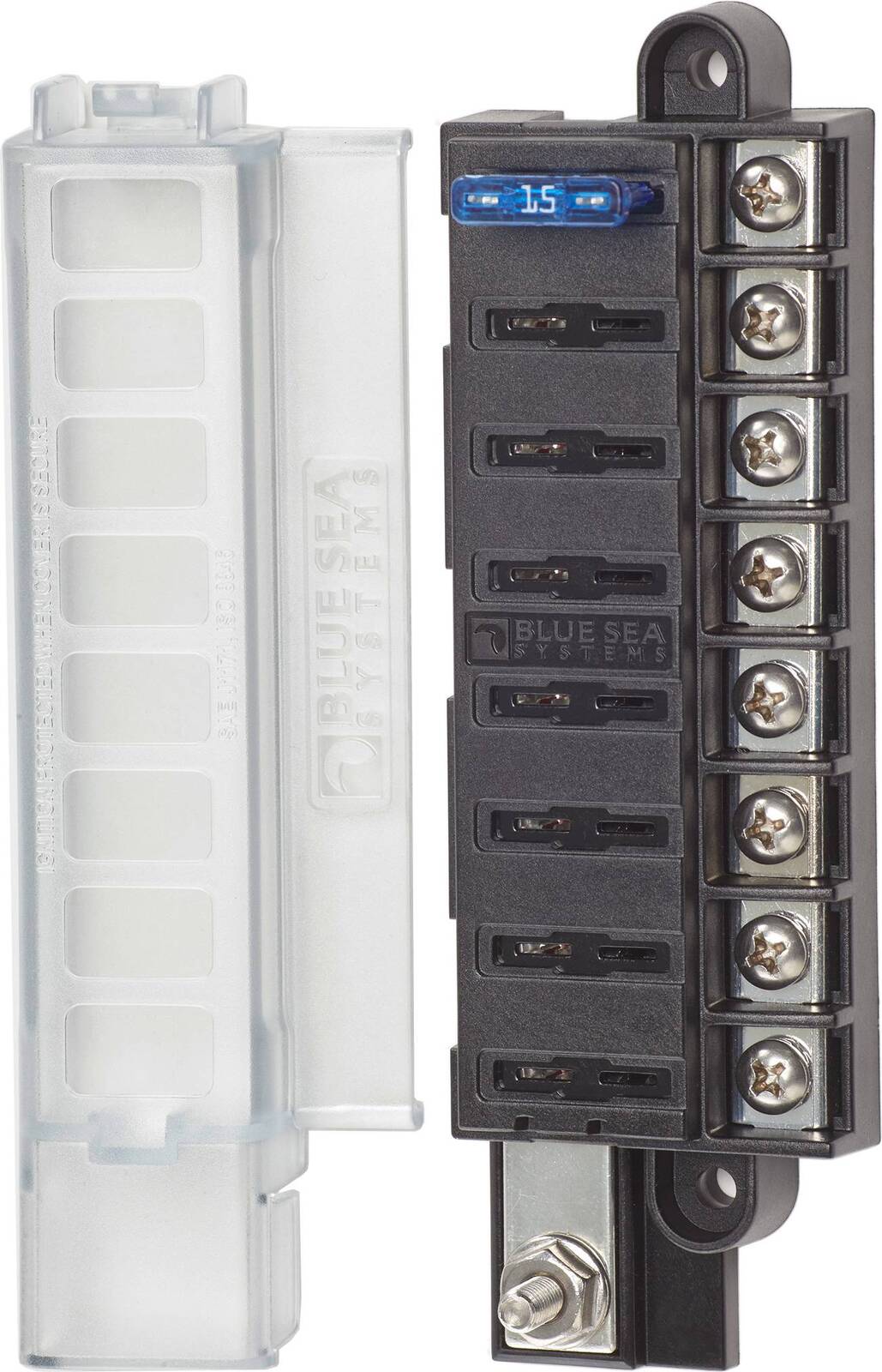

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint.
  • Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Single side design allows wire entry from one side to minimize footprint
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Includes 4 write-on circuit labels
  • Fuses sold separately
Circuits 8
Maximum Amperage 100A per block / 30A per circuit
Maximum Voltage 32V DC
Mounting #8 Screw (M4)
Terminal Stud Size #10-32
Recommended Torque 24 in-lb (2.71 N·m)
Screw Terminal Torque 18 in-lb (2.03 Nm)
Screw Terminal Type #8-32 Screws with captive star lock washer
Weight 0.40lb (0.18 kg)



SKU 632085050467
Barcode # 5046-BSS
Brand Blue Sea Systems
Shipping Weight 0.1800kg
Shipping Width 0.230m
Shipping Height 0.040m
Shipping Length 0.070m
Shipping Cubic 0.000644000m3
