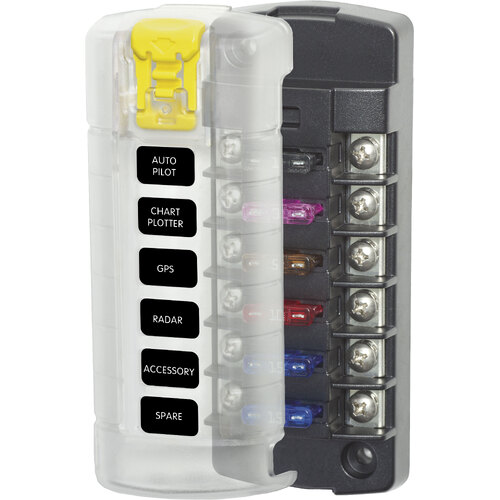

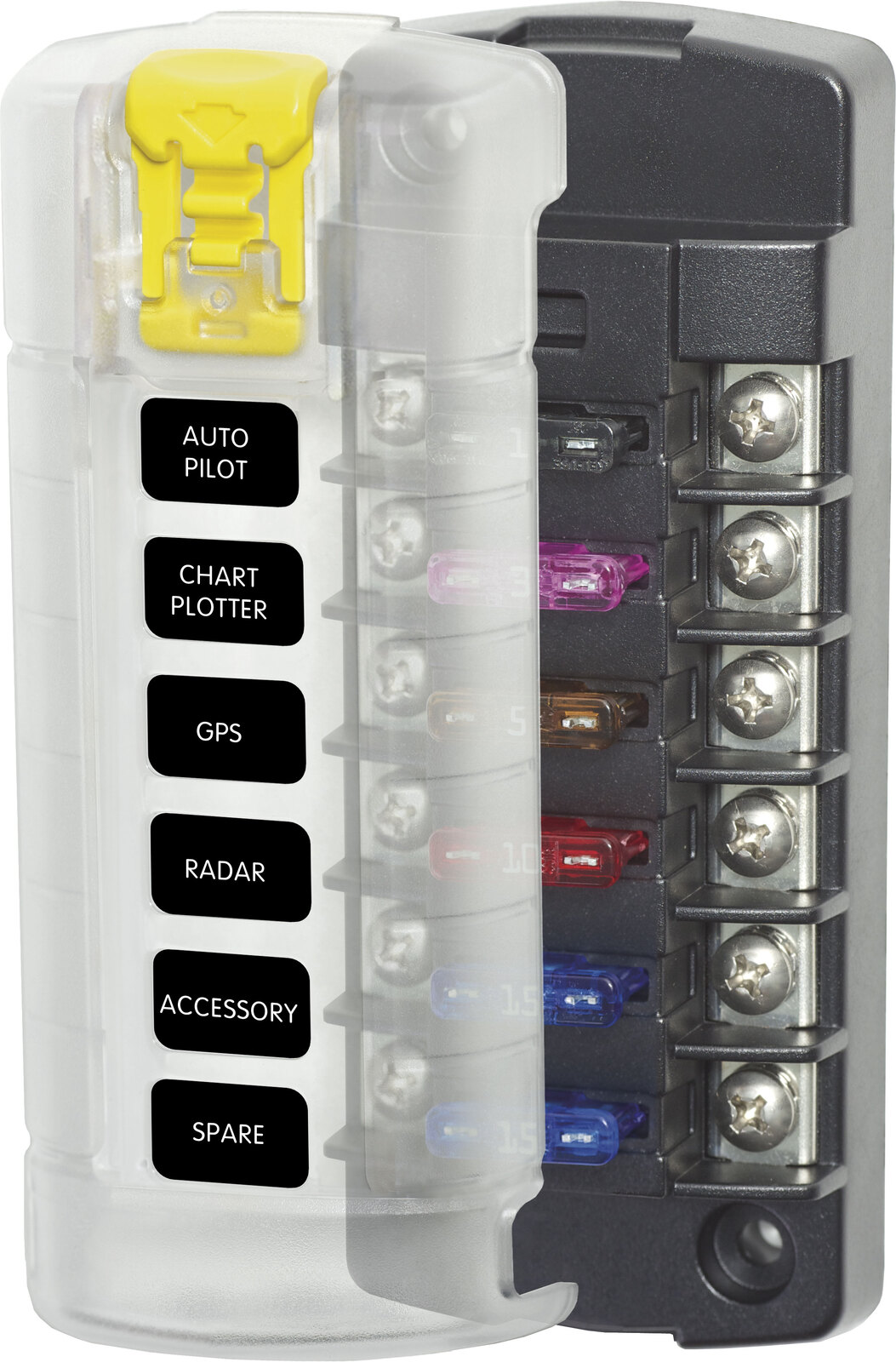

Consolidates branch circuits and in-line fuses
  • Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system
  • Clear insulating cover with label recesses accepts Small Format Labels
  • Spare fuse holder in cover
  • Accepts ring or snap fork type terminals
  • Includes two terminal block jumpers
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately
Circuits 6
Maximum Amperage 30A per circuit / 40A per jumped circuit group
Maximum Voltage 32V DC
Mounting #8 Screw (M4)
Positive Bus #10-32 Stud
Negative Bus #10-32 Stud
Recommended Torque 24 in-lb (2.71 N·m)
Screw Terminal Torque 18 in-lb (2.03 Nm)
Screw Terminal Type #8-32 Screws with captive star lock washer
Weight 0.55lb (0.25 kg)



SKU 632085050351
Barcode # 5035-BSS
Brand Blue Sea Systems
Shipping Weight 0.1800kg
Shipping Width 0.200m
Shipping Height 0.050m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
