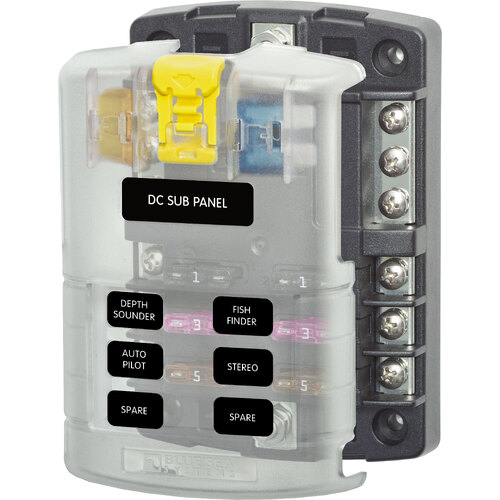

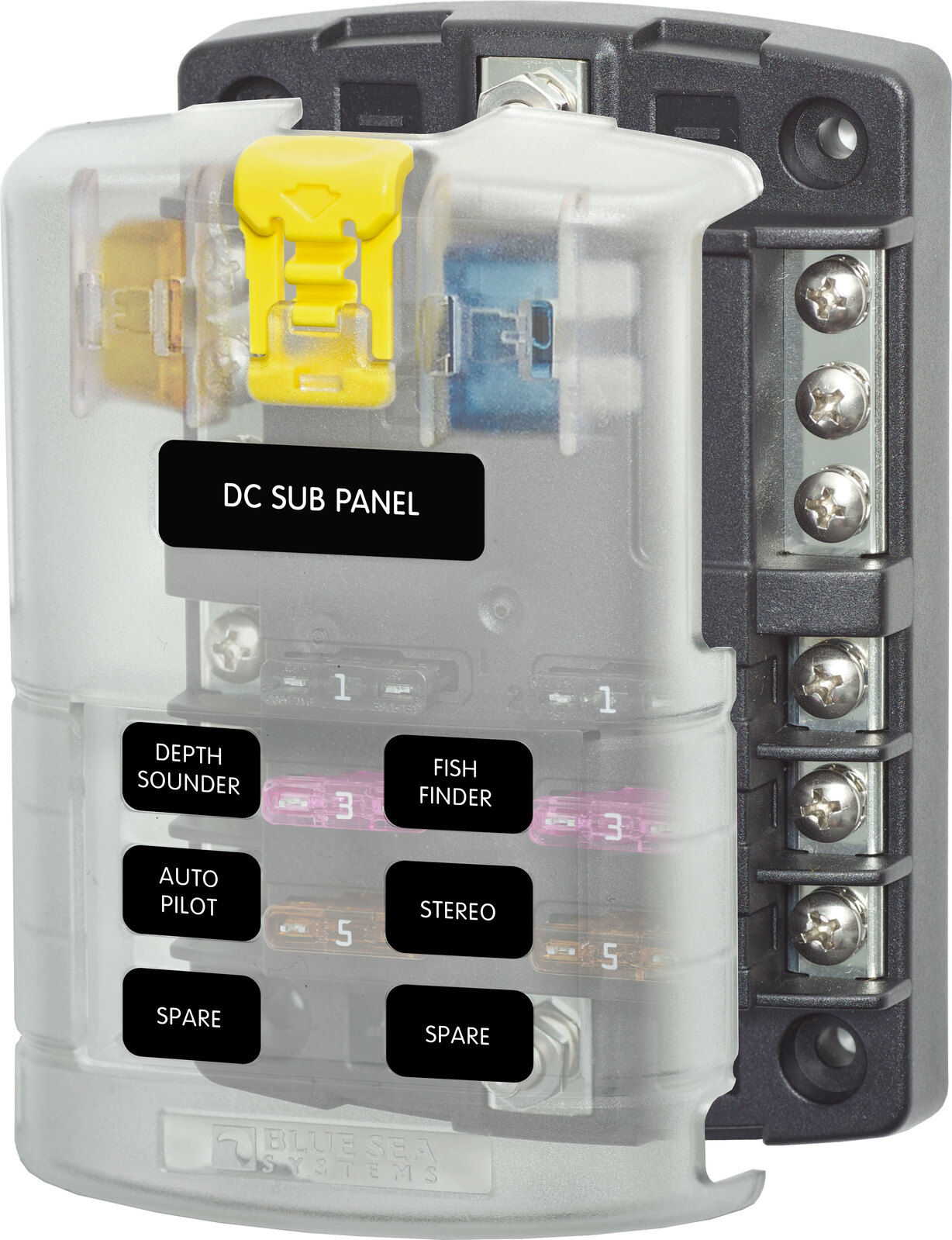

Consolidates branch circuits and in-line fuses
  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Models available with or without a cover
  • Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification
  • Fuse blocks with covers include 20 write-on circuit labels
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately
Circuits 6
Maximum Amperage 100A per block / 30A per circuit
Maximum Voltage 32V DC
Mounting #8 Screw (M4)
Positive Bus #10-32 Stud
Negative Bus #10-32 Stud
Recommended Torque 24 in-lb (2.71 N·m)
Screw Terminal Torque 18 in-lb (2.03 Nm)
Screw Terminal Type #8-32 Screws with captive star lock washer
Weight 0.55lb (0.25 kg)



SKU BSS5025B
Barcode # 5025B-BSS
Brand Blue Sea Systems
Shipping Weight 0.2500kg
Shipping Width 0.200m
Shipping Height 0.050m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
