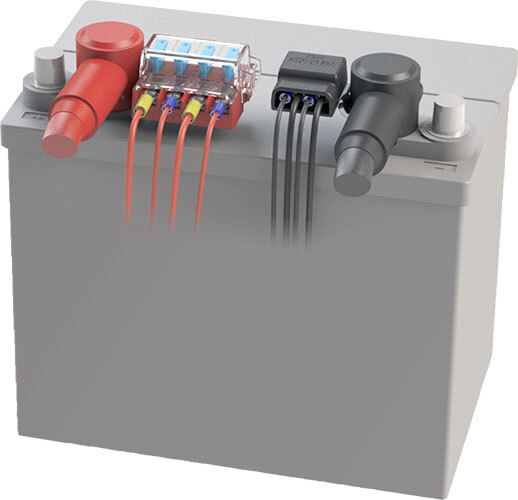

Easily add up to 4 fused circuits with insulating cover to the terminal of a battery.

Provides power to new accessories in your boat or vehicle.

  • Easy to install 4 ATO®/ATC® fused circuits
  • Mounts on the battery terminal stud
  • Screw terminals for securing wires
  • Four Nylon insulated ring terminals included
  • Insulating cover included
  • Accepts Small Format Circuit Labels
  • Includes 1 fuse
  • Fuses sold separately
Circuits 4
Maximum Amperage 100A per block / 30A per circuit
Maximum Voltage 32V DC
Mounting Clearance for 3/8" [M10] stud
Screw Terminal Torque 18 in-lb (2.03 Nm)
Screw Terminal Type #8-32 Screws with captive star lock washer
Weight 0.50lb (0.23 kg)



SKU 632085050245
Barcode # 5024-BSS
Brand Blue Sea Systems
Shipping Weight 0.2500kg
Shipping Width 0.200m
Shipping Height 0.050m
Shipping Length 0.200m
Shipping Cubic 0.002000000m3
