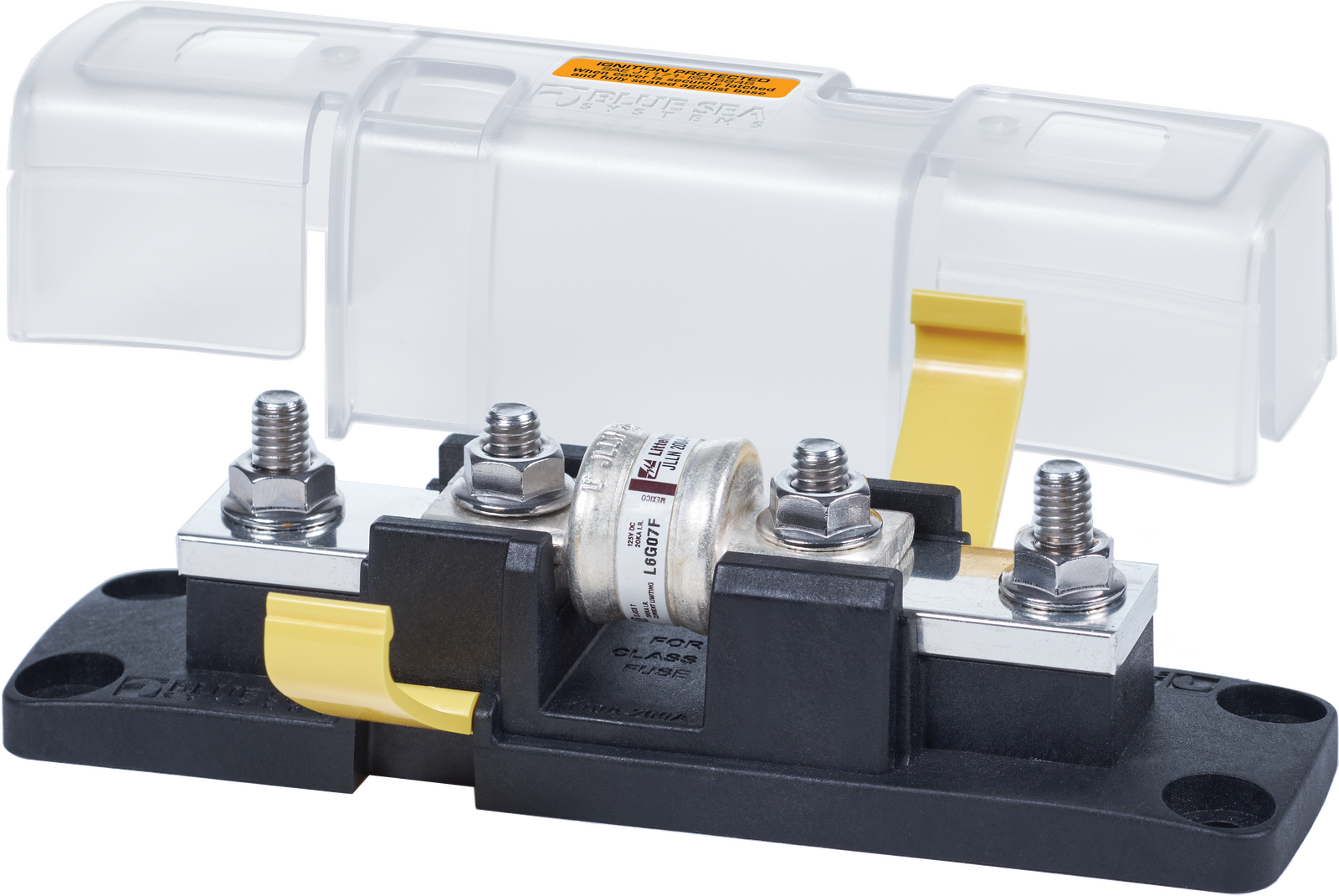

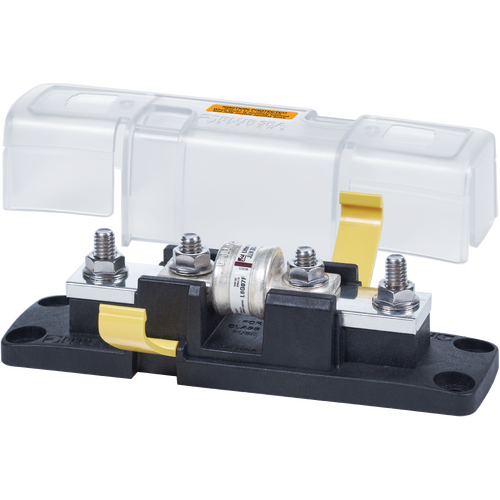

Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics
  • Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
  • Insulating cover satisfies ABYC/USCG insulation requirements
  • Cover breakouts allow wire access in any direction
  • Stud design ensures secure fuse mounting even with high heat
  • Stainless steel studs provide resistance to corrosion and high torque
  • One-piece stainless flange nuts ensure safe and secure connections
  • UL 94-V0 base resists high heat
  • Ignition Protected
  • Fuse sold separately
Maximum Voltage 160V DC
Maximum Amperage 160A
Ignition Protected Yes
Fuse Mounting Blocks Tin-Plated Copper
Maximum Cable Size 4/0 AWG
Maximum Torque 190 in-lb (21.47 Nm)
Mounting Holes Accept 1/4 (M6) Screw
Terminal Stud Size 3/8" - 16 (M10)
Weight 1.10lb (0.5 kg)



SKU 632085500719
Barcode # 5007100-BSS
Brand Blue Sea Systems
Shipping Weight 0.5000kg
Shipping Width 0.190m
Shipping Height 0.080m
Shipping Length 0.230m
Shipping Cubic 0.003496000m3
