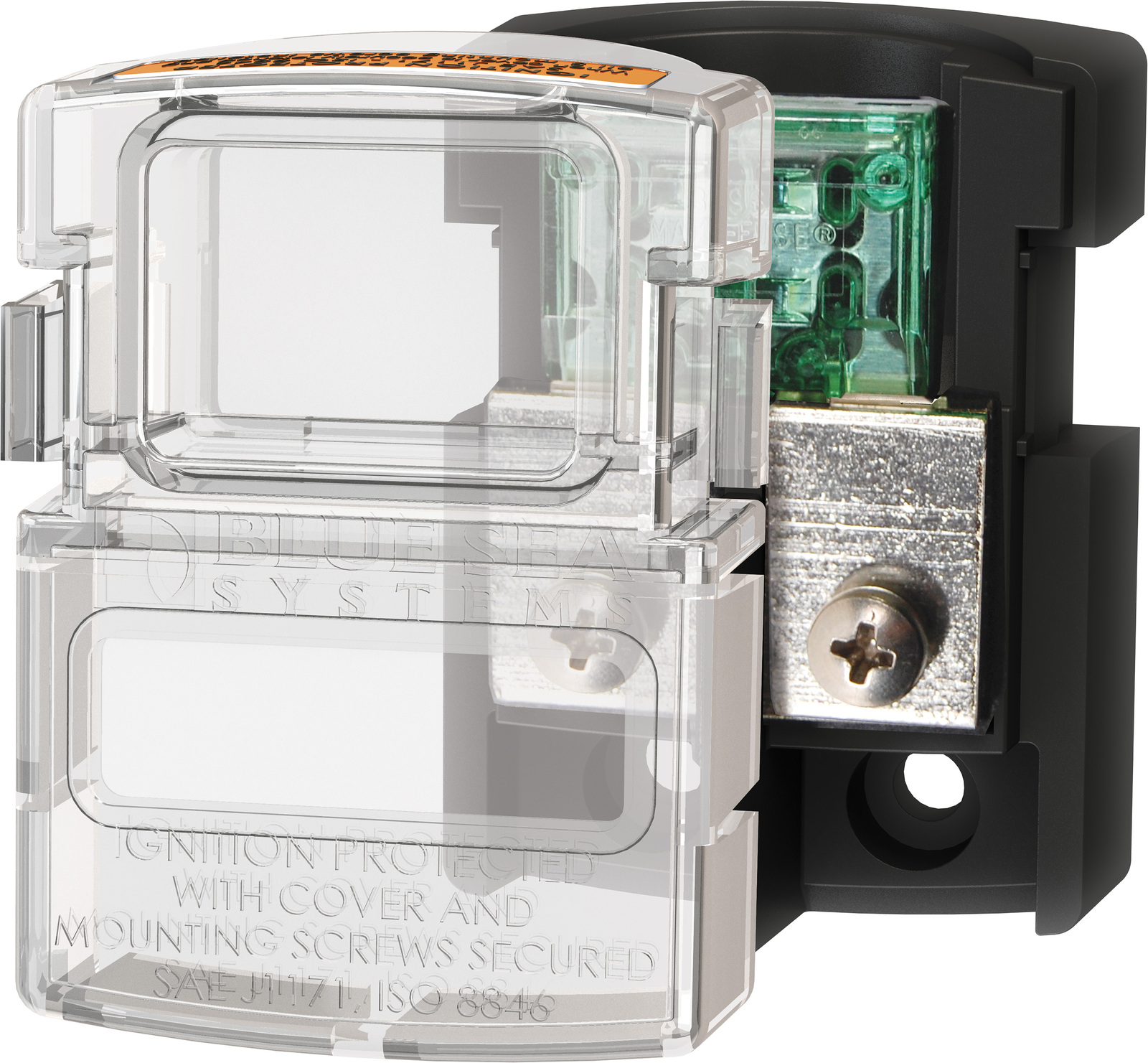

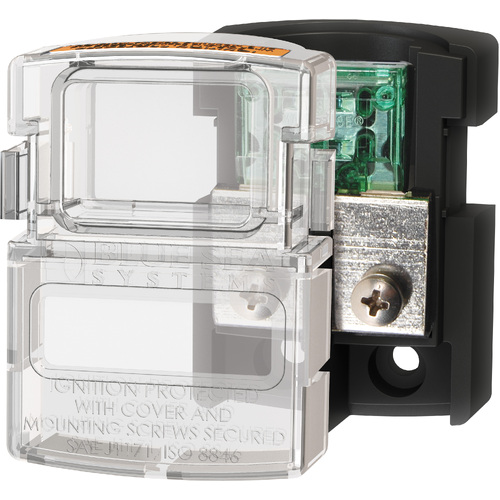

• Snap-on terminal cover insulates all conductive parts, satisfying ABYC/USCG requirements
  • Cover breakouts allow wires from sides or bottom
  • Terminal screws compress fuse blades within blocks for low resistance connections
  • Ignition Protected
  • Label recess accepts large format label
  • Fuses sold separately
Maximum Amperage 80A
Maximum Voltage 32V DC
Mounting #10 Screws
Screw Terminal Torque 25 in-lb (2.82 Nm)
Wire Size 14 - 4 AWG
Weight 0.25lb (0.11 kg)



SKU 632085500610
Barcode # 5006100-BSS
Brand Blue Sea Systems
Shipping Weight 0.2000kg
Shipping Width 0.160m
Shipping Height 0.045m
Shipping Length 0.070m
Shipping Cubic 0.000504000m3
