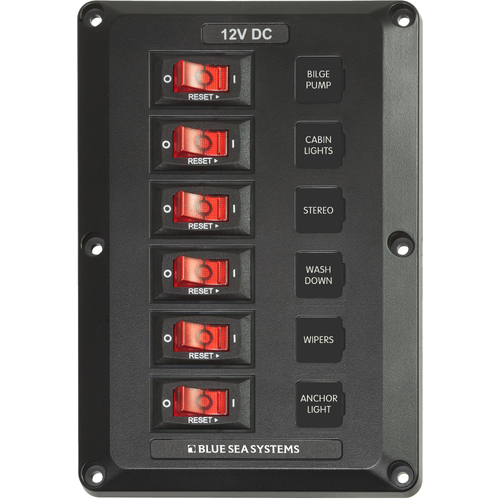

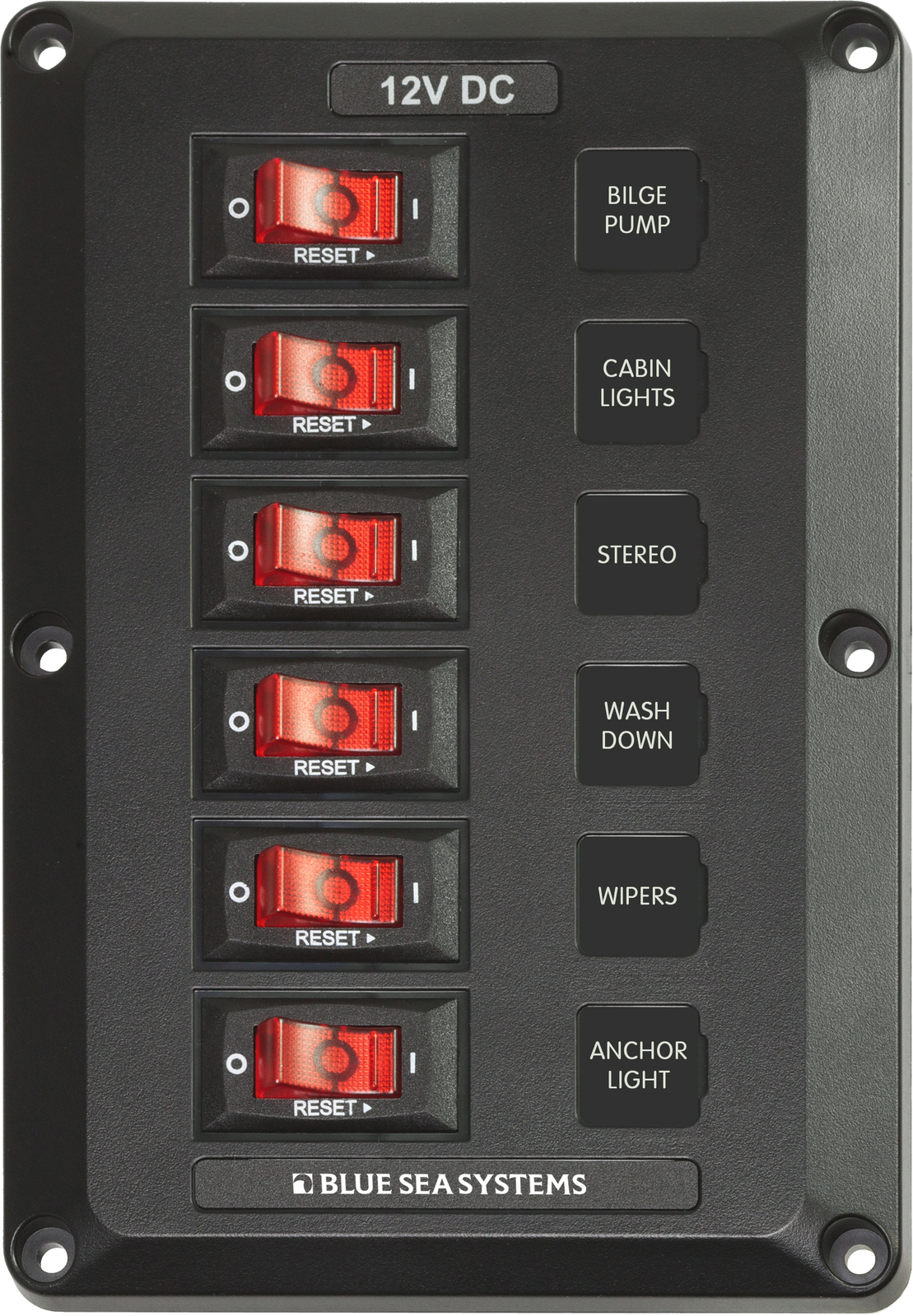

Easy to install accessory panels include a 15A circuit breaker switch and a pre-wired harness.
Panels offer customizable 12V charging and monitoring options.

DURABLE - Molded panel frame will stand up to UV and salt air
EASY - Low profile makes it easy to install in tight spaces
SIMPLE - Fast-on circuit breaker connectors make it quick to wire
CONVENIENT -Red “ON” indicating LEDs for safe operation in low light conditions

  • 4 Carling Technologies™ 15A circuit breakers with 2 sockets
  • Illuminated ON indication
  • Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
  • Quick connect BUS eliminates wire harness and clutter contributing to a low profile panel
  • Two-wire connection for powering all panels is simple and requires #5 ring terminals. Terminals screw to bus bars for secure connections
  • Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
  • Stainless steel #6 x 5/8″ mounting screws included
Positions 4 w/Sockets
Nominal Voltage 12V DC
Maximum Amperage 45A
Height 5.7in (144.78 mm)
Width 4.25in (107.95 mm)
Depth 1.75in (44.45 mm)



SKU 632085043520
Barcode # 4352-BSS
Brand Blue Sea Systems
Shipping Weight 0.2500kg
Shipping Width 0.230m
Shipping Height 0.080m
Shipping Length 0.160m
Shipping Cubic 0.002944000m3
