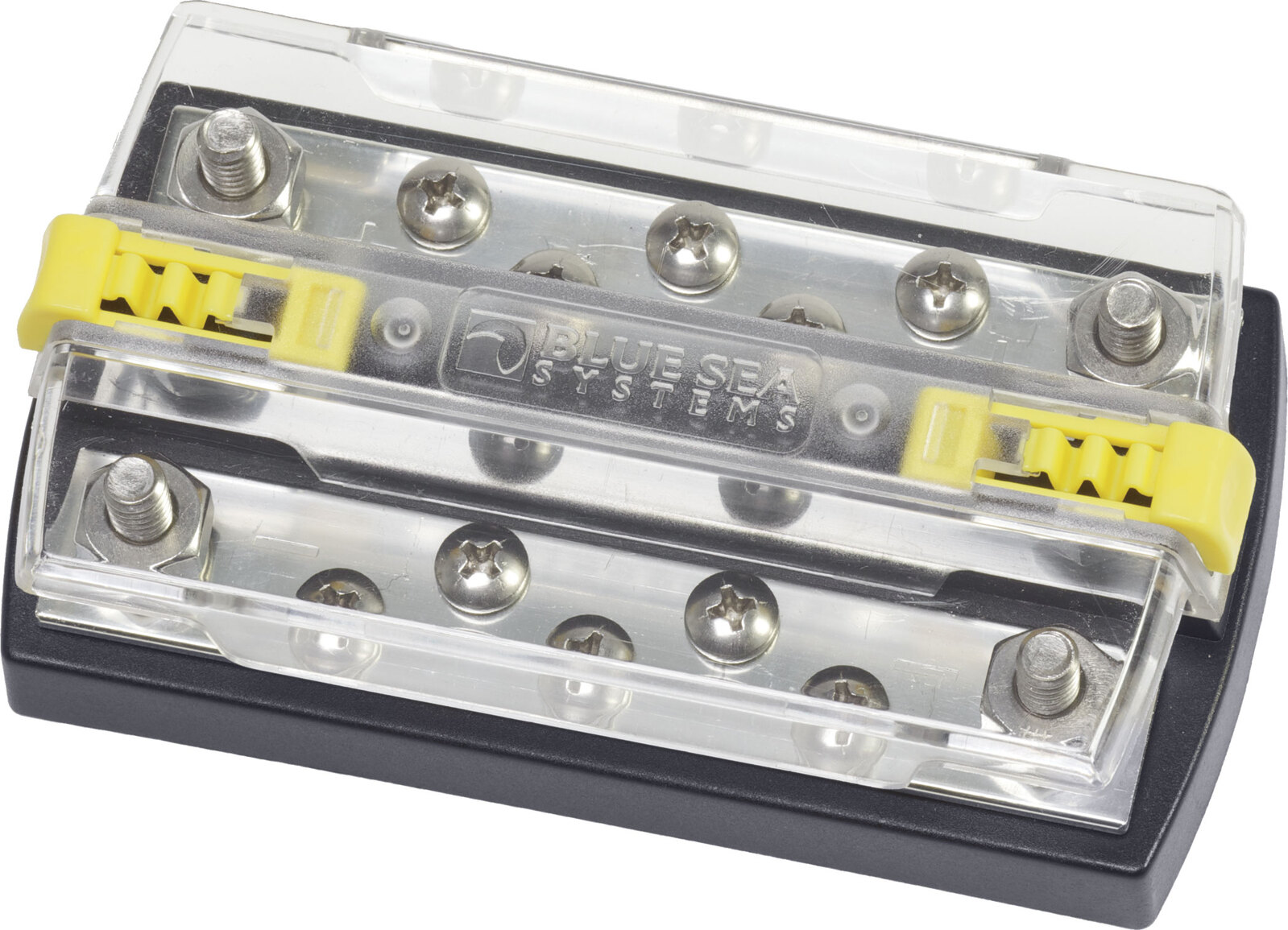

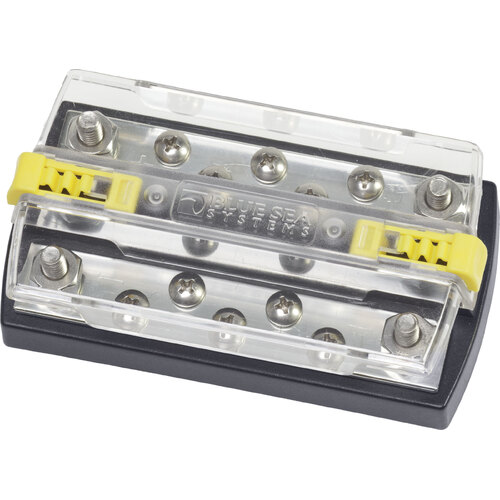

Combines negative and positive buses on one block

Clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements

  • Base Material - Reinforced Polycarbonate
  • Bus Material - Tin-Plated Copper CDA 110 / UNS 11000
  • Cover Material - Clear Polycarbonate
  • CE Certified
Maximum Voltage 300V AC / 48V DC
Continuous Rating 130A AC / 150A DC

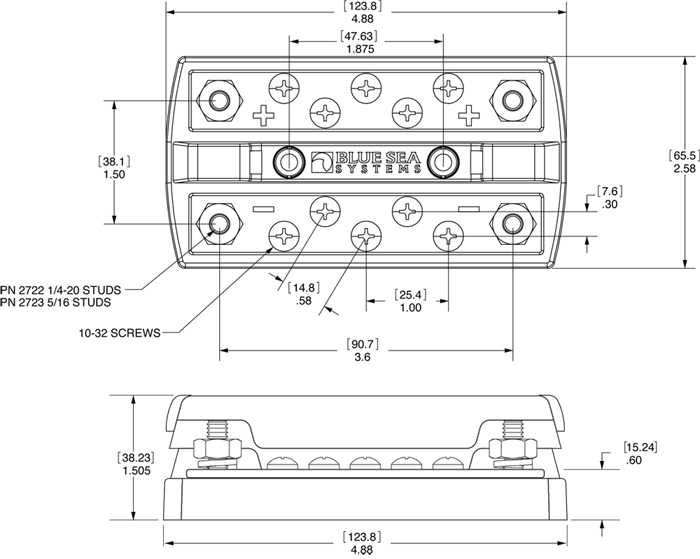

Number of Screw Terminals 5 per bus
Number of Terminal Studs 2 per bus
Terminal Type #10-32 Screw / 1/4" Stud
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110/ UNS11000
Screw Terminal Torque 15 in-lb (1.69 Nm)
Stud Terminal Torque 60 in-lb (6.78 Nm)
Weight 0.66lb (0.3 kg)



SKU 632085027223
Barcode # 2722-BSS
Brand Blue Sea Systems
Shipping Weight 0.3000kg
Shipping Width 0.205m
Shipping Height 0.045m
Shipping Length 0.105m
Shipping Cubic 0.000968625m3
