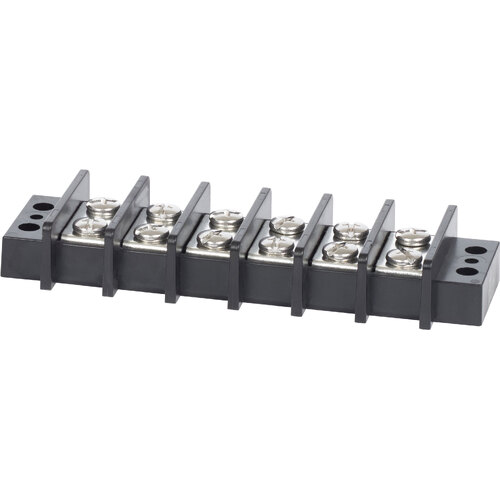

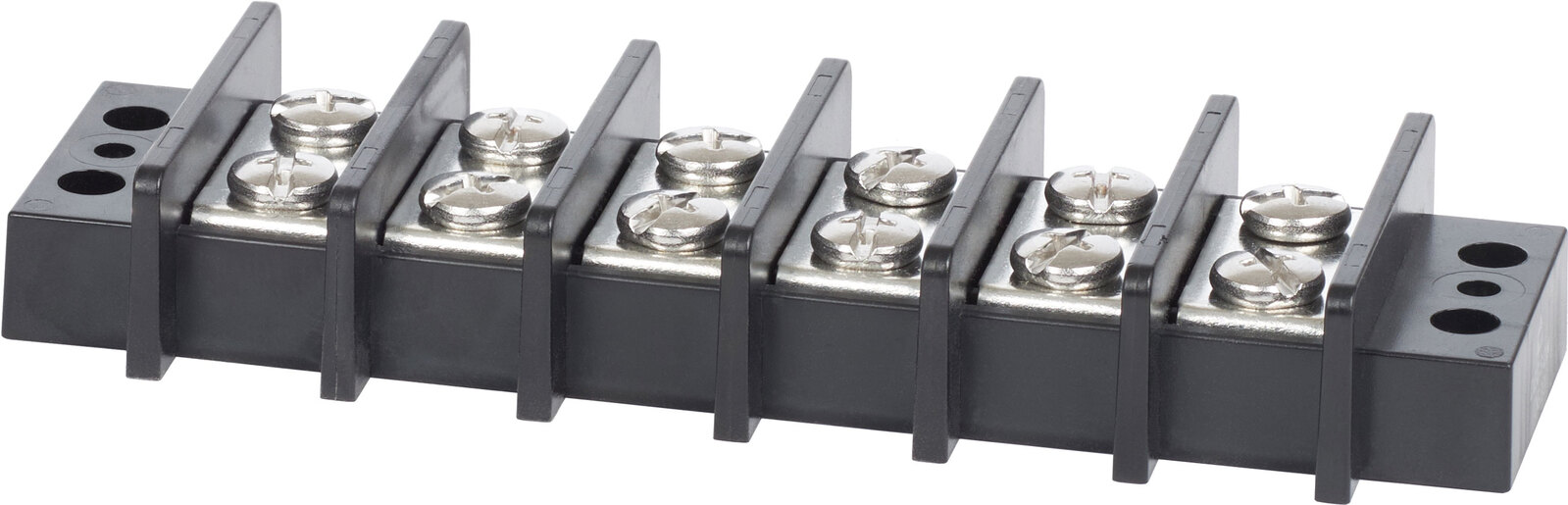

Closed back design completely insulates power from the mounting surface

Each screw pair is one isolated circuit

Jumpers allow creation of common circuits

Circuits 6
Maximum Voltage 300V AC/DC
Continuous Rating 65A
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Nickel-Plated Brass
Screw Material Stainless Steel
Terminal Screws M5
Screw Terminal Torque 7 in-lb (0.79 Nm)
Weight 0.34b (0.15 kg)





SKU 632085026066
Barcode # 2606-BSS
Brand Blue Sea Systems
Shipping Weight 0.2200kg
Shipping Width 0.205m
Shipping Height 0.030m
Shipping Length 0.050m
Shipping Cubic 0.000307500m3
