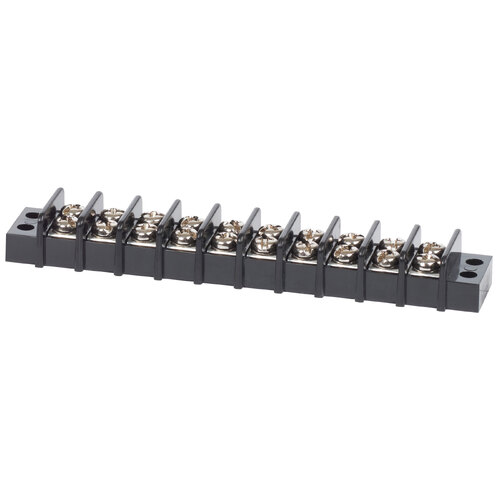

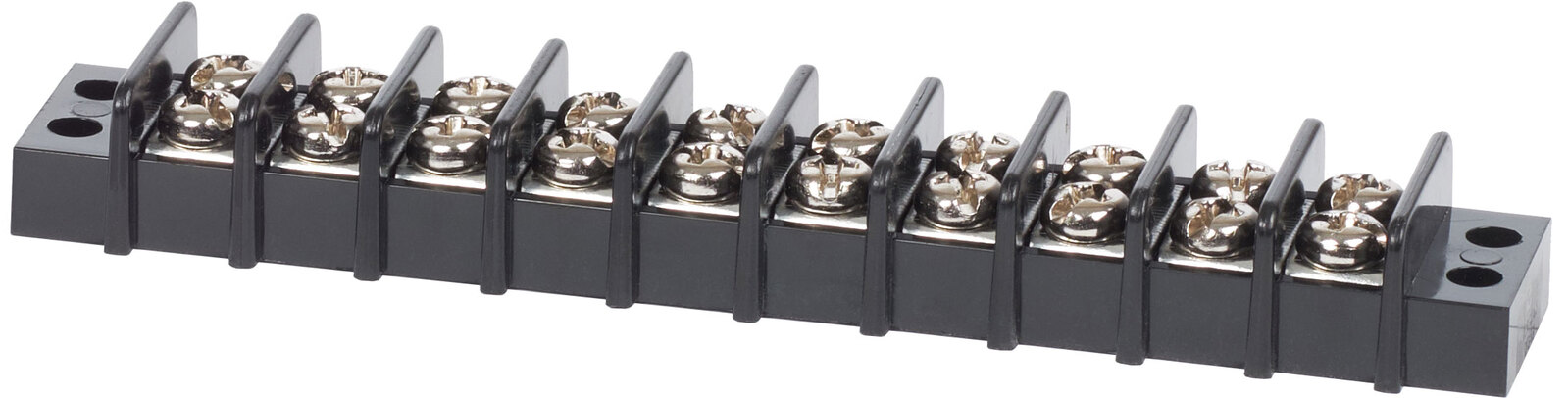

Closed back design completely insulates power from the mounting surface

Each screw pair is one isolated circuit

Jumpers allow creation of common circuits

Circuits 10
Maximum Voltage 300V AC/DC
Continuous Rating 20A
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Nickel-Plated Brass
Screw Material Stainless Steel
Terminal Screws M3.5
Screw Terminal Torque 7 in-lb (0.79 Nm)
Weight 0.11lb (0.05 kg)





SKU 632085024109
Barcode # 2410-BSS
Brand Blue Sea Systems
Shipping Weight 0.0500kg
Shipping Width 0.165m
Shipping Height 0.020m
Shipping Length 0.050m
Shipping Cubic 0.000165000m3
