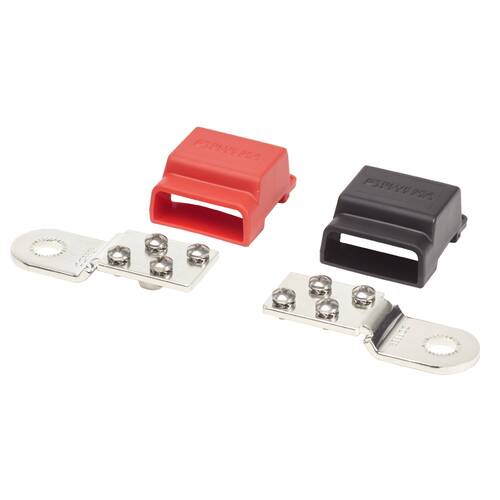

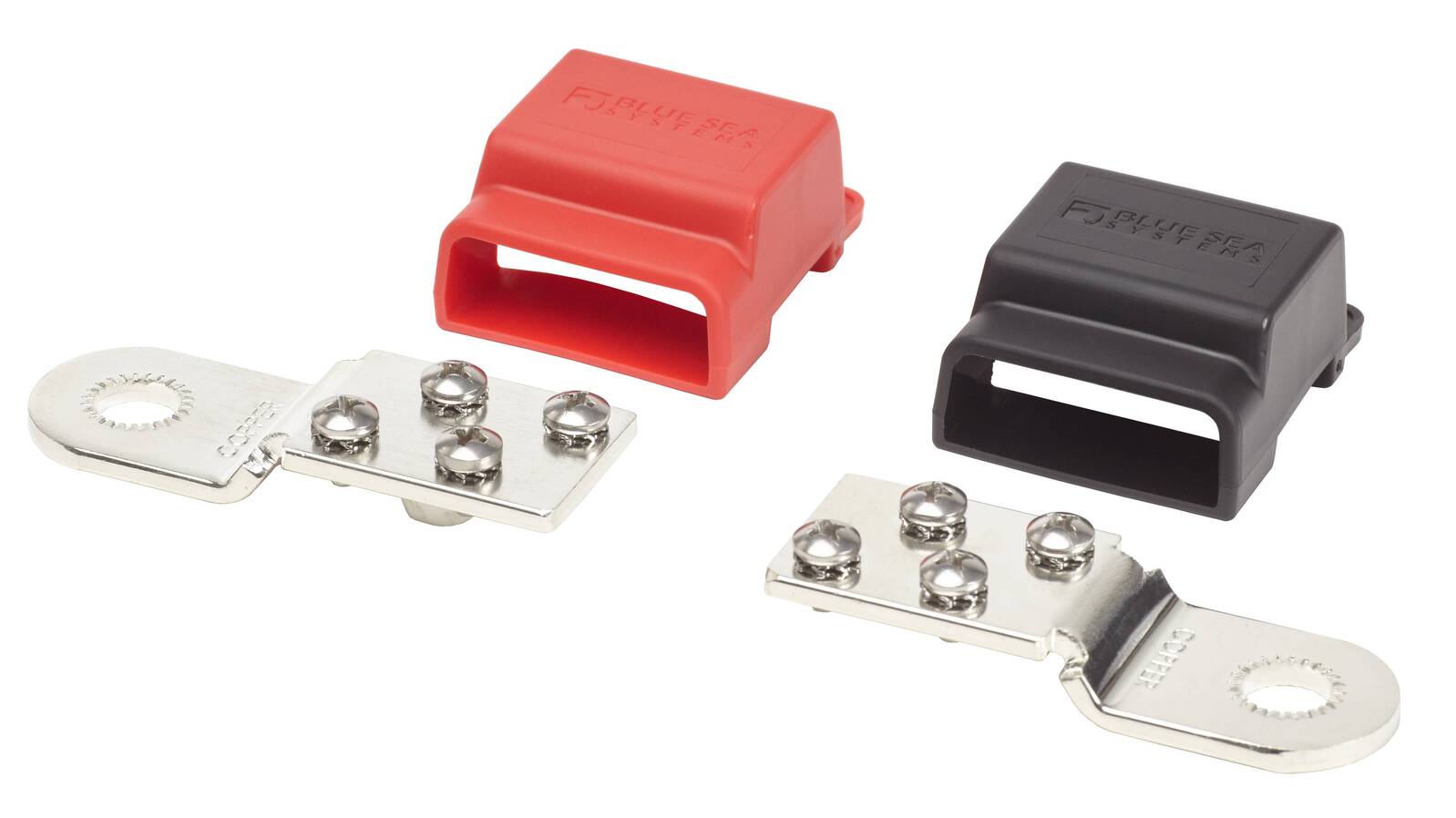

Provides convenient busing for limited space applications

  • Easily add positive and negative busbars directly to a threaded-post battery terminal
  • Tin-plated pure electrical copper for maximum conductivity
  • Insulating covers meet ABYC/USCG insulation requirements
  • Screw terminals for securing wires
  • Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals
  • CE Certified
Maximum Voltage 32V DC
Continuous Rating 100A
Number of Screw Terminals 4
Terminal Type #8-32 Screws with Captive Star Lock washer
Bus Material Tin-Plated Copper CDA 110/ UNS11000
Mounting Hole Clearance for Ø3/8 [M10] stud
Weight 0.25lb (0.11 kg)



SKU 632085023409
Barcode # 2340-BSS
Brand Blue Sea Systems
Shipping Weight 0.2200kg
Shipping Width 0.190m
Shipping Height 0.040m
Shipping Length 0.180m
Shipping Cubic 0.001368000m3
