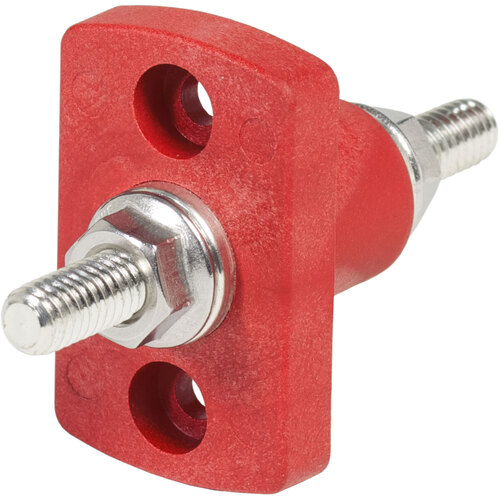

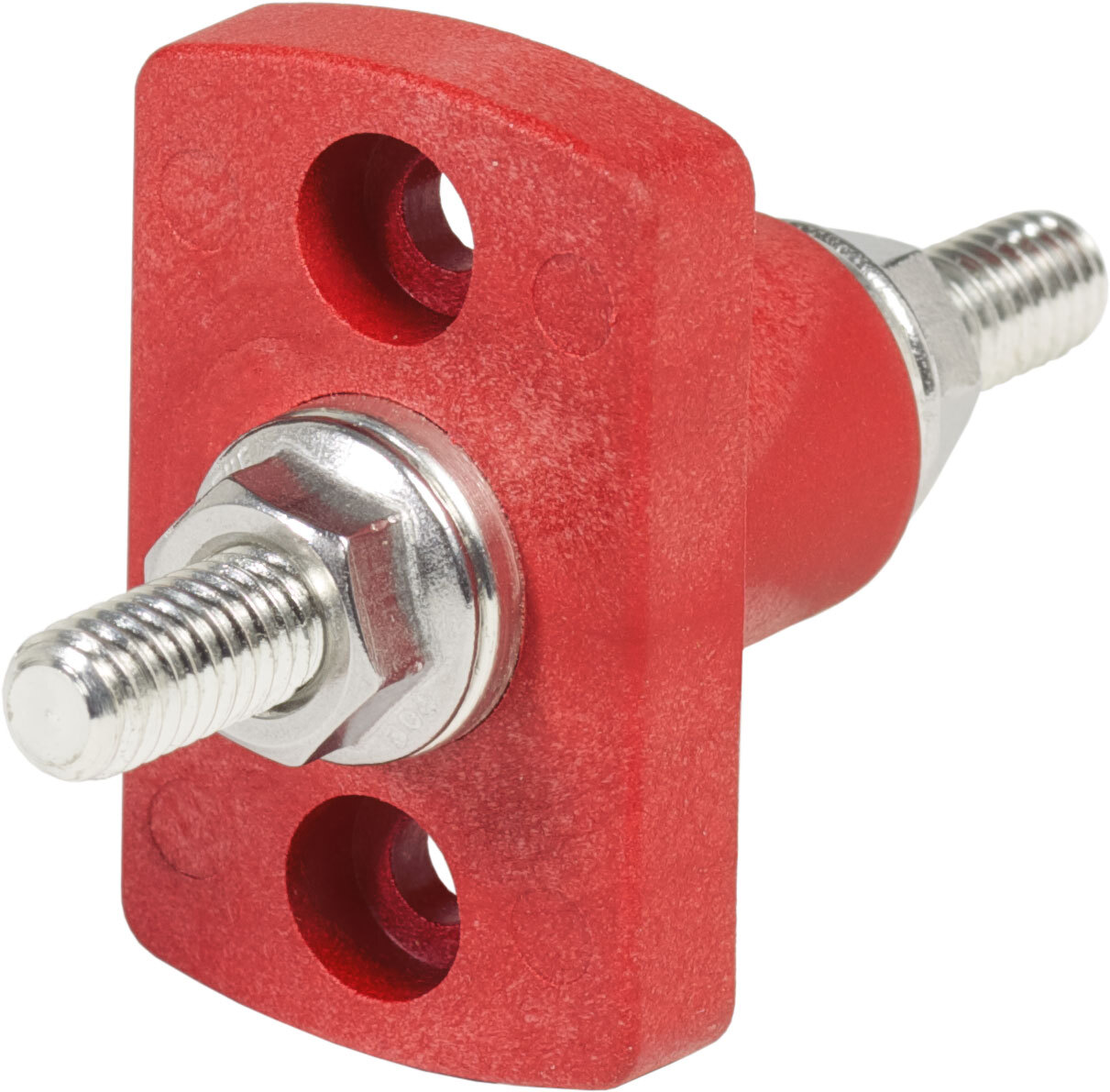

Eliminates chafe and provides strain relief when passing high current through hulls, decks, bulkheads or firewalls

  • Perfect for passing high current cables through hulls, decks and bulkheads
  • Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable
  • Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation
  • Rated IP66 — withstands water from heavy seas
Amperage 250A
Color Red
Maximum Voltage 48V DC
Stud Size 5/16"-18
Base Material Reinforced Thermoplastic
Stud Material Tin-Plated Copper Alloy
Recommended Torque 100 in-lb (11.3 N·m)
Weight 0.30lb (0.14 kg)



SKU BSS2202B
Barcode # 2202-BSS
Brand Blue Sea Systems
Shipping Weight 0.1500kg
Shipping Width 0.110m
Shipping Height 0.050m
Shipping Length 0.070m
Shipping Cubic 0.000385000m3
