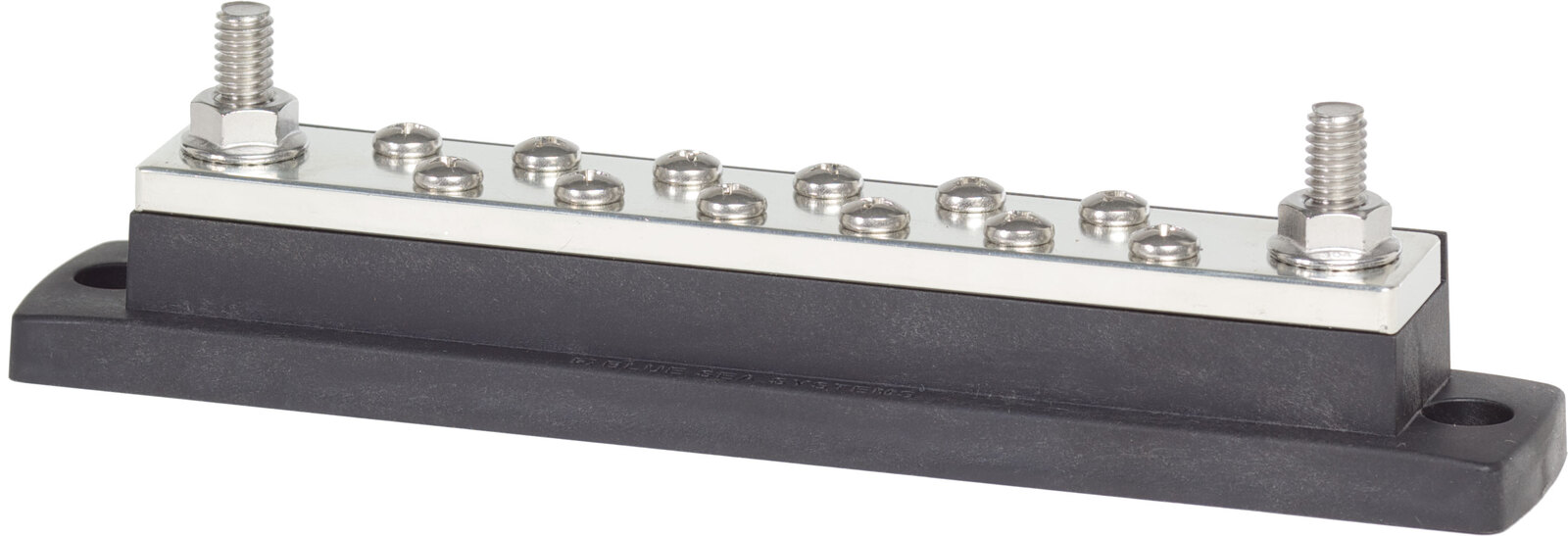

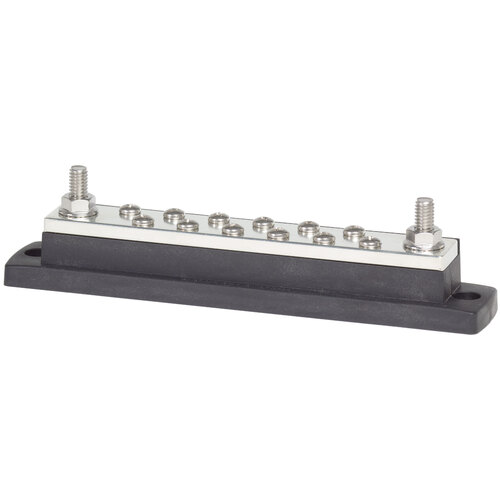

Busbars are used to consolidate multiple wires or feed multiple circuits

  • Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
  • Raised bus provides easy access to multiple wires on a single screw or stud
  • UL 94-V0 rated base material resists high heat
  • Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
  • Base Material - Reinforced Polycarbonate
  • Bus Material - Tin-Plated Copper CDA 110 / UNS 11000
  • CE Certified
Maximum Voltage 300V AC / 48V DC
Continuous Rating 130A AC / 150A DC
Number of Screw Terminals 12
Number of Terminal Studs 2

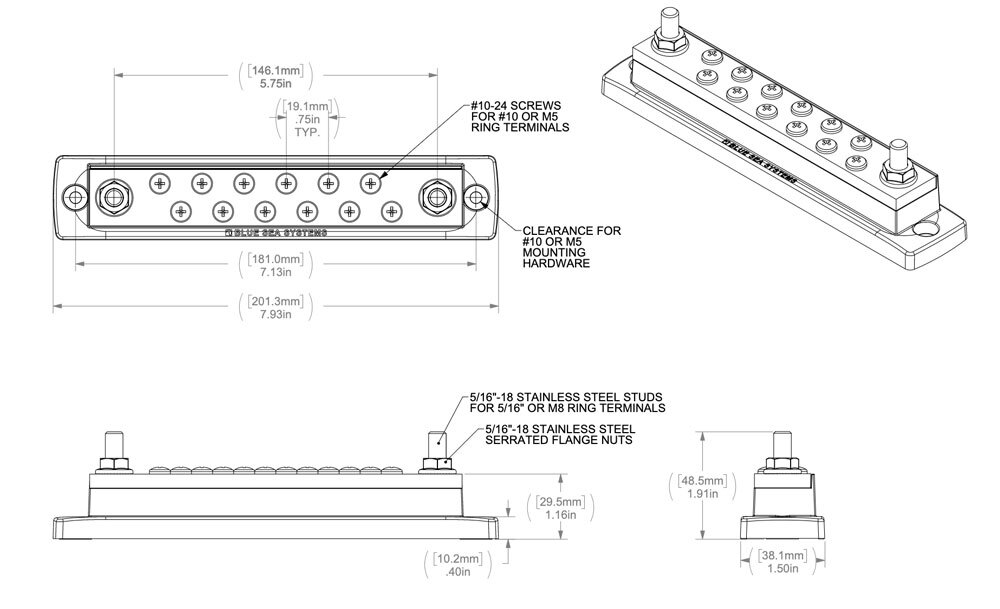

Terminal Type #10-24 Screw / 5/16"-18 Stud
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110/ UNS11000
Screw Terminal Torque 23 in-lb (2.6 N·m)
Stud Torque 132 in-lb (14.91 N·m)
Weight 0.80lb (0.36 kg)



SKU 632085021054
Barcode # 2105-BSS
Brand Blue Sea Systems
Shipping Weight 0.4400kg
Shipping Width 0.285m
Shipping Height 0.060m
Shipping Length 0.075m
Shipping Cubic 0.001282500m3
