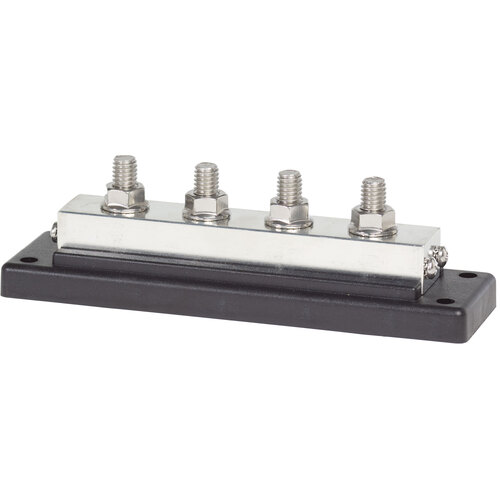

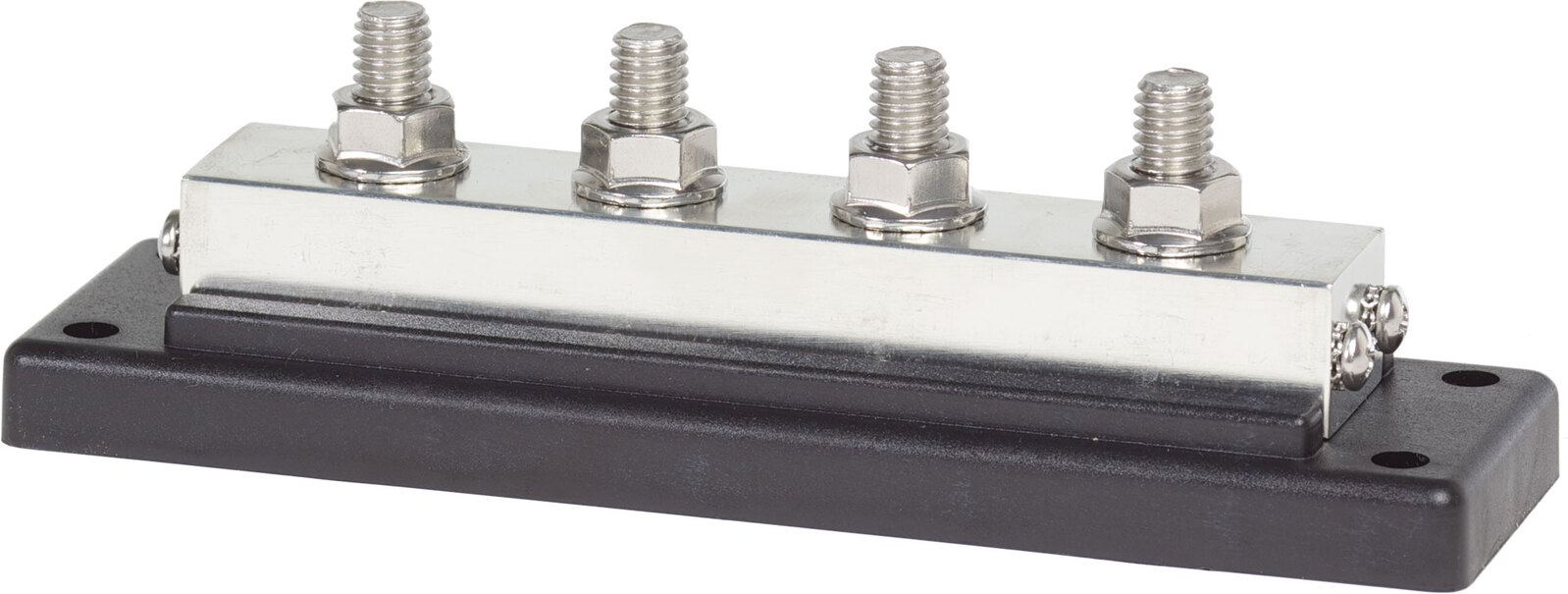

Provides compact high-ampere busing with 3/8" terminal studs

  • Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
  • Raised bus provides easy access to multiple wires on a single screw or stud
  • UL 94-V0 rated base material resists high heat
  • Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
  • Base Material - Reinforced Polycarbonate
  • Bus Material - Tin-Plated Copper CDA 110 / UNS 11000
  • CE Certified
Maximum Voltage 48V DC
Continuous Rating 200A DC
Number of Terminal Studs 4
Terminal Type 3/8"-16 Stud
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110/ UNS11000
Stud Torque 140 in-lb (15.82 Nm)
Weight 1.71lb (0.78 kg)



SKU 632085021047
Barcode # 2104-BSS
Brand Blue Sea Systems
Shipping Weight 0.8000kg
Shipping Width 0.185m
Shipping Height 0.080m
Shipping Length 0.230m
Shipping Cubic 0.003404000m3
