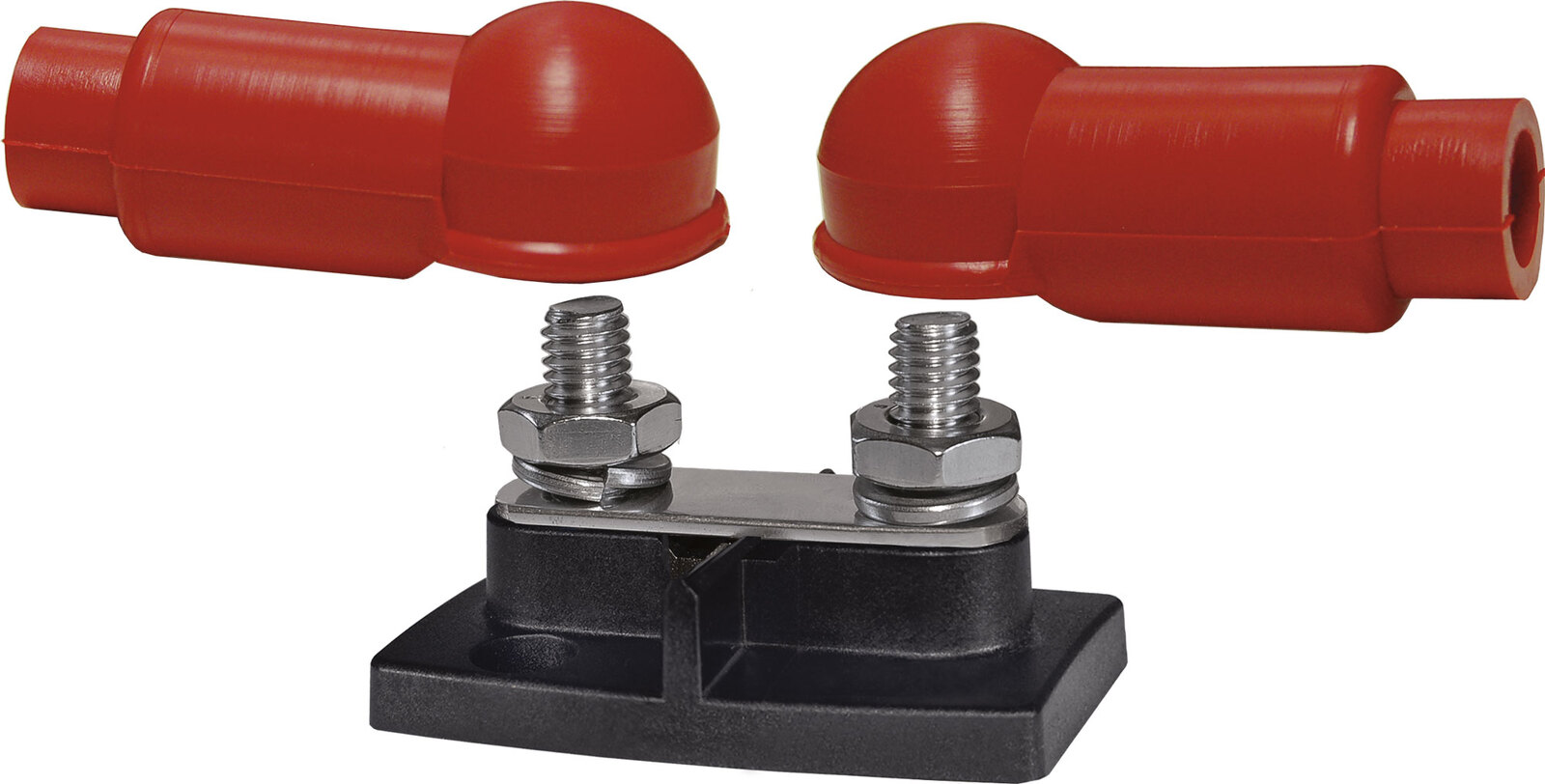

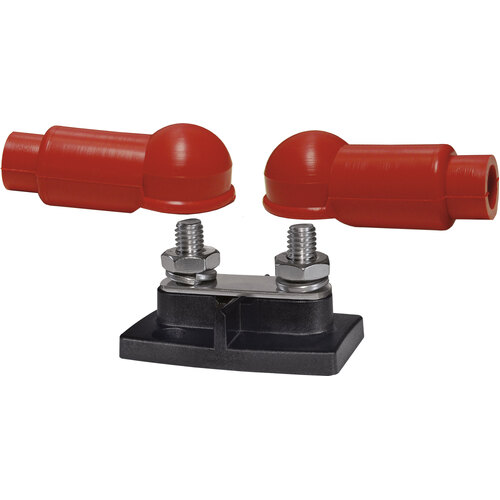

Provides compact high-ampere busing with 3/8" terminal studs

  • Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
  • Raised bus provides easy access to multiple wires on a single screw or stud
  • UL 94-V0 rated base material resists high heat
  • Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
  • Base Material - Reinforced Polycarbonate
  • Bus Material - Tin-Plated Copper CDA 110 / UNS 11000
  • CE Certified
Maximum Voltage 48V DC
Continuous Rating 200A DC
Number of Terminal Studs 2
Terminal Type 3/8"-16 Stud
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110/ UNS11000
Stud Torque 100 in-lb (11.3 Nm)
Weight 0.34lb (0.15 kg)



SKU 632085020194
Barcode # 2019-BSS
Brand Blue Sea Systems
Shipping Weight 0.1800kg
Shipping Width 0.130m
Shipping Height 0.040m
Shipping Length 0.100m
Shipping Cubic 0.000520000m3
