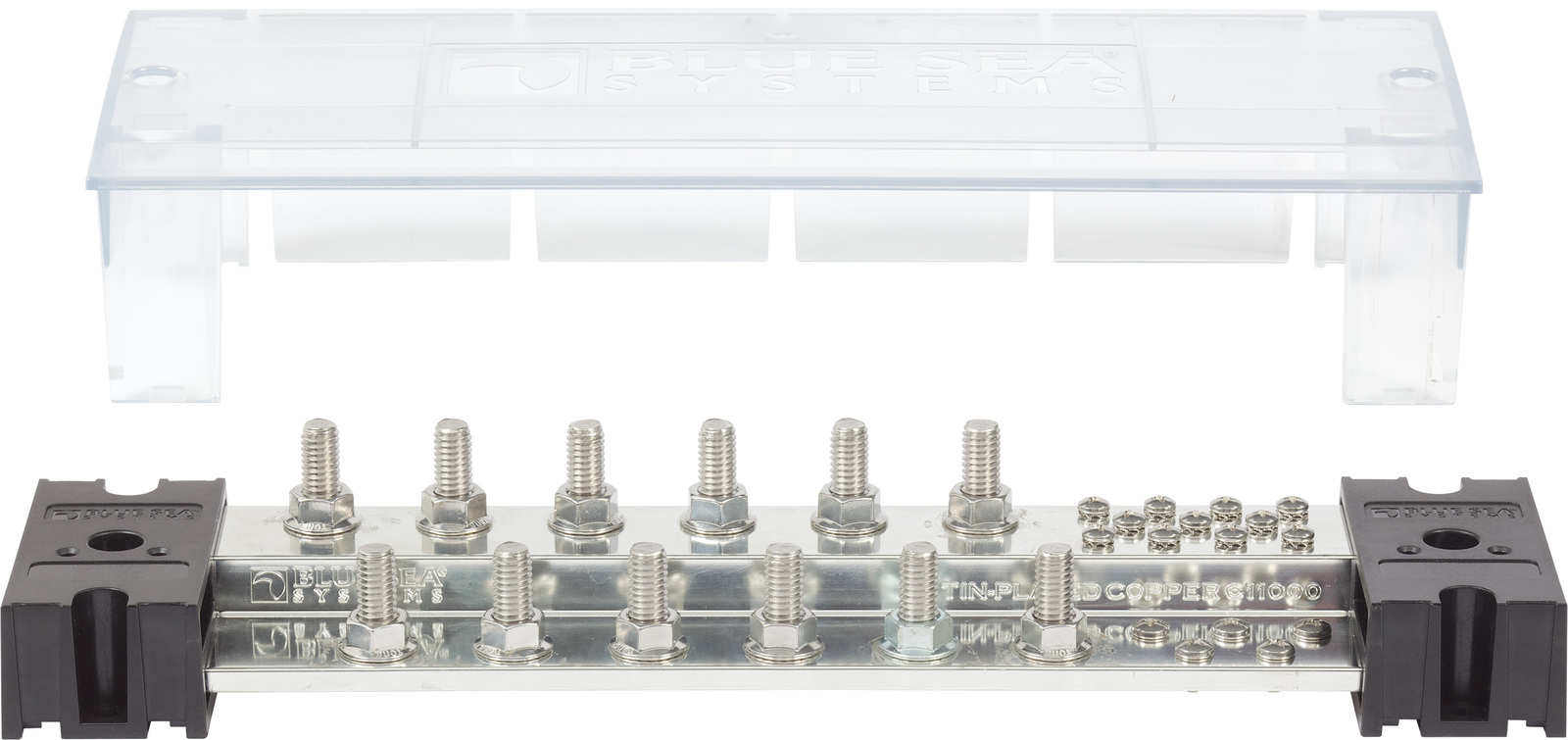

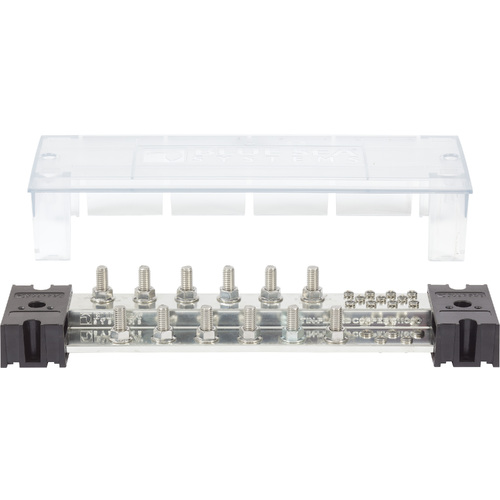

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.
  • 1,000 Amp busbar for large complex wiring systems
  • Tin plated pure electrical copper for maximum conductivity
  • Stepped bus design offers two elevations for conductors which doubles
  • the density of the wire loom compared to traditional bus bars
  • Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
  • One-piece serrated flange nuts ensure correct and secure connections
  • Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
  • Busbar may be cut to a shorter length to accommodate constricted spaces
  • Bi-directional busbar end caps allow the ganging of additional busbars
  • Snap on insulating cover meets ABYC and USCG requirements and includes label recess
Maximum Voltage 150V
Continuous Rating 1000A
Number of Screw Terminals 5 x #10-32 / 11 x #8-32
Number of Terminal Studs 12 x 3/8"-16 Stud
Terminal Type #8-32 Screw / #10-32 Screw / 3/8"-16 Stud
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110/ UNS11000
Screw Terminal Torque 18 in-lb (2.03 Nm) #10-32
15 in-lb (1.69 Nm) #8-32
Stud Torque 140 in-lb (15.82 Nm)
Weight 5.08lb (2.3 kg)



SKU 632085019914
Barcode # 1991-BSS
Brand Blue Sea Systems
Shipping Weight 2.3500kg
Shipping Width 0.390m
Shipping Height 0.080m
Shipping Length 0.130m
Shipping Cubic 0.004056000m3
