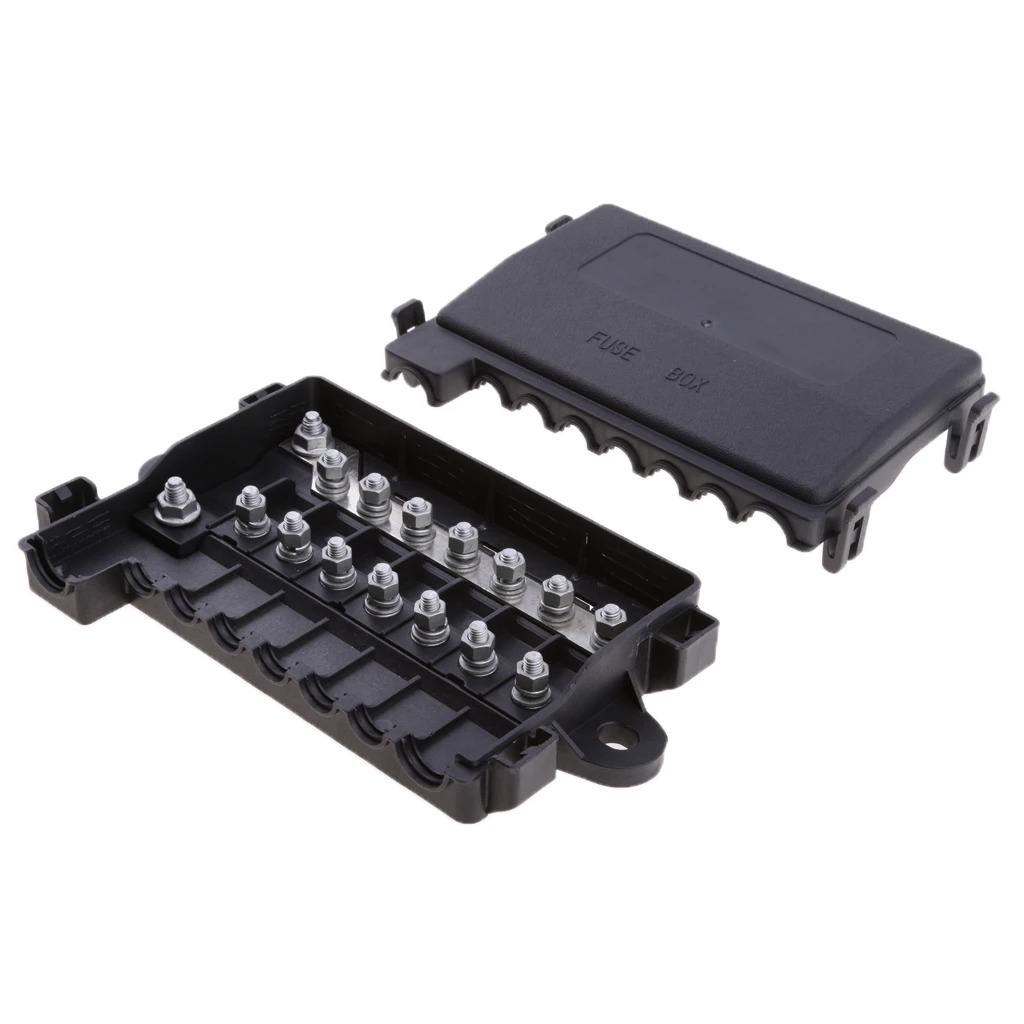

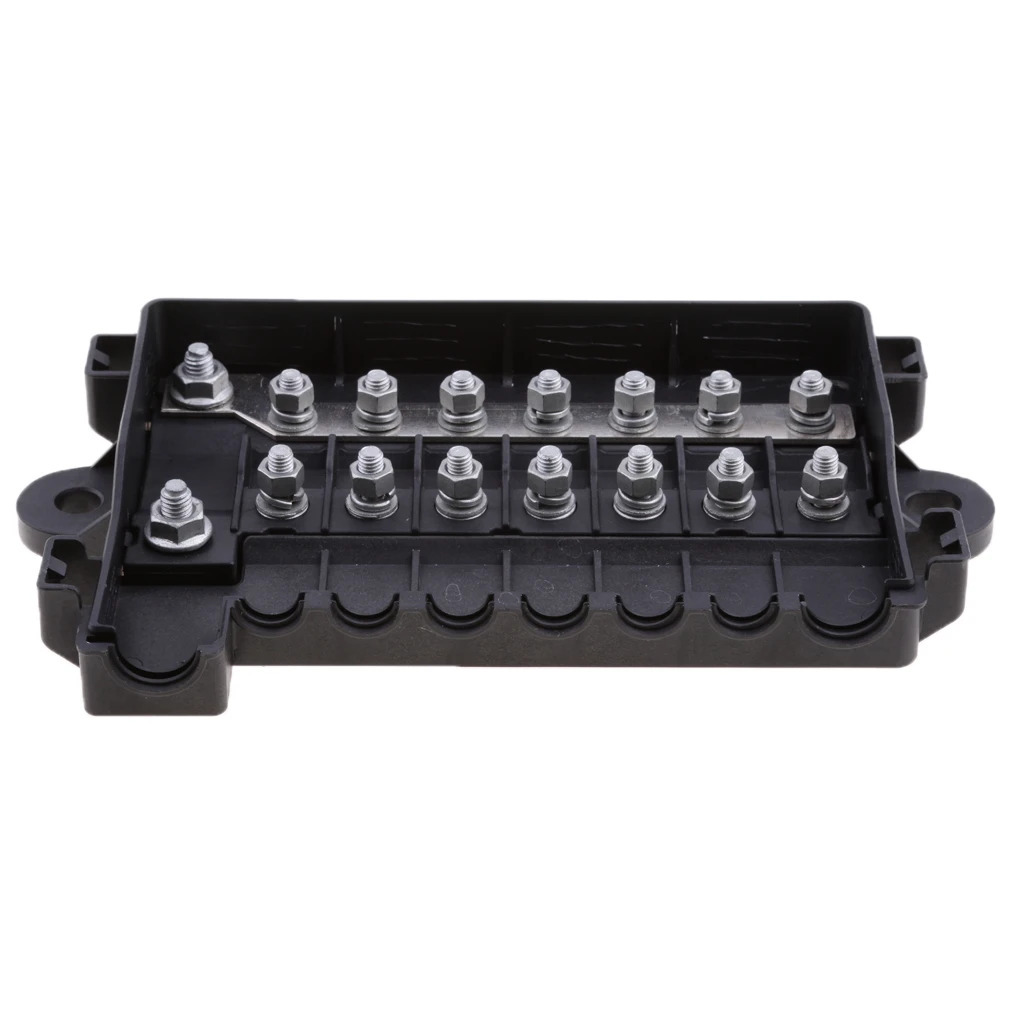

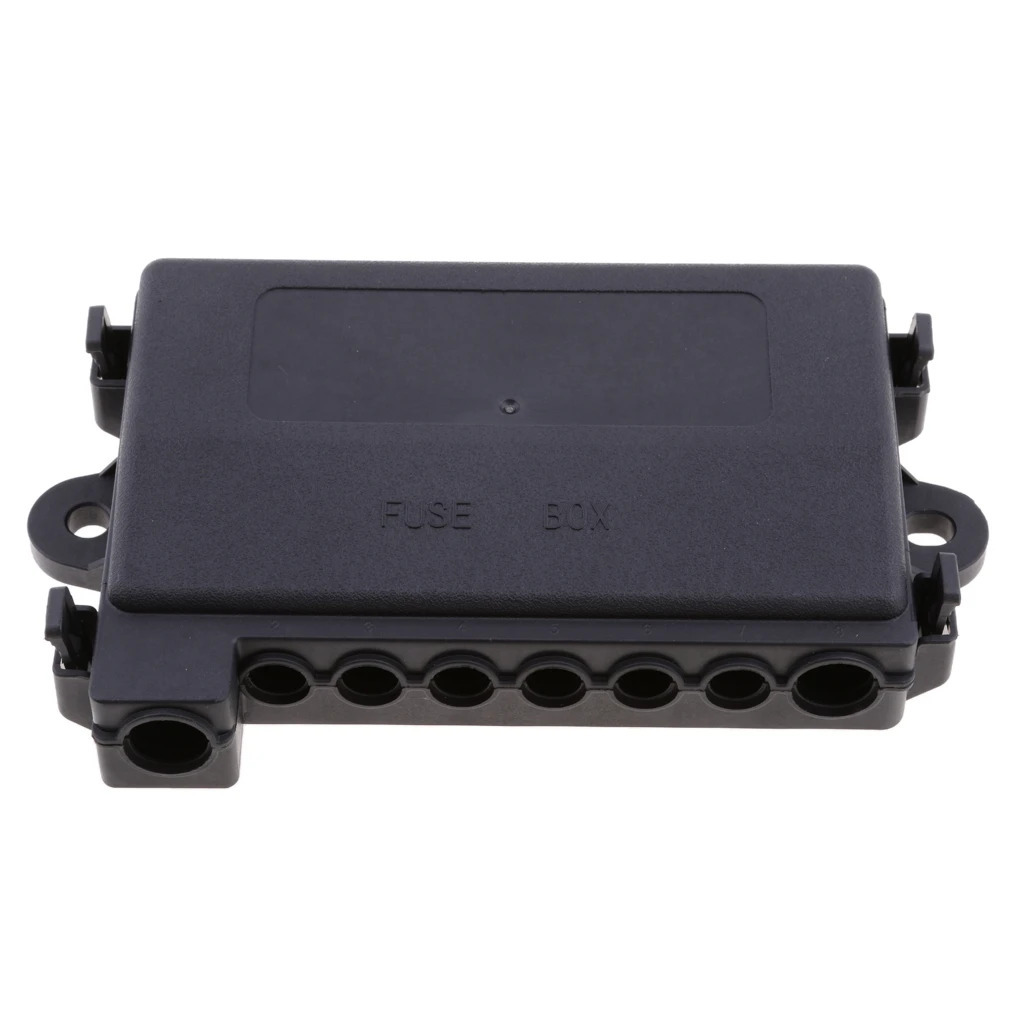

The 7 Circuit MIDI Fuse Block uses the 58V M6 Range of AMI®/MIDI® fuses p/n FMIDI30-FMIDI200

If you're looking for a reliable way to protect your vehicle's electrical system, the MIDI & MEGA Fuse Holder is an excellent choice. This fuse holder is designed to hold 7 MIDI and 1 x MEGA fuse on the input side, giving you the versatility you need to protect your vehicle's electrical system from damage.

Combined Current Capacity 300A Max

Fuses are not included (M6 MIDI® Fuses required)

  • Durable Finish and Conductivity
  • Easy Installation for Multiuse Combinations
  • MEGA® fuse only assembled one.
  • MIDI® fuse can choose multiple parallel.
Maximum Amperage 40A-300A MEGA® Fuse input
30A-100A MIDI® Fuse outputs
Maximum Voltage
58V DC
Wire Size
20mm²
Fuse Screw
M6 x 0.8
Ring Terminal Size
M6 threaded studs. Steel / Zinc plated



SKU FHMIDI7
Barcode # FHMIDI7
Shipping Weight 0.3800kg
Shipping Width 0.190m
Shipping Height 0.040m
Shipping Length 0.110m
Shipping Cubic 0.000836000m3
