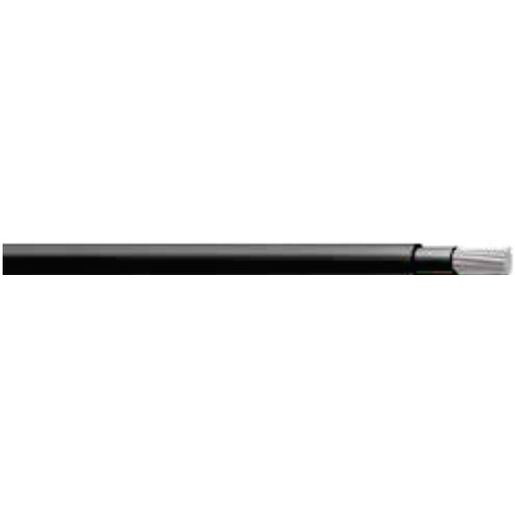

6TÜVB 6mm² DC Solar Cable SDI PV1-F Complaint Solar cable is the interconnection cable used in photovoltaic power generation.

Solar cables interconnect solar panels and other electrical components of a photovoltaic system.

Solar cables are designed to be UV resistant and weather resistant.

They can be used within a large temperature range.

Features:

  • PV1-F Complaint
  • RoHS COMPLIANT
  • Excellent Flexibility, Ezi Tear Webbing
  • Flame Retardant 120°C, Low Smoke Zero Halogen
  • UV Stabilised
  • TUV Rheinland Approved (Certificate number R50129983)
  • Compact Design

Applications: Inter connection in photovoltaic system for both residential and commercial installations

  • CONDUCTOR: Tinned Copper, Class 5 in accordance with IEC 60228
  • INSULATION: Electron beam Cross linked compounds
  • SHEATH: Electron beam Cross linked compounds
  • VOLTAGE RATING: 0.9/1.8kV DC (0.6/1kV AC)
  • CORE COLOUR: Single Double Insulated - Black Sheath - Red or Black Core / Figure 8 Black Sheath - Red & Black Cores
  • PACK: Cut to length, 100m & 500m
Model 6TÜVB
Cable Type SDI
Core Colour Black
Nominal Area (mm²) 6mm²
Electrical Resistance at 20°C (ohm/km) 3.39
Temp Rating 120°C
Nominal O.D. (mm²) 5.3mm²
Mass (kg/100m) 5.3kg
Bending Radius 4 x D



SKU CAS6MMPV
Barcode # 6TÜVB
Brand Elcon Cables
Shipping Weight 0.0800kg
Shipping Width 0.100m
Shipping Height 0.020m
Shipping Length 0.100m
Shipping Cubic 0.000200000m3
