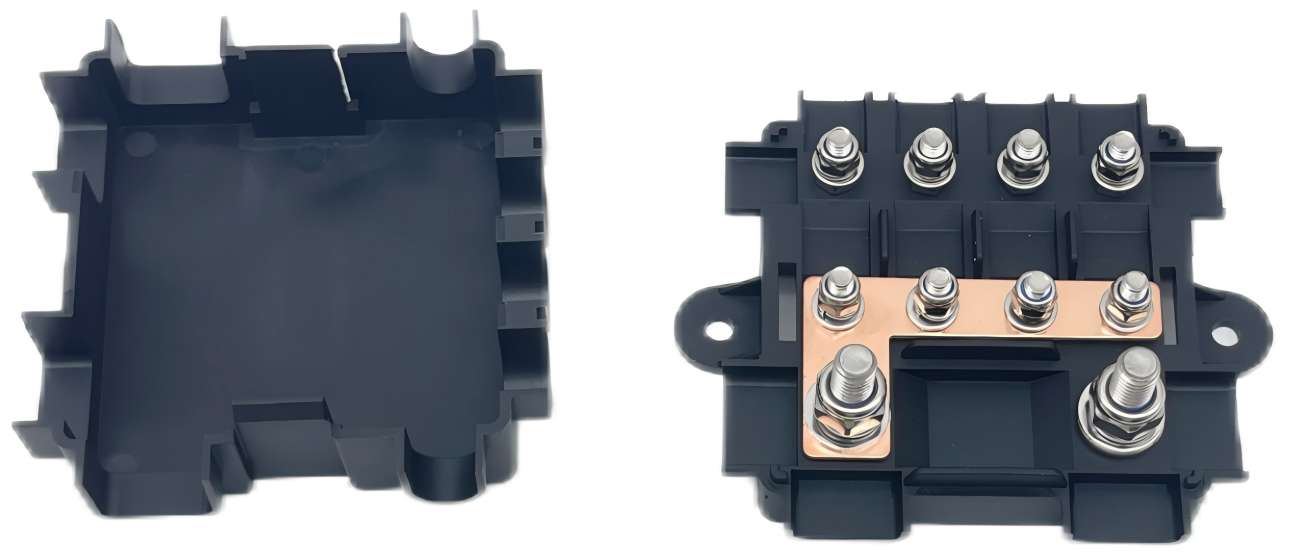

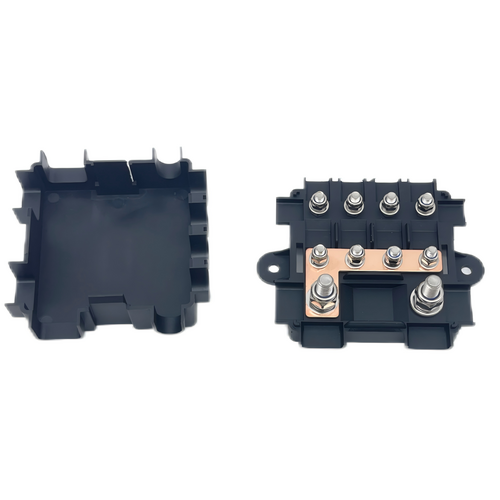

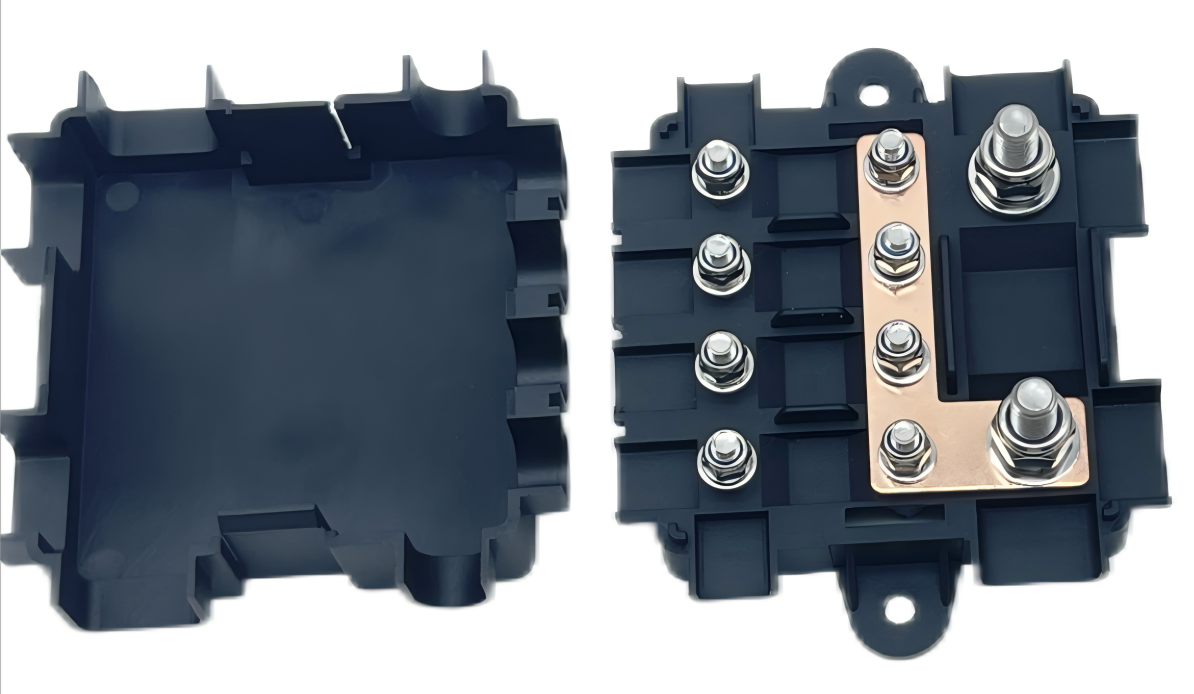

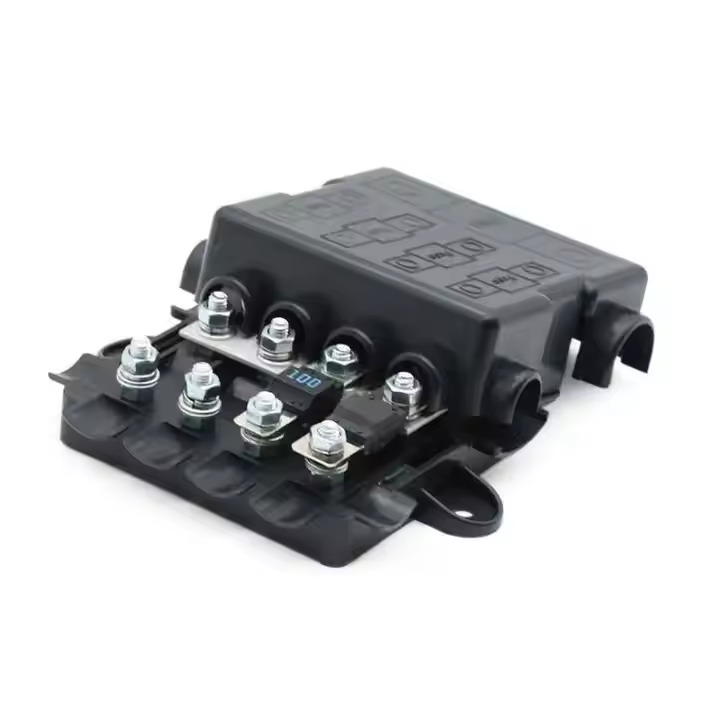

The 5 Circuit MIDI Fuse Block uses the 32V M5 Range of AMI®/MIDI® fuses p/n BSS5250-BSS5260

If you're looking for a reliable way to protect your vehicle's electrical system, the MIDI & MEGA Fuse Holder is an excellent choice. This fuse holder is designed to hold 4 MIDI and 1 x MEGA fuse, giving you the versatility you need to protect your vehicle's electrical system from damage.

Combined Current Capacity 250A Max (70mm² 000AWG Cable Input)

Fuses are not included (M5 MIDI® Fuses / MEGA® Fuses required)

  • Durable Finish and Conductivity
  • Easy Installation for Multiuse Combinations
  • 1 x MEGA® Fuse Outputs.
  • 4 x MIDI® Fuse Outputs.
Maximum Amperage 40A-250A MEGA® Fuse
30A-200A MIDI® Fuse outputs
Maximum Voltage
32V DC
Wire Size Input: 70mm² (00AWG)
Output: 70mm² (00AWG) MEGA® Fuse
Output: 25mm² (00AWG) MIDI® Fuse
Fuse Screw
M6 x 0.8
Ring Terminal Size

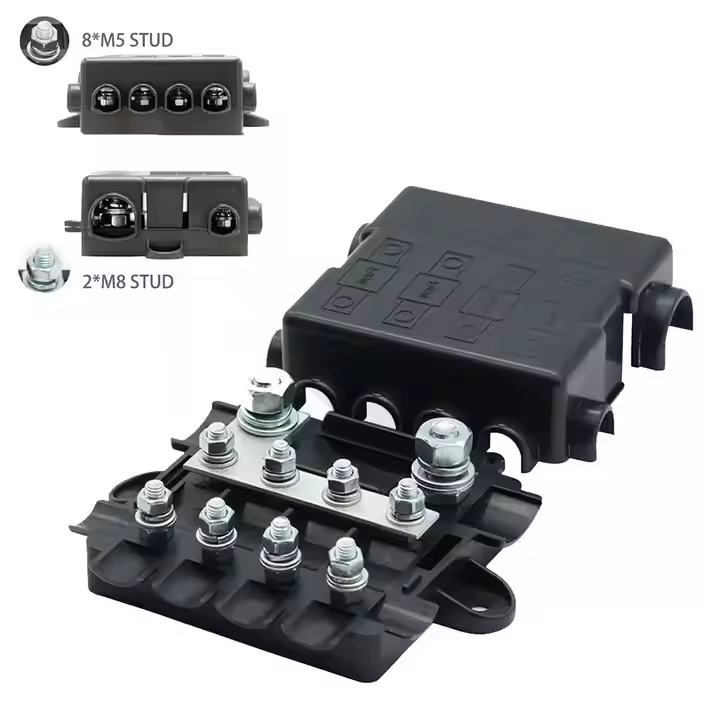

M5 / M8 threaded studs. Steel



SKU FHMIDI4
Shipping Weight 0.2400kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.145m
Shipping Cubic 0.000725000m3
