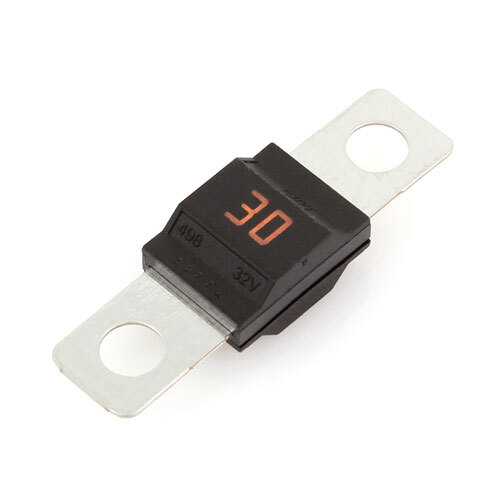

MIDI® Fuses are a cost-effect, space saving protection solution for high current wiring. MIDI® Fuses are common standard circuit protection devices for automobiles and trucks.

The fuse features a bolt-on design that saves space and fits right in to your application or project.Compact fuse for main or branch 30 to 200 Amp circuit protection

  • Slow-acting type fuses ideal for electronic devices
  • Standard circuit protection device for automobiles and trucks
  • Tin-plated connector blades for corrosion resistance
  • Visible indication of blown condition
  • Color-coded for easy amperage identification
  • TWO PER PACKAGE
Voltage Rating 32V DC
Interrupting Rating 2000A @ 32V DC
Terminals Material Tin plated Copper
Black Housing Material PA66-GF25 (U.L. 94 Flammability rating – V0)
Clear Housing Material PA6/66 (U.L. 94 Flammability rating – HB)
Mounting Torque M5 4.5 Nm +/- 1Nm
Mounting Torque M6 6.0 Nm +/- 1Nm



SKU BSS52
Brand Littelfuse
Shipping Weight 0.0100kg
Shipping Width 0.045m
Shipping Height 0.010m
Shipping Length 0.025m
Shipping Cubic 0.000011000m3
