With an Australian manufacturing heritage spanning over 60 years, Key Tubing & Electrical has an unsurpassed record of providing cost effective solutions to both national and global organisations.

All marine cable is RoHS compliant and made of Tinned Copper Wire which gives it a considerably longer life cycle.

Voltage Rating = 120V DC / 50V AC - Not for mains connection.

  • APPLICATIONS: Pleasure Craft, General Purpose Marine Wiring
  • CONDUCTOR: TINNED COPPER WIRE (TCW) to AS/NZS 1125
  • INSULATION: RoHS Compliant V90 PVC to AS3808

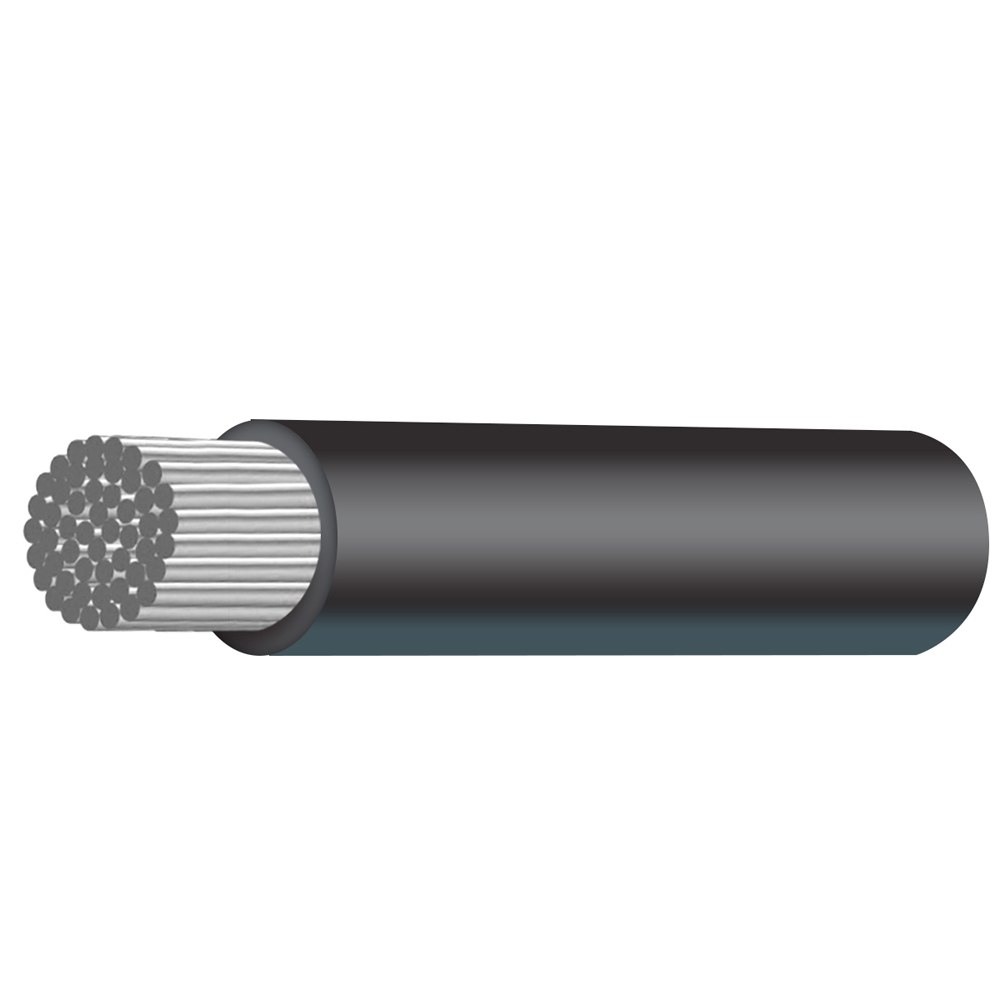

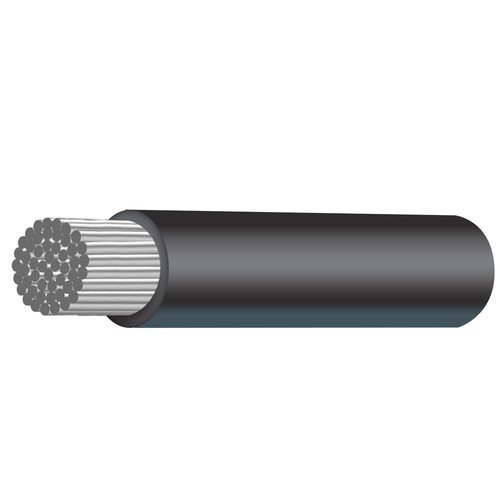

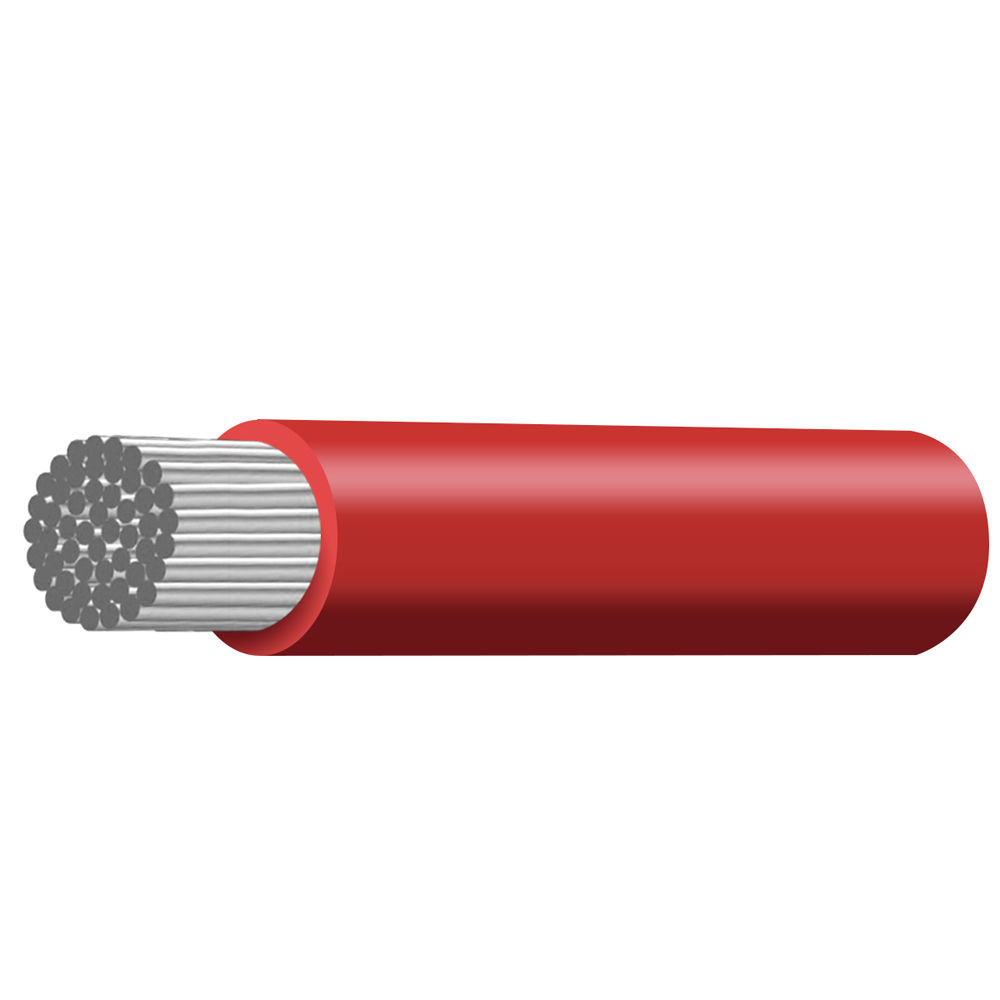

  • CORE COLOUR: Black, Red, stripes by request
  • PACK: Cut to length, 50, 100 metres, other packs by request
Key Tubing Code
Tycab Code MBS145503
Nearest AWG 2 AWG
* MM Industry Equivalent 32mm
Strand No. / Size 399/0.32
Nominal Area (mm²) 32.0mm
**AMP Rating @ 30°C 188 A
Insulation Thickness (mm) 1.7mm
Electrical Resistance @ 20°C (ohm/km) 0.62Ω
Nominal O.D. (mm) 10.3mm
Mass (kg/100m) 36.5kg

* MM is an industry term that identifies cable size and is not CONDUCTOR CROSS SECTION AREA

** AMP RATING: TO JASO D609 de rating factors apply

De-Rating Factors for Bundling of Single Core Cables

No. Of Cables 1 2 3 4 5 6 7 or 8 9 or 10
De-Rating Factor 1.00 0.80 0.70 0.60 0.55 0.5 0.45 0.4

De-Rating Factors for Ambient Temperatures °C

No. Of Cables 30°c 40°c 50°c 60°c 70°c
De-Rating Factor 1.00 0.90 0.76 0.60 0.45



SKU CATIN35MMSINGLE
Brand Tycab
Shipping Weight 0.3650kg
Shipping Width 0.150m
Shipping Height 0.025m
Shipping Length 0.150m
Shipping Cubic 0.000562500m3
