Our range of battery master switches that are suitable for applications on a wide range of passenger cars, trucks and marine as well as stationary engines such as generators.

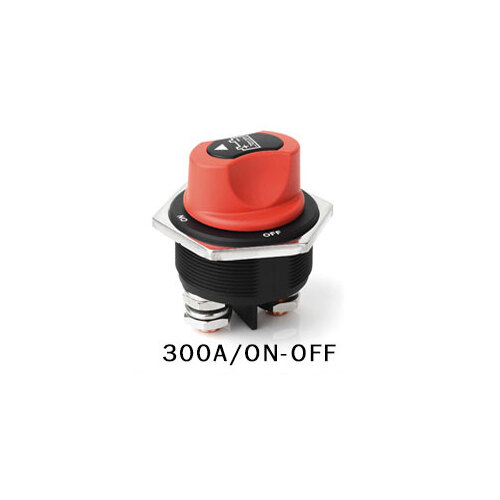

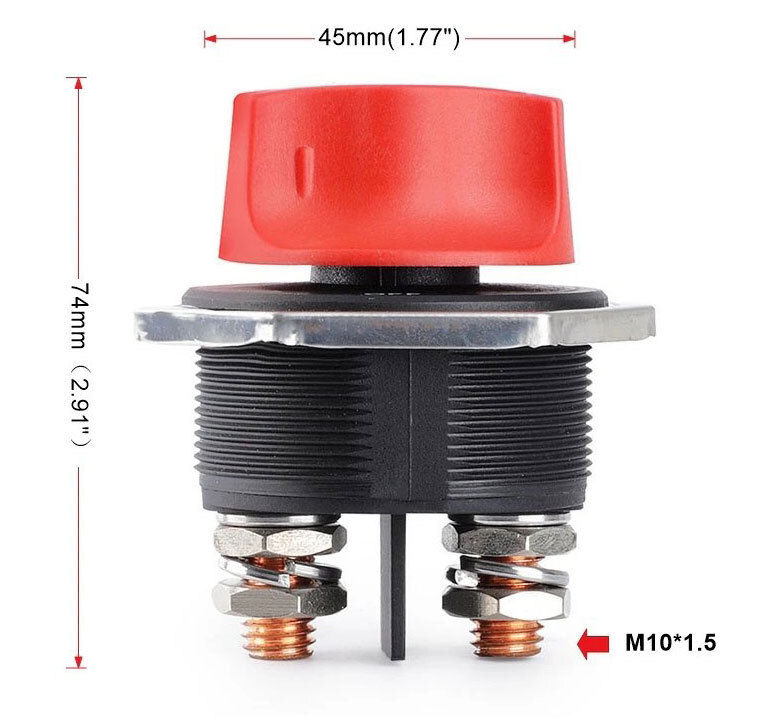

A Compact Switch at just 45mm round, requiring a mounting opening of just 29mm diameter

Features an easy turn knob, ideally suited for use with passenger cars, light trucks and stationary engines

IP56 Rated

  • Continuous rating : 300AMPS 32VDC MAX
  • Intermittent rated current : 450A
  • Rated starting current : 2000A for 5 seconds
  • Mounting hole diameter : 52mm
  • Diameter of terminal post : 10mm
  • Contact resistance : 50M MAX



SKU BS300A
Barcode # YJ-WBS016
Shipping Weight 0.1800kg
Shipping Width 0.075m
Shipping Height 0.080m
Shipping Length 0.075m
Shipping Cubic 0.000450000m3
