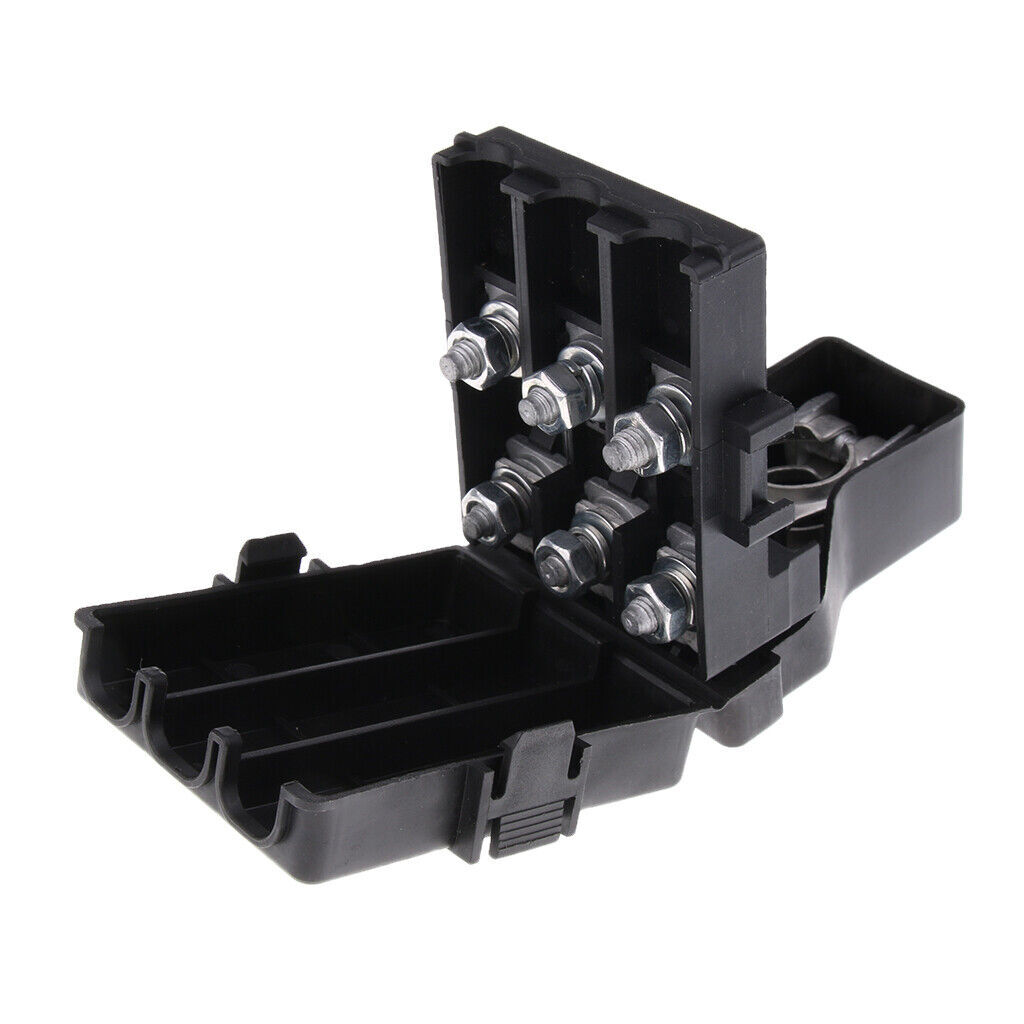

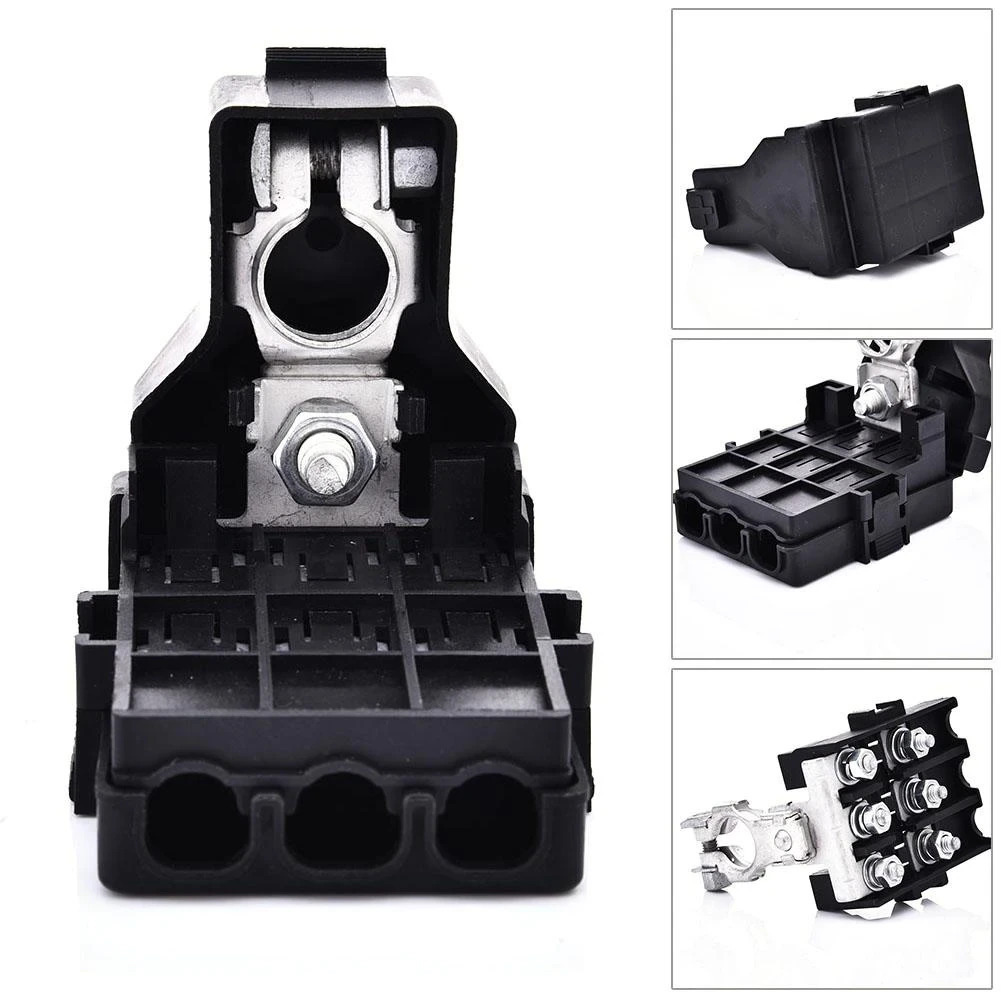

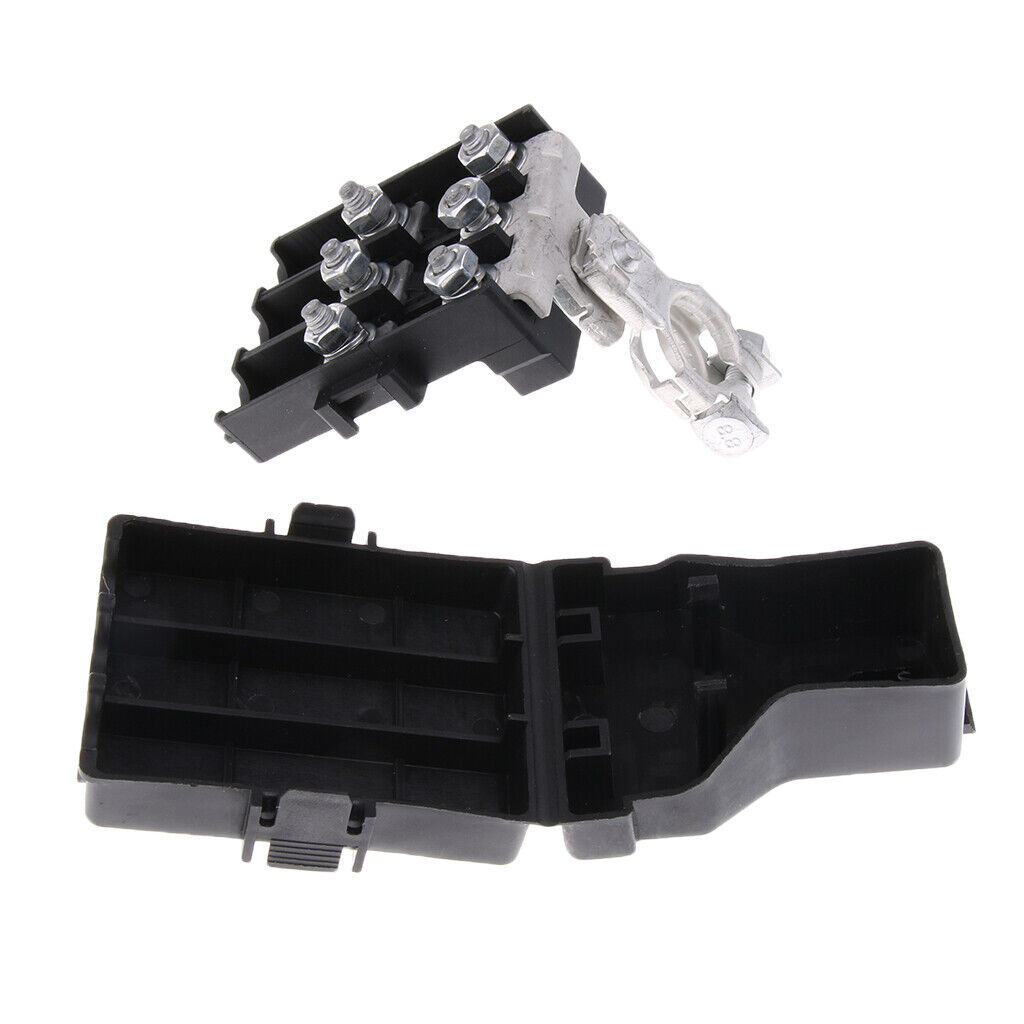

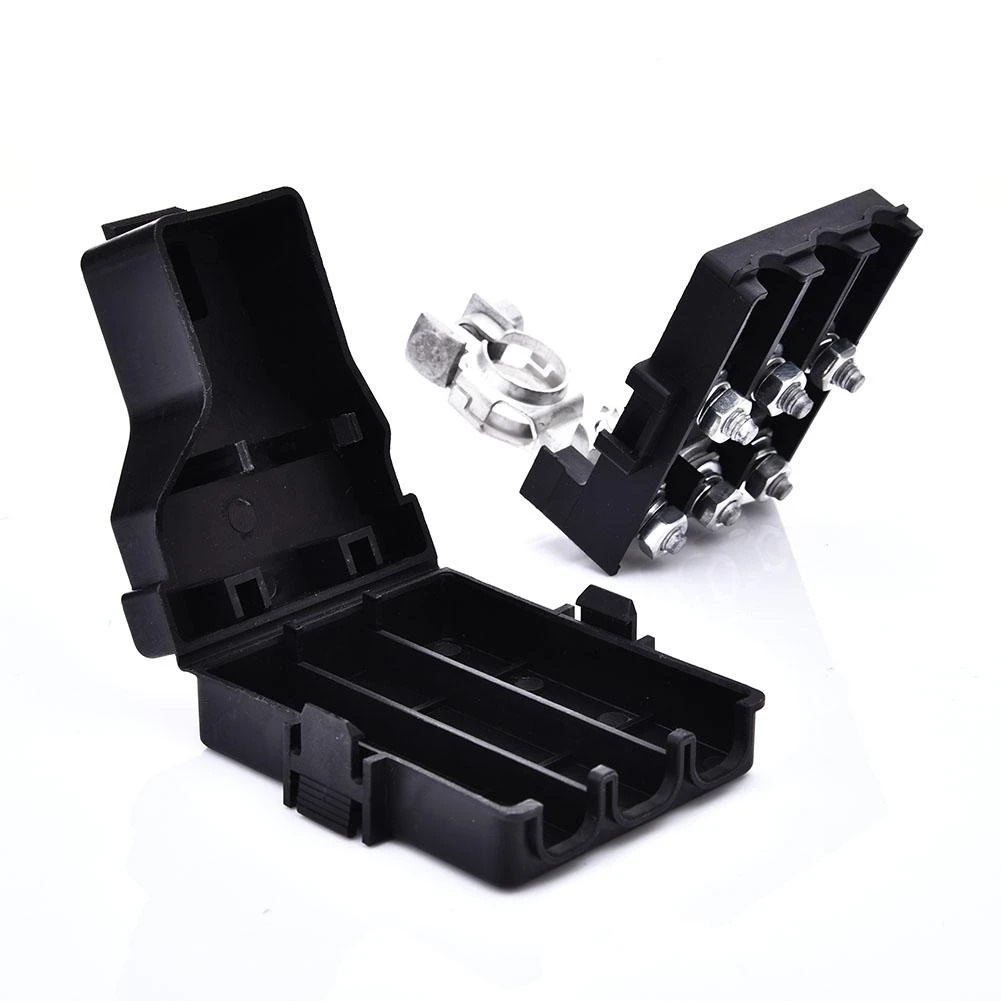

The 7 Circuit Terminal Mount MIDI Fuse Block uses the 58V M6 Range of AMI®/MIDI® fuses p/n FMIDI30-FMIDI200

The Terminal Mount MIDI® fuse holder is designed for use with bolt-down MIDI® fuses.

It may be installed directly to the battery terminal post and gives 3 MIDI® fuse outputs

The 90° design of the block aids in tight installation locations.

Fuses are not included (M6 MIDI® Fuses required)

  • Material: ABS Plastic
  • Size: Approx 75*90*65mm
  • Black plastic cover, easy to operate, splash and dust-proof design
  • It is widely used in the automotive cars boats battery.
Maximum Amperage 200A
Maximum Voltage
58V DC
Wire Size
20mm²
Fuse Screw
M6 x 0.8
Ring Terminal Size
M6 threaded studs. Steel / Zinc plated



SKU FHMIDITERM
Barcode # FHMIDITERM
Shipping Weight 0.1800kg
Shipping Width 0.100m
Shipping Height 0.070m
Shipping Length 0.090m
Shipping Cubic 0.000630000m3
