With an Australian manufacturing heritage spanning over 60 years, Key Tubing & Electrical has an unsurpassed record of providing cost effective solutions to both national and global organisations.

All Key Tubing cable is made from the highest quality Oxygen Free Plain Copper Wire and is RoHS compliant.

Voltage Rating = 120V DC / 50V AC - Not for mains connection.

  • APPLICATIONS: General Purpose Automotive Wiring
  • CONDUCTOR: OXYGEN FREE Plain Copper Wire to AS/NZS 1125
  • INSULATION: V90 PVC Insulated to AS/NZS 3808
  • CORE COLOUR: Black, Blue, Brown, Green, Grey, Orange, Pink, Red, Violet, White, Yellow and the widest range of trace colours
  • PACK: Cut to length, 30, 100, 500, 1000 metres, other packs by request

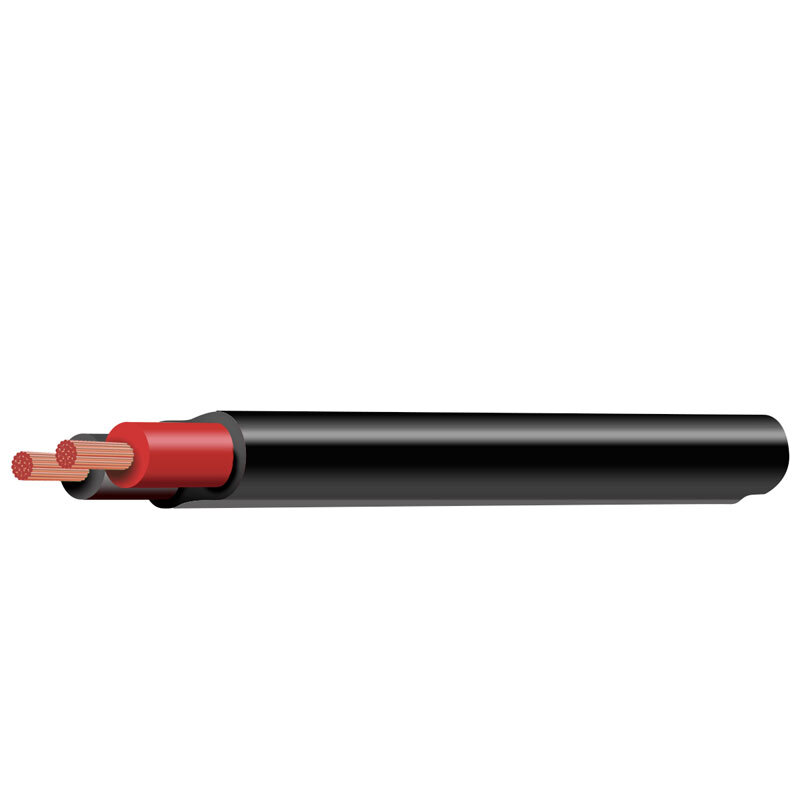

Key Tubing Code
Tycab Code AWC2252032
Nearest AWG 4 AWG
* MM Industry Equivalent 20mm
No. of Cores 2
Strand No. / Size 252/0.32
Nominal Area (mm²) 20.26mm
**AMP Rating @ 30°C 108.0 A
Insulation Thickness (mm) 1.1mm
Sheath Thickness (mm) 0.8mm
Electrical Resistance @ 20°C (ohm/km) 1.4Ω
Nominal O.D. (mm) 10.30 x 18.6mm
Mass (kg/100m) 53.0kg

* MM is an industry term that identifies cable size and is not CONDUCTOR CROSS SECTION AREA

** AMP RATING: TO JASO D609 de rating factors apply

De-Rating Factors for Bundling of Single Core Cables

No. Of Cables 1 2 3 4 5 6 7 or 8 9 or 10
De-Rating Factor 1.00 0.80 0.70 0.60 0.55 0.5 0.45 0.4

De-Rating Factors for Ambient Temperatures °C

No. Of Cables 30°c 40°c 50°c 60°c 70°c
De-Rating Factor 1.00 0.90 0.76 0.60 0.45



SKU CA20MM
Brand Key Tubing Electrical
Shipping Weight 0.5300kg
Shipping Width 0.150m
Shipping Height 0.019m
Shipping Length 0.150m
Shipping Cubic 0.000427500m3
