With an Australian manufacturing heritage spanning over 60 years, Key Tubing & Electrical has an unsurpassed record of providing cost effective solutions to both national and global organisations.

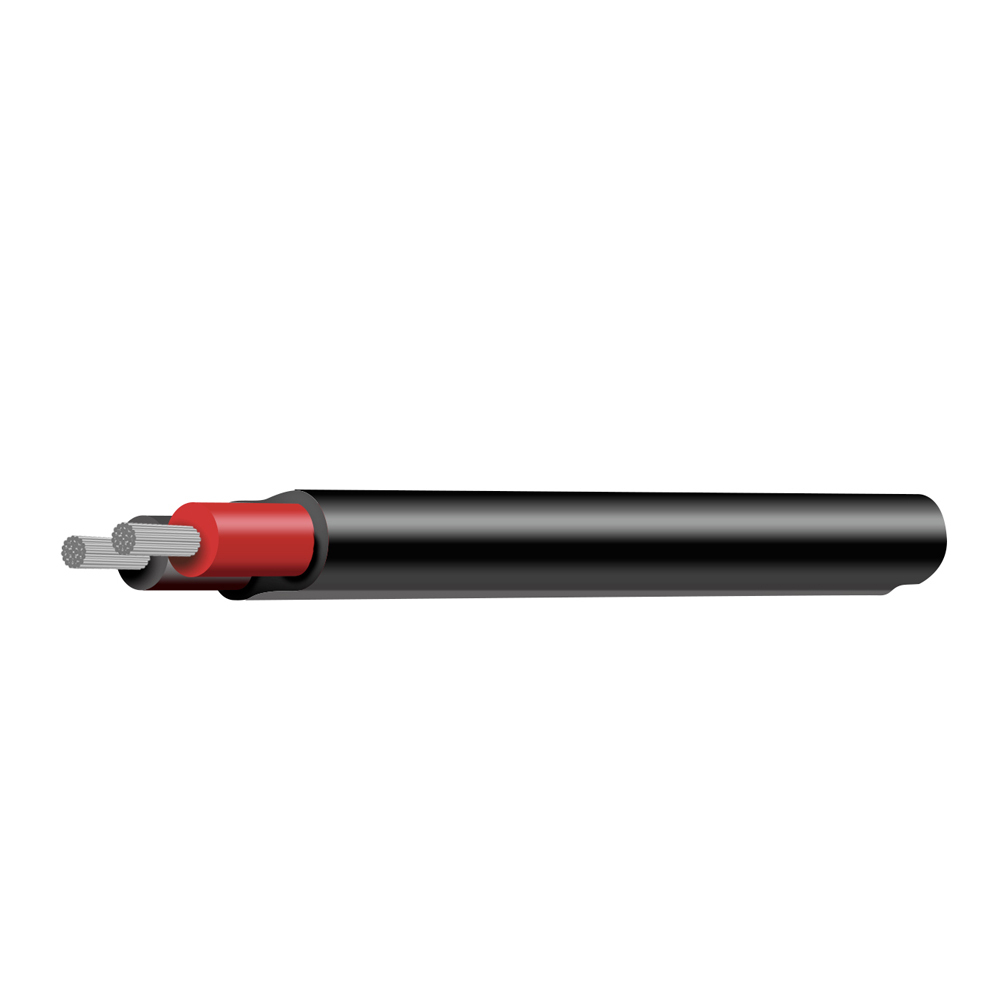

All marine cable is RoHS compliant and made of Tinned Copper Wire which gives it a considerably longer life cycle.

Voltage Rating = 120V DC / 50V AC - Not for mains connection.

  • APPLICATIONS: Pleasure Craft, General Purpose Marine Wiring
  • CONDUCTOR: TINNED COPPER WIRE (TCW) to AS/NZS 1125
  • INSULATION: RoHS Compliant V90 PVC to AS3808
  • CORE COLOUR: Black, Red, stripes by request
  • PACK: Cut to length, 50, 100 metres, other packs by request
Key Tubing Code
Tycab Code MWS2168032
Nearest AWG 6 AWG
* MM Industry Equivalent 14mm
Strand No. / Size 168/0.32
Nominal Area (mm²) 13.5mm
**AMP Rating @ 30°C 82 A
Insulation Thickness (mm) 0.9mm
Sheath Thickness (mm) 0.8mm
Electrical Resistance @ 20°C (ohm/km) 1.42Ω
Nominal O.D. (mm) 8.8 x 16.0mm
Mass (kg/100m) 36.0kg

* MM is an industry term that identifies cable size and is not CONDUCTOR CROSS SECTION AREA

** AMP RATING: TO JASO D609 de rating factors apply

De-Rating Factors for Bundling of Single Core Cables

No. Of Cables 1 2 3 4 5 6 7 or 8 9 or 10
De-Rating Factor 1.00 0.80 0.70 0.60 0.55 0.5 0.45 0.4

De-Rating Factors for Ambient Temperatures °C

No. Of Cables 30°c 40°c 50°c 60°c 70°c
De-Rating Factor 1.00 0.90 0.76 0.60 0.45



SKU CATIN14MMTWIN
Brand Tycab
Shipping Weight 0.3600kg
Shipping Width 0.150m
Shipping Height 0.020m
Shipping Length 0.150m
Shipping Cubic 0.000450000m3
