With an Australian manufacturing heritage spanning over 60 years, Key Tubing & Electrical has an unsurpassed record of providing cost effective solutions to both national and global organisations.

All Key Tubing cable is made from the highest quality Oxygen Free Plain Copper Wire and is RoHS compliant.

Voltage Rating = 120V DC / 50V AC - Not for mains connection.

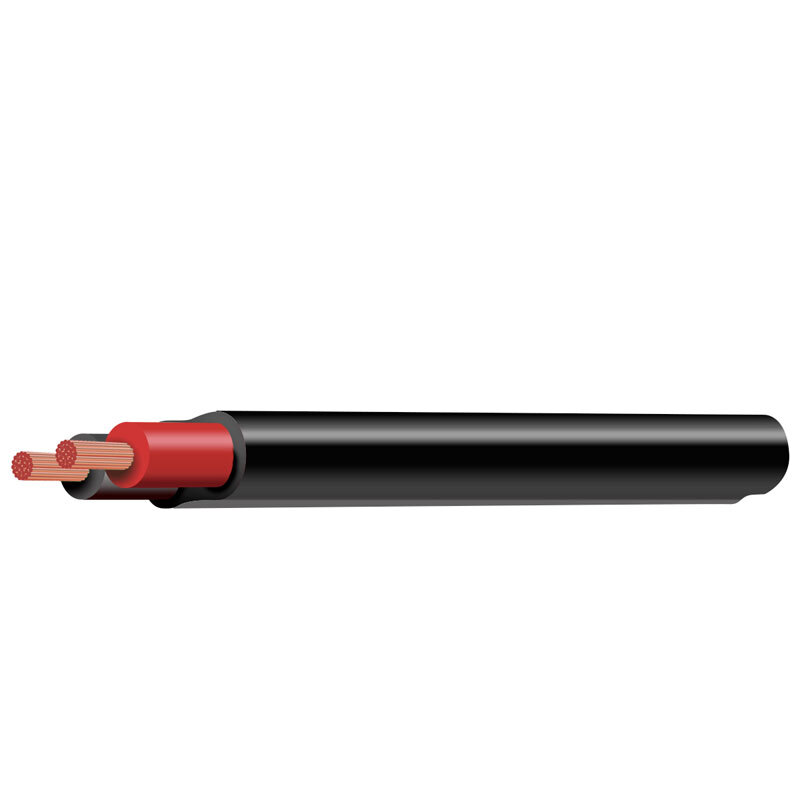

  • APPLICATIONS: General Purpose Automotive Wiring
  • CONDUCTOR: OXYGEN FREE Plain Copper Wire to AS/NZS 1125
  • INSULATION: V90 PVC Insulated to AS/NZS 3808
  • CORE COLOUR: Black, Blue, Brown, Green, Grey, Orange, Pink, Red, Violet, White, Yellow and the widest range of trace colours
  • PACK: Cut to length, 30, 100, 500, 1000 metres, other packs by request
Key Tubing Code KABC2TW192030
Tycab Code AWC2168032
Nearest AWG 6 AWG
* MM Industry Equivalent 14mm
No. of Cores 2
Strand No. / Size 192/0.32
Nominal Area (mm²) 13.57mm
**AMP Rating @ 30°C 82.4 A
Insulation Thickness (mm) 1.1mm
Sheath Thickness (mm) 0.8mm
Electrical Resistance @ 20°C (ohm/km) 1.4Ω
Nominal O.D. (mm) 8.80 x 16.0mm
Mass (kg/100m) 36.0kg

* MM is an industry term that identifies cable size and is not CONDUCTOR CROSS SECTION AREA

** AMP RATING: TO JASO D609 de rating factors apply

De-Rating Factors for Bundling of Single Core Cables

No. Of Cables 1 2 3 4 5 6 7 or 8 9 or 10
De-Rating Factor 1.00 0.80 0.70 0.60 0.55 0.5 0.45 0.4

De-Rating Factors for Ambient Temperatures °C

No. Of Cables 30°c 40°c 50°c 60°c 70°c
De-Rating Factor 1.00 0.90 0.76 0.60 0.45



SKU CA14MM
Brand Key Tubing Electrical
Shipping Weight 0.3600kg
Shipping Width 0.120m
Shipping Height 0.015m
Shipping Length 0.120m
Shipping Cubic 0.000216000m3
