With an Australian manufacturing heritage spanning over 60 years, Key Tubing & Electrical has an unsurpassed record of providing cost effective solutions to both national and global organisations.

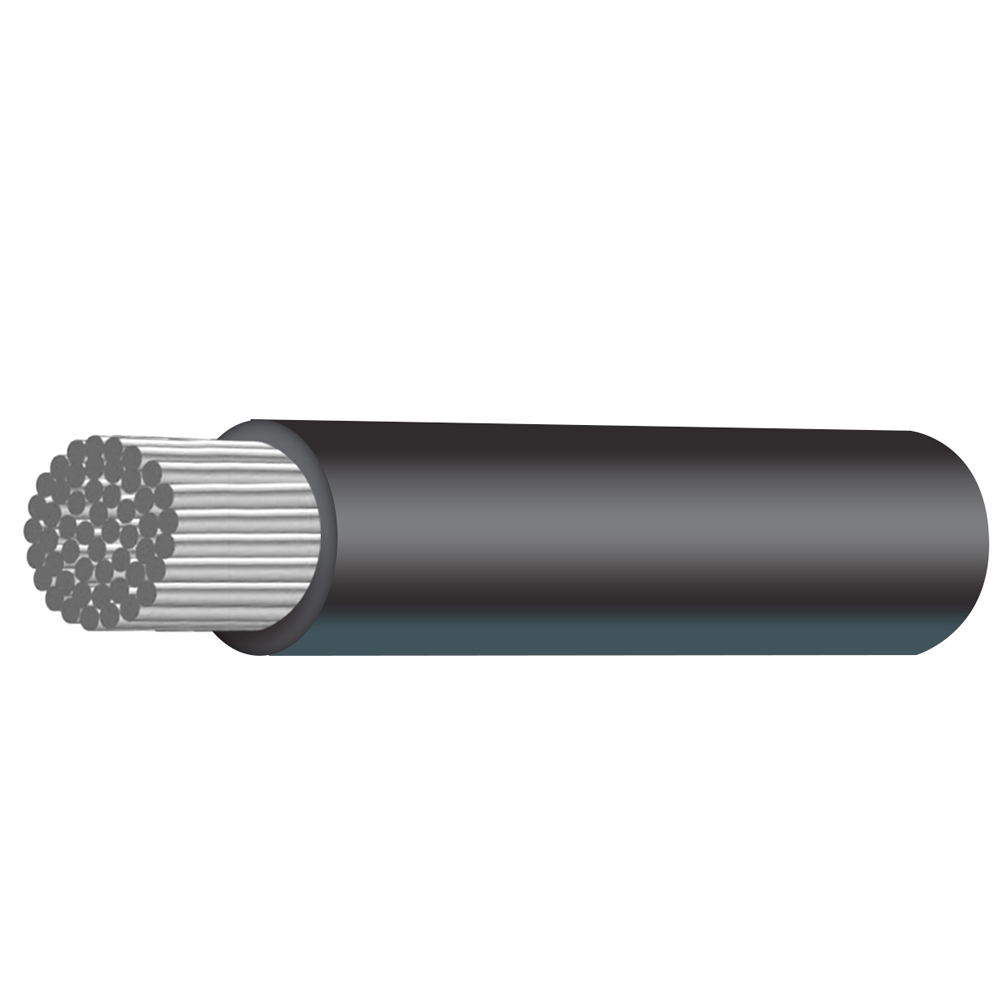

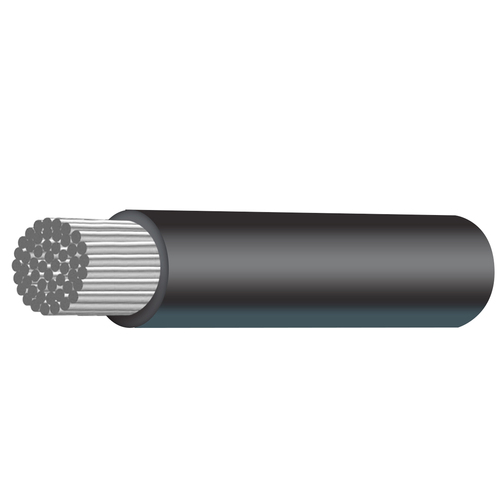

All marine cable is RoHS compliant and made of Tinned Copper Wire which gives it a considerably longer life cycle.

Voltage Rating = 120V DC / 50V AC - Not for mains connection.

  • APPLICATIONS: Pleasure Craft, General Purpose Marine Wiring
  • CONDUCTOR: TINNED COPPER WIRE (TCW) to AS/NZS 1125
  • INSULATION: RoHS Compliant V90 PVC to AS3808
  • CORE COLOUR: Black, Red, stripes by request
  • PACK: Cut to length, 50, 100 metres, other packs by request
Key Tubing Code
Tycab Code MBS122403
Nearest AWG 6 AWG
* MM Industry Equivalent 14mm
Strand No. / Size 224/0.32
Nominal Area (mm²) 13.57mm
**AMP Rating @ 30°C 110 A
Insulation Thickness (mm) 1.1mm
Electrical Resistance @ 20°C (ohm/km) 1.24Ω
Nominal O.D. (mm) 7.8mm
Mass (kg/100m) 17.7kg

* MM is an industry term that identifies cable size and is not CONDUCTOR CROSS SECTION AREA

** AMP RATING: TO JASO D609 de rating factors apply

De-Rating Factors for Bundling of Single Core Cables

No. Of Cables 1 2 3 4 5 6 7 or 8 9 or 10
De-Rating Factor 1.00 0.80 0.70 0.60 0.55 0.5 0.45 0.4

De-Rating Factors for Ambient Temperatures °C

No. Of Cables 30°c 40°c 50°c 60°c 70°c
De-Rating Factor 1.00 0.90 0.76 0.60 0.45



SKU CATIN16MMB
Brand Tycab
Shipping Weight 0.1770kg
Shipping Width 0.120m
Shipping Height 0.020m
Shipping Length 0.120m
Shipping Cubic 0.000288000m3
