CHARGE ON THE GO

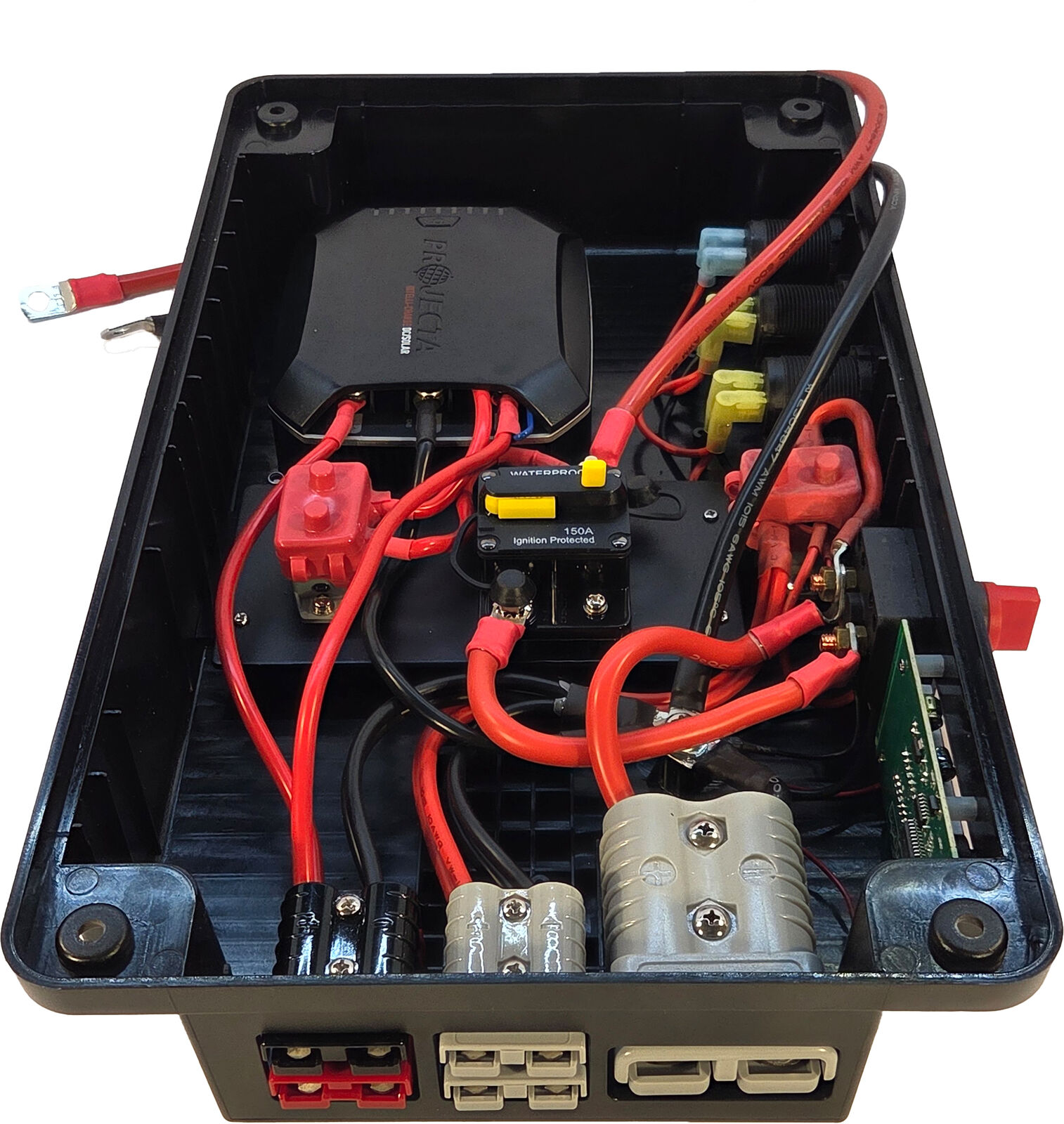

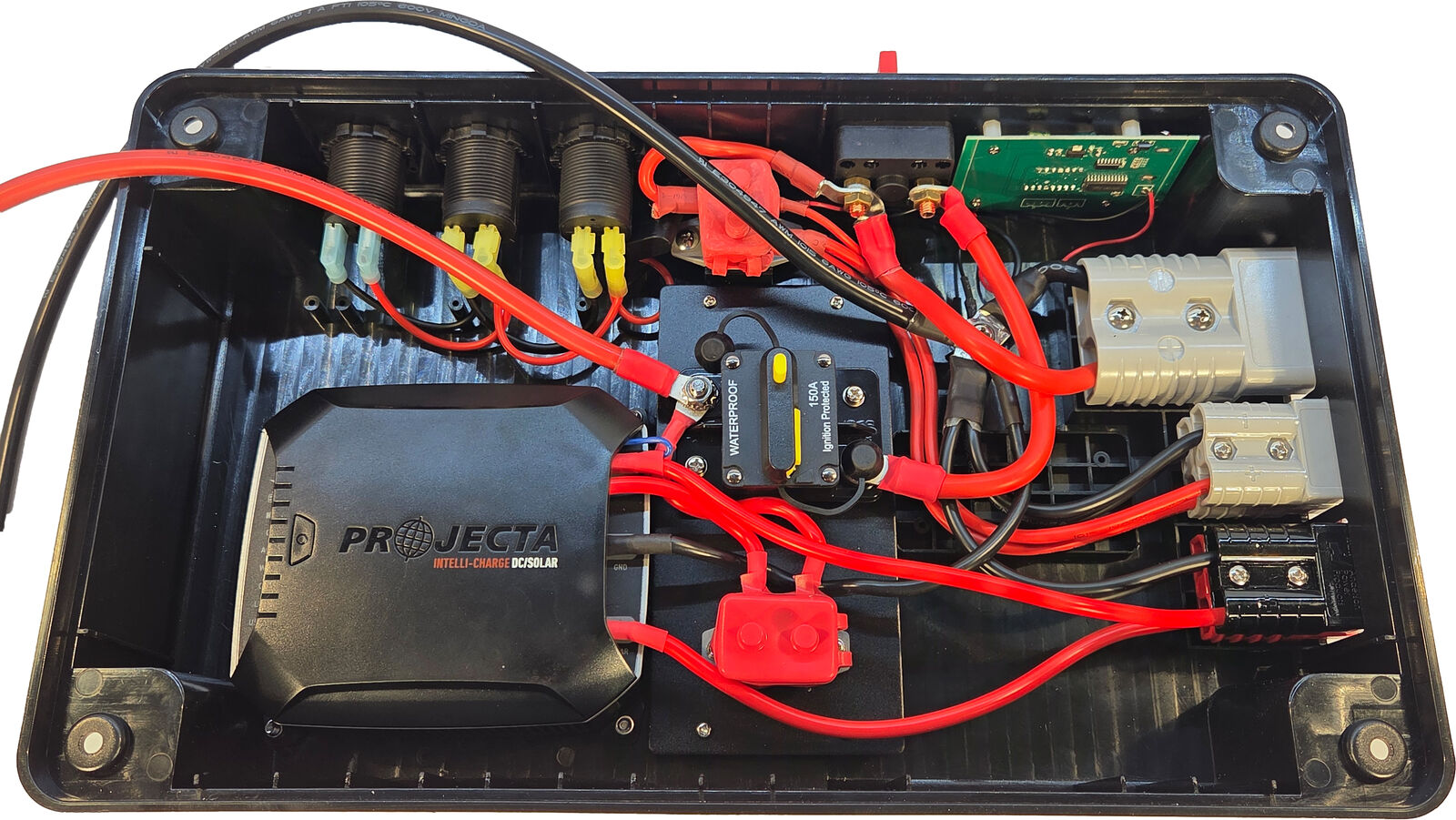

THIS BATTERY BOX HAS BEEN FITTED WITH A PROJECTA IDC25X 25A DC-DC CHARGER W/MPPT SOLAR INPUT SO YOU CAN CHARGE VIA VEHICLE AND/OR SOLAR.

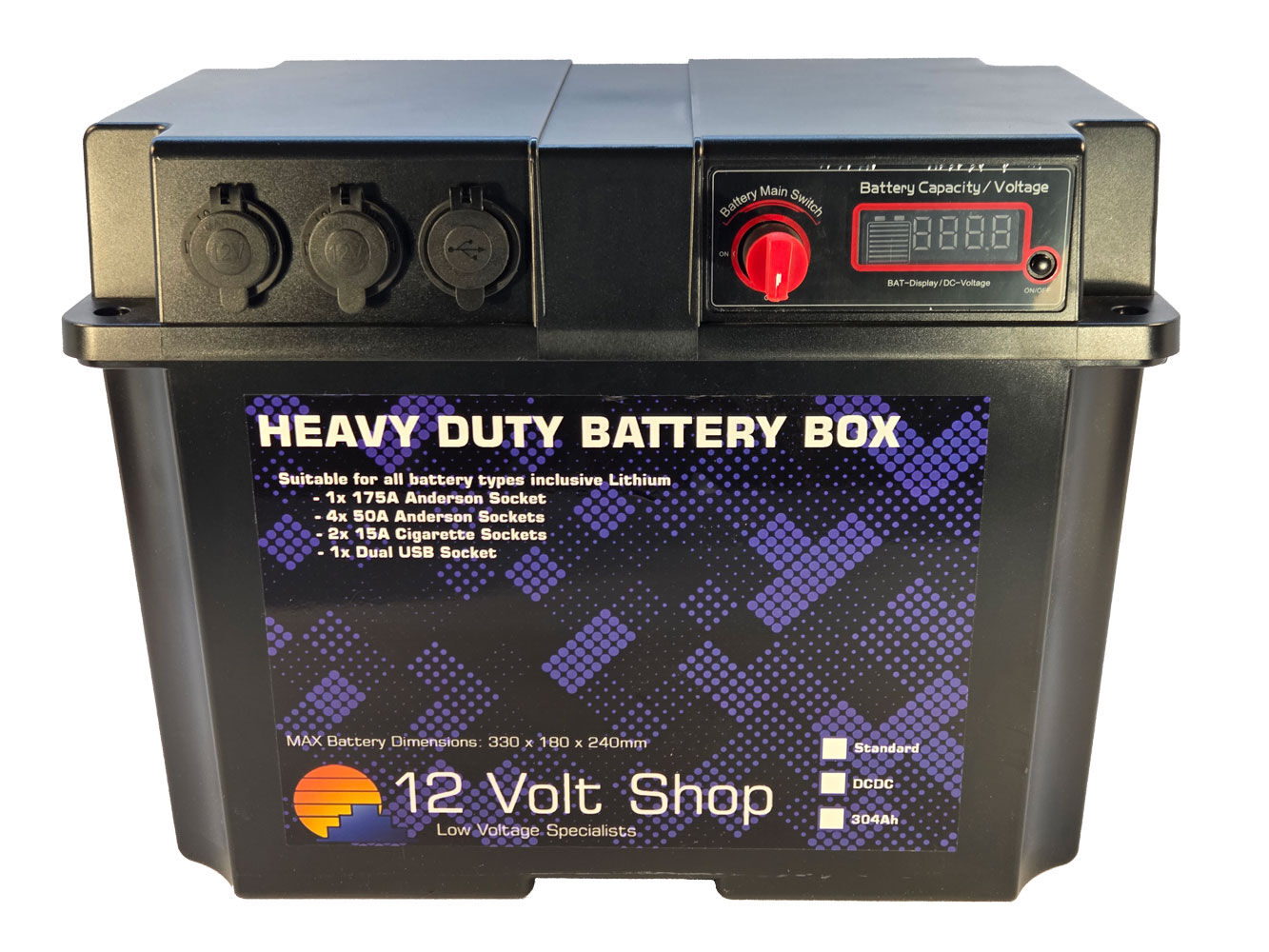

Built in house this 12VS Power On The Go portable battery box features all the common connections that would typically be required for outdoor recreation power needs.

It is capable of holding a deep cycle battery 330 x 180 x 240mm (Battery sold separately).

Once fitted with a battery, the box can be used to power campsite equipment and connected to a solar panel for recharging.

Made from durable ABS plastic which is UL 94V-0 complaint for flammability of plastic products, this battery box is a high-quality unit that will last for many years to come.

CHARGING YOUR BATTERY

• Vehicle Input: Via black 50A Anderson plug. (compatible with Grey Anderson plugs) With alternator input of 9-32v there isnt any vehicle this battery box wont charge from.
• Solar Input: Via Red 50A Anderson plug. Max solar input is 32v 400W (200W x 2) *Solar Panels must be unregulated. This circuit is separate to the Grey Anderson plugs and as such isolation switch can be left off when charging. This is protected by a 50A Manual Reset Circuit Breaker
• Regulated charging sources such as Solar Blankets or 240V AC Chargers can be fed through any Grey Anderson plug, make sure isolation switch is turned on for these outlets to allow charge. There is also sufficient room within the casing to fit many of these accessories

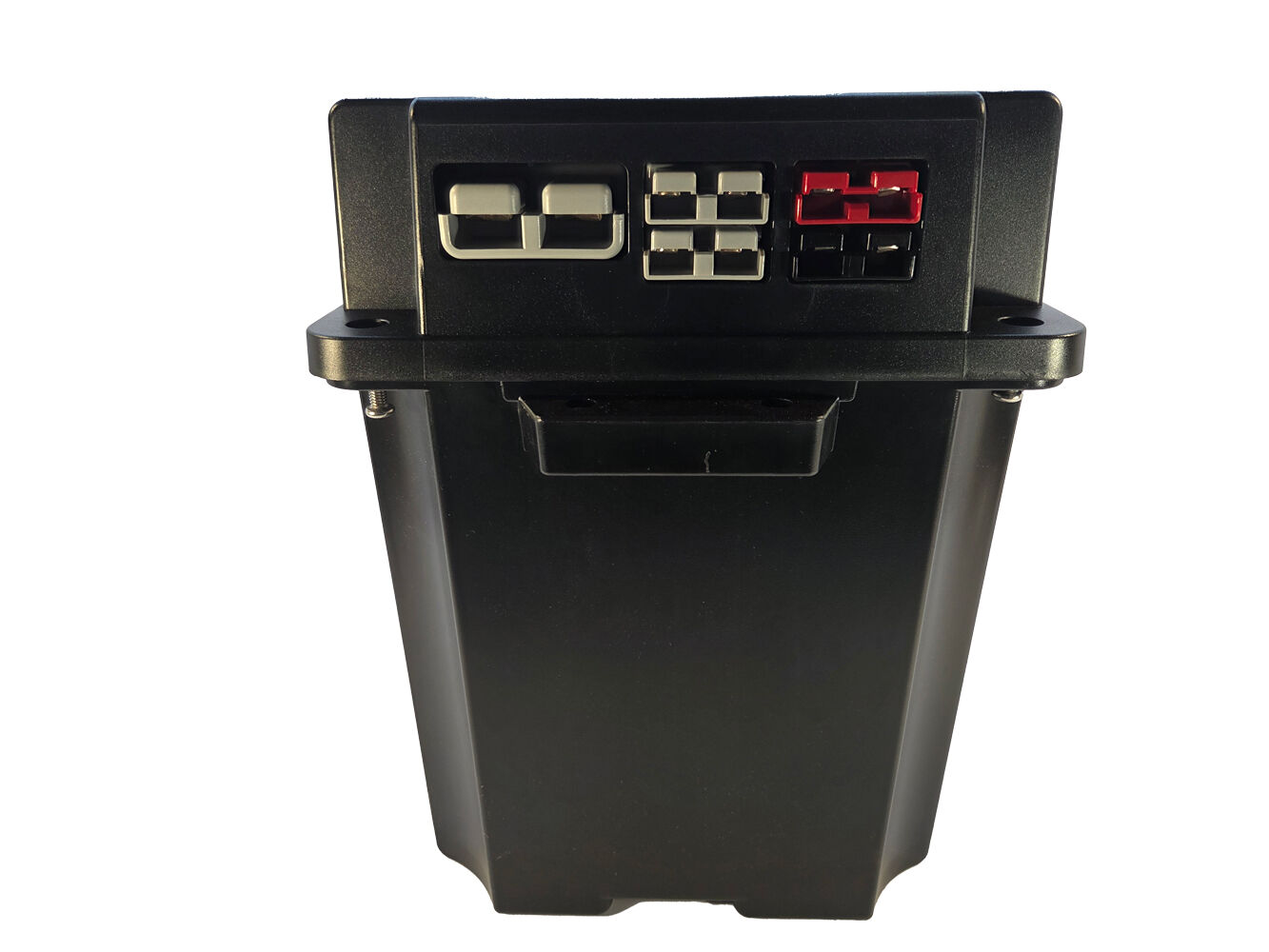

50A ANDERSON PLUGS x 2

These outlets in default configuration are protected by 50A resettable circuit breakers per pair, as such they are also limited to 50A continuous collectively. These can be rewired for higher throughput

175A ANDERSON PLUGS x 1

This output can be used to power an inverter or other high draw appliance. With the default cabling and switching provided this can supply up to a 1000W inverter. This can be rewired for higher throughput

12V DC OUTLETS x 2 USB OUTLET x 1

Used for general accessories and appliances or for charging your phones and other devices. These are protected by a 30A fuse. There is ample room to expand these outlets around the lid these boxes are incredibly versatile and can be modified to house many of the components that create 12v systems or to field certain applications. Simply ask us for some examples or share with us your requirements and we will be more than happy to help.

IMPORTANT NOTE: IF VEHICLE HAS SMART ALTERNATOR MAKE SURE BLUE CABLE ON CHARGER IS CONNECTED (IT IS CONNECTED VIA DEFAULT) IF VEHICLE DOES NOT HAVE A SMART ALTERNATOR MAKE SURE BLUE CABLE ON CHARGER IS DISCONNECTED

IN-BUILT CIRCUIT PROTECTIONS:

• 1 x 150A MAIN BREAKER
• 1 x 50A CIRCUIT BREAKER PER PAIR OF ANDERSON PLUGS
• 1 x 50A CIRCUIT BREAKER FOR DC-DC/SOLAR INPUT
• 30A BLADE FUSE FOR USB & 12V SOCKETS
• MAXIMUM BATTERY WEIGHT: 35KG

Features:

• Suits batteries up to 330 x 180 x 240mm (130Ah AGM / 300Ah Custom Lithium)

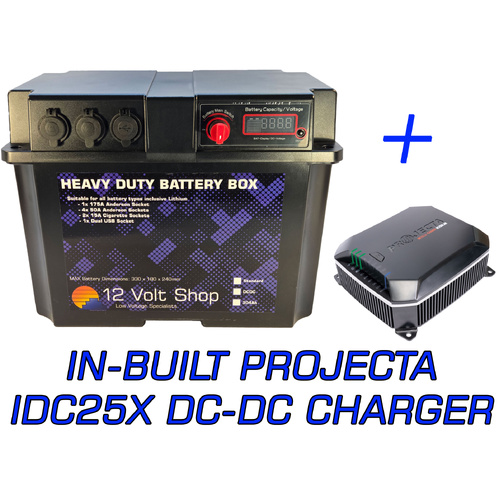

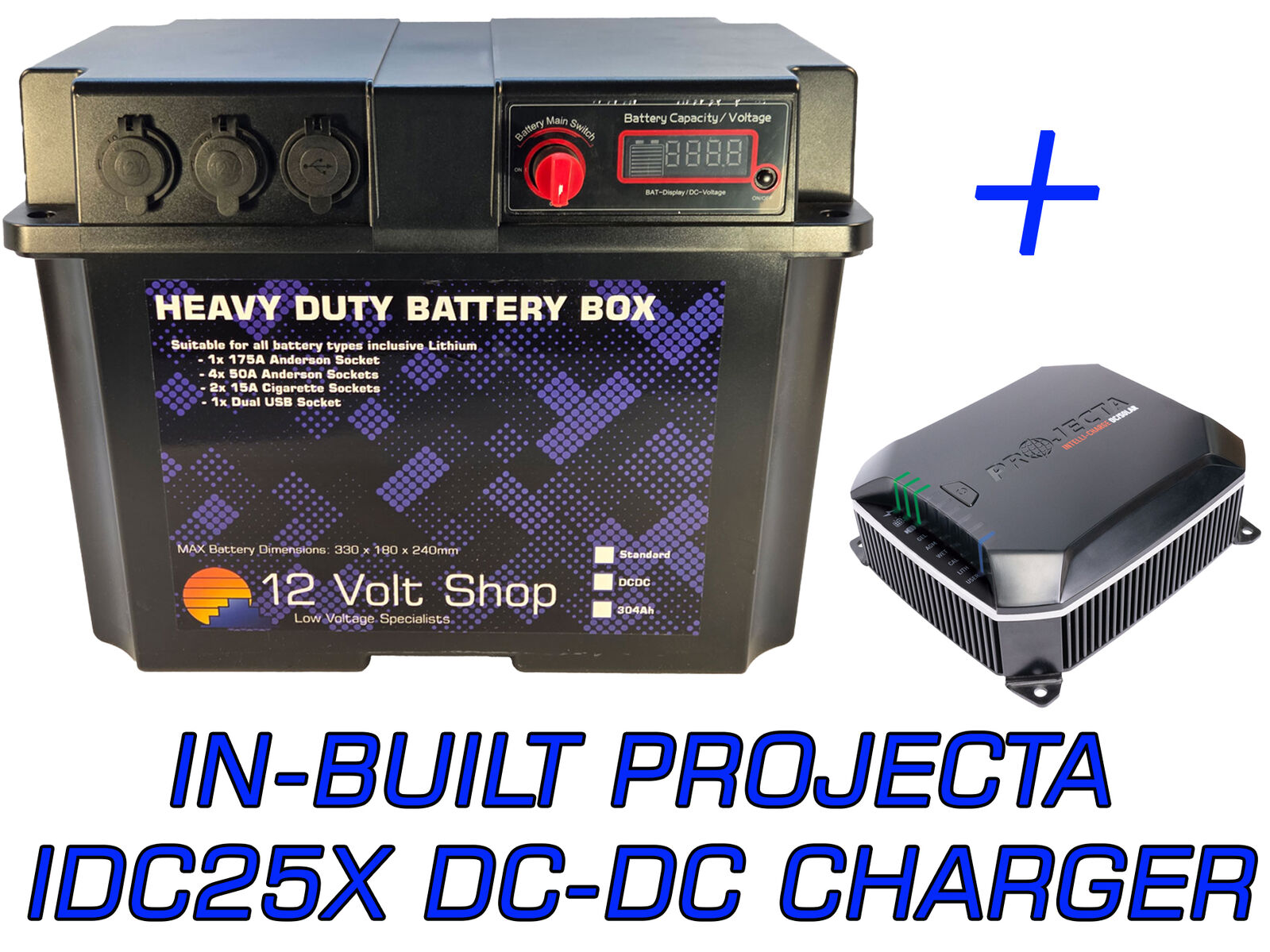

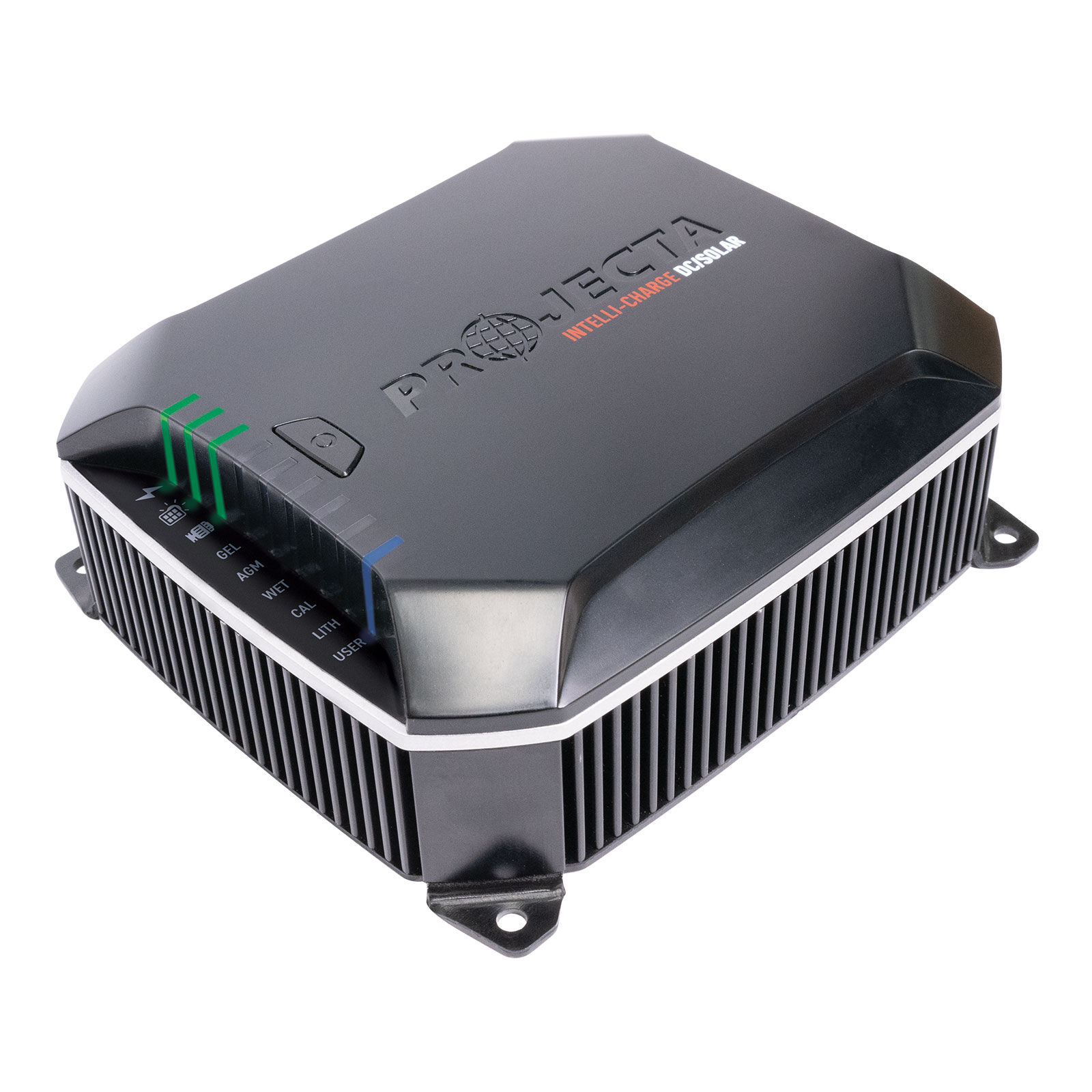

• In-built Projecta IDC25X DC-DC Charger w/MPPT Solar
• 4 x 50A Anderson Plugs (2 Input, 2 Output)
• 1 x 175A Anderson Plug
• 2 x 12V Cigarette Sockets
• 1 x 50A Auto Reset Circuit Breaker (50A Anderson's & Sockets)
• 1 x 50A Manual Reset Circuit Breaker (DC-DC Charger input)
• 1 x 150A Manual Reset Breaker (Master breaker)
• Lid is screwed tight.
• Dual USB Ports with high current output (2 x 2.1A)
• Handy bar graph LED Meter
• Circuit Breaker Switch
