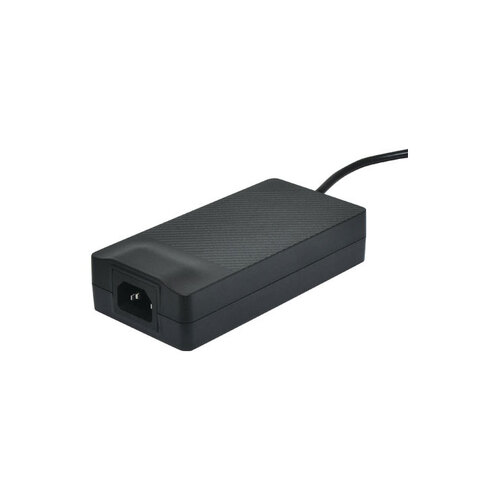

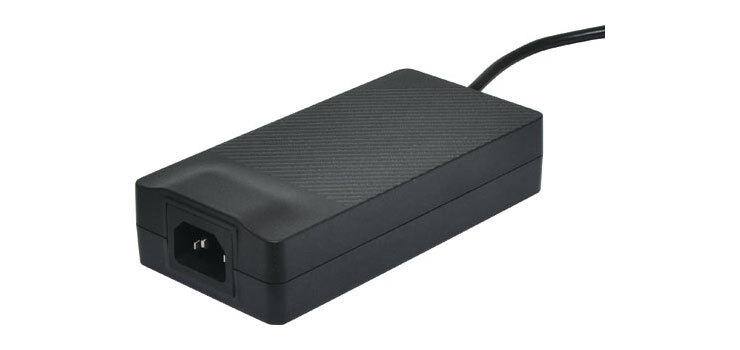

This 12V DC 10A (120W) fixed 2.1mm tip power pack is a super-compact regulated power supply for consumer appliances.

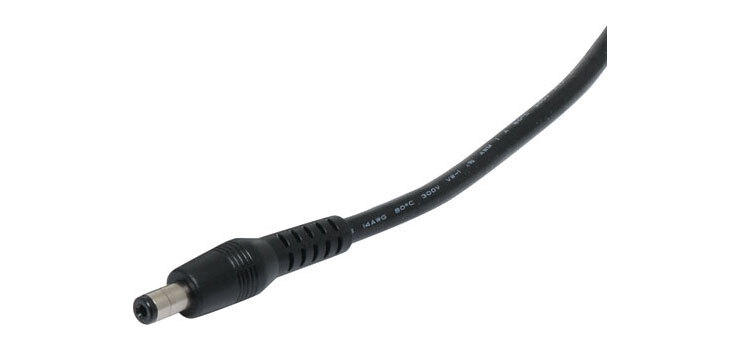

The tip is a 2.1mm DC jack.

100-240V AC input via 3 pin IEC lead. Energy authority approved. MEPS approved.

NOTE: Requires 3 pin IEC mains lead, see accessories listed.

Features:

  • Input Range: 100V to 240V AC
  • Output Voltage: 12V DC
  • Output Current: 10A
  • Barrel Length: 10mm
  • Plug Tip Type: 5.5mm outer diameter and 2.1mm inside diameter
  • Polarity: Positive centre
  • Cable Length: 1.2m
  • MEPS Efficiency Level: V
  • Australian Standards Compliant
  • Suitable for a range of electronic devices
Model M8942A
Input 100-240V AC @ 50-60Hz
Tip: 2.1mm x 5.5mm
Output 12V DC @ 10A
Polarity Tip Positive
Short Protection Yes
Over Current Protection Yes
Over Voltage Protection Yes
Size 135 x 67 x 30mm

*Specifications are subject to change without notice.

SKU 9321758234983
Barcode # M8942A
Brand Powertran
Shipping Weight 0.5000kg
Shipping Width 0.180m
Shipping Height 0.050m
Shipping Length 0.110m
Shipping Cubic 0.000990000m3
