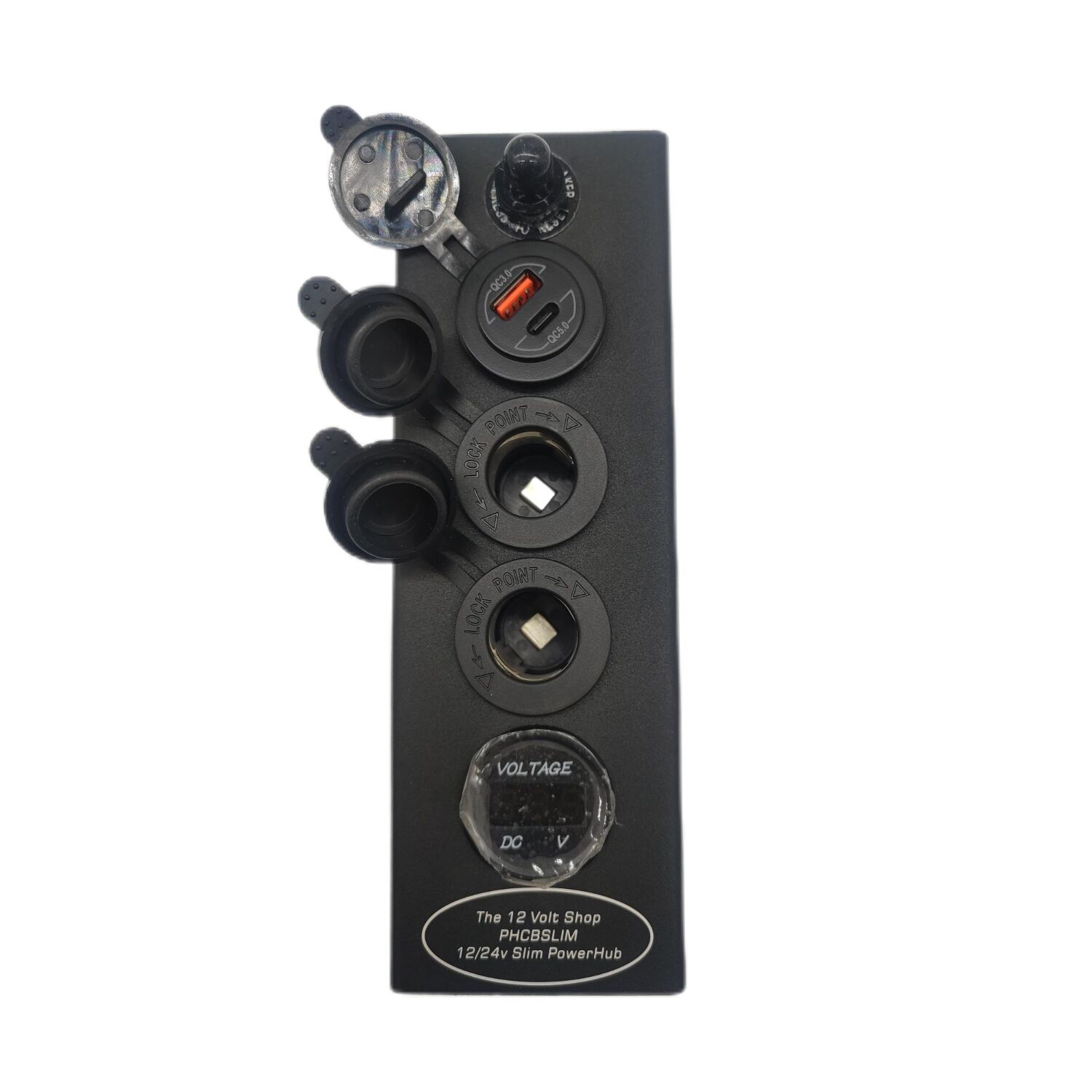

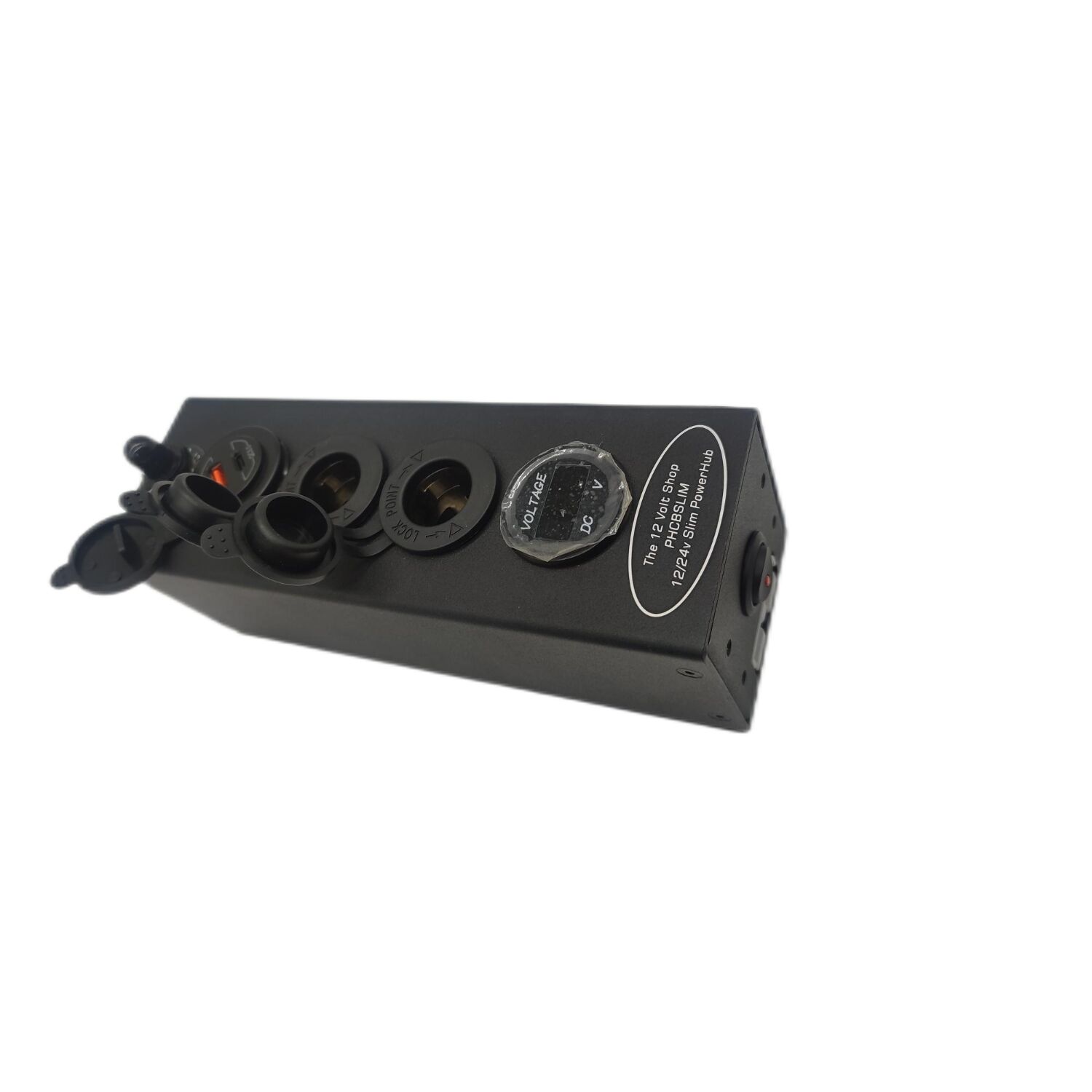

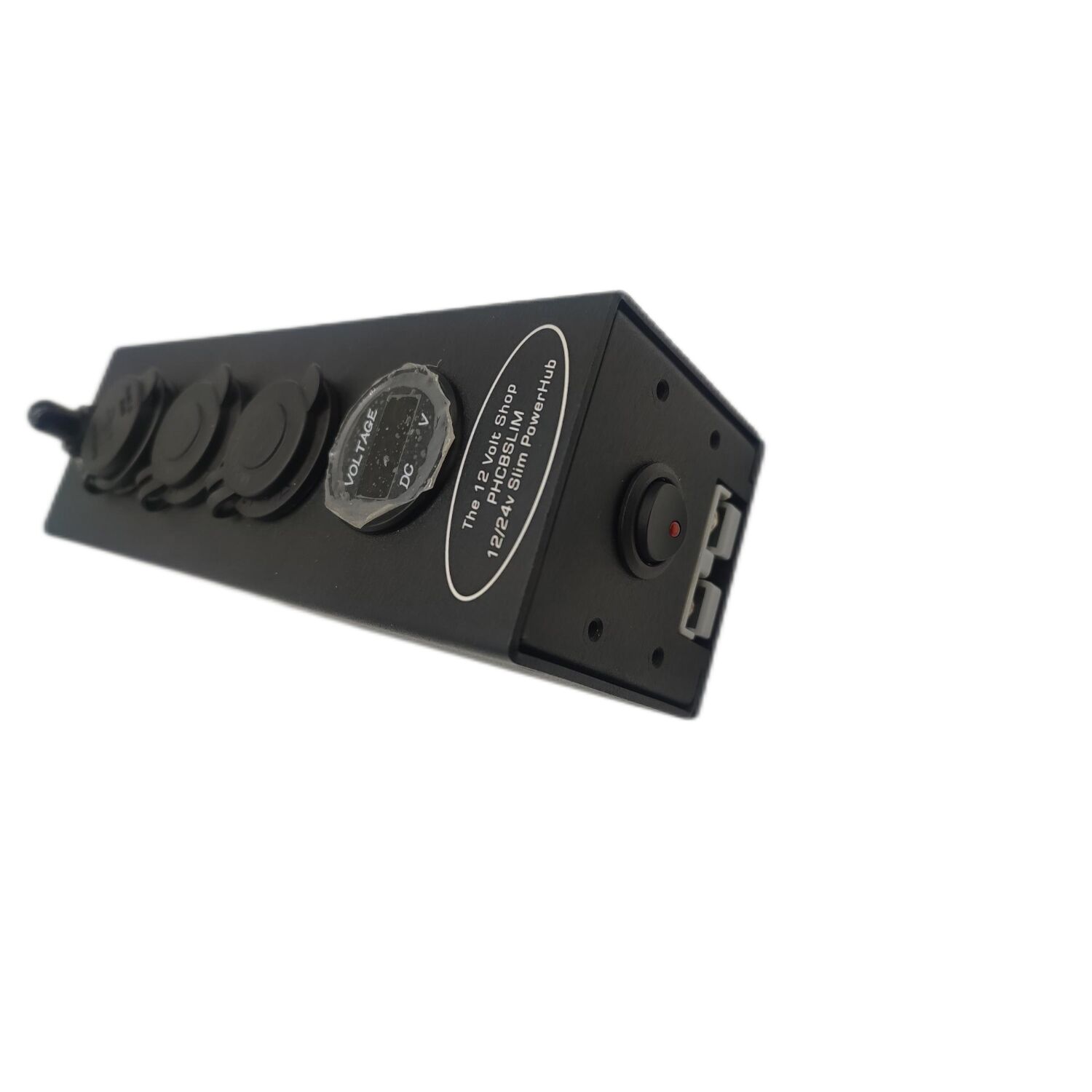

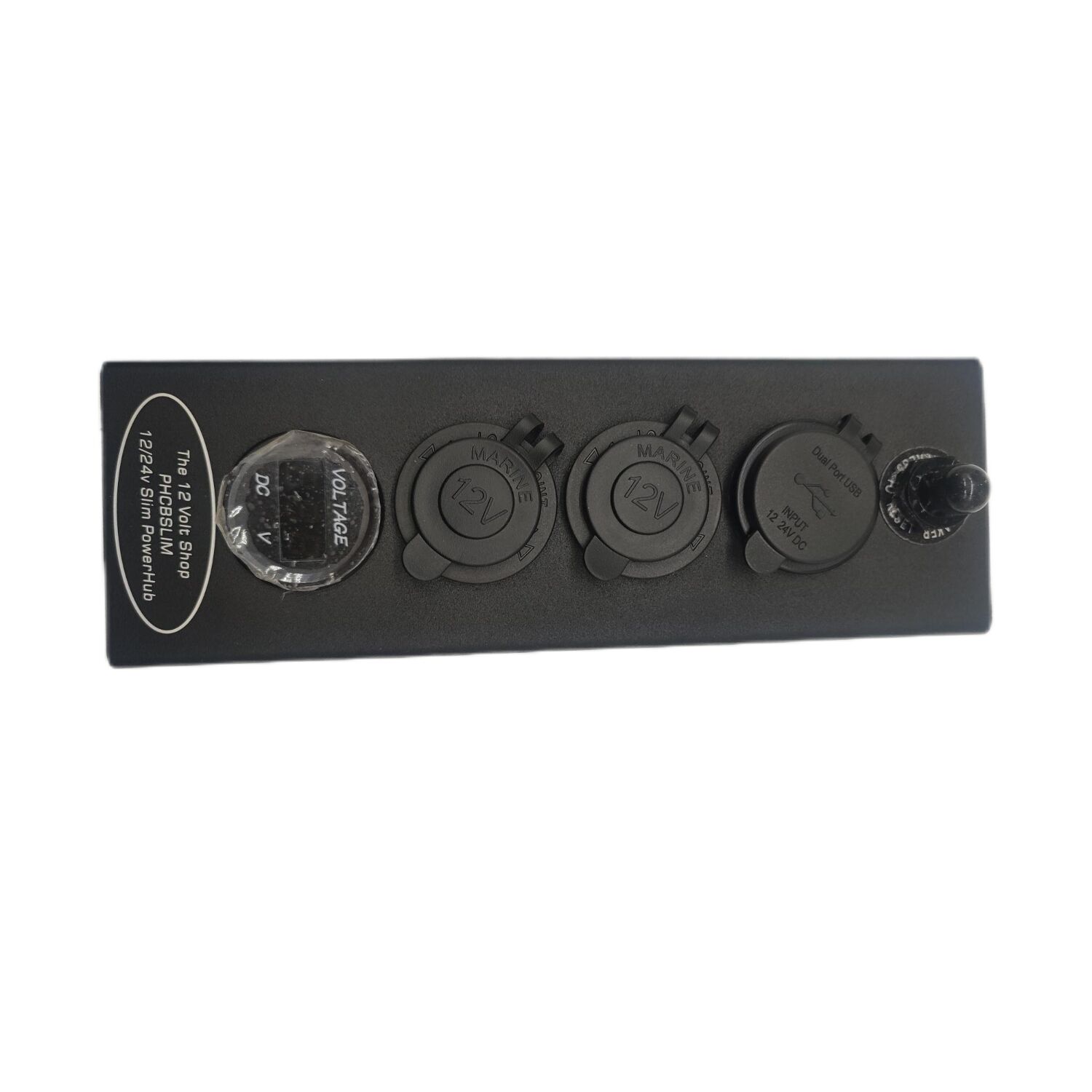

This Slimline Power Hub Control Box is designed to manage and distribute power from a 12V or 24V battery in your camper, boat or RV.

Just connect a high capacity 12/24V battery to its grey 50A high current Anderson connector input and power your 12/24V or USB powered devices from the two cigarette lighter power sockets, or from its USB ports.

Four USB-A ports provide up to 3.0A each, and a 100W USB Type-C port features Power Delivery technology to power or charge compatible devices.

A built-in fuse box includes blade fuses to each power output and a LED voltmeter indicates the voltage or your input battery.

Quick Charging Capabilities: This charger supports USB-A Quick Charge 3.0 and USB-C Power Delivery (PD) Protocols which enables fast charging for compatible devices, allowing you to quickly top up your phone's battery when you're on the move. (For iPhone fast charge: need to use with USB C TO for Apple interface cable.)

Multi-Output Options: The product features multiple output options as it dynamically adjusts the power flow to suit the connected device's needs catering to different charging needs, such as charging phone, tablet, or laptop

Starlink Mini supported: Able to power Starlink Mini through the 100w USB-C PD port. (Requires input voltage above 20v and use of 100w USB-C Cable)

Features

  • 1 x 50A Grey Anderson Connector Input
  • 1 x On/Off Switch (USB)
  • 1 x 20A Resetable Circuit Breaker
  • 1 x QC3.0 USB-A 3.0A Ports
  • 1 x QC5.0 USB-C Power Delivery Port 100W (36w from 12v input, 100w from 20v+ input)
  • 2 x Cigarette Lighter Power Sockets
  • LED Voltmeter
  • Mounting holes

*Input Supply Voltage must be between 20-32V to acheive 100W USB-C Output

SKU PHCBSLIM
Brand 12 Volt Shop
Shipping Weight 0.0650kg
Shipping Width 0.120m
Shipping Height 0.080m
Shipping Length 0.240m
Shipping Cubic 0.002304000m3
