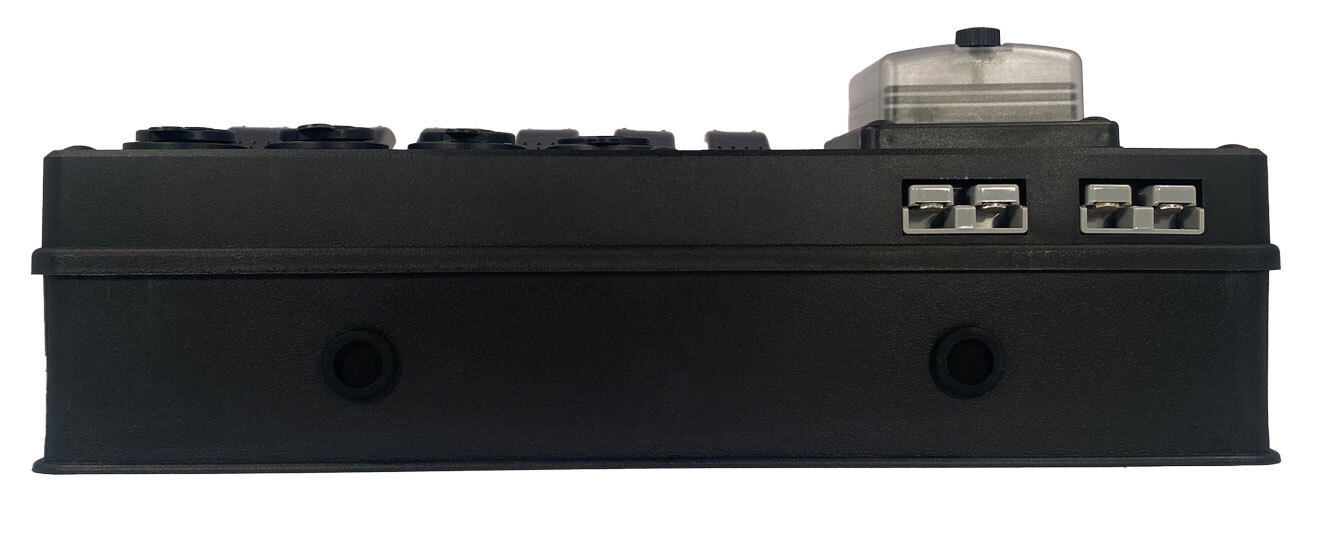

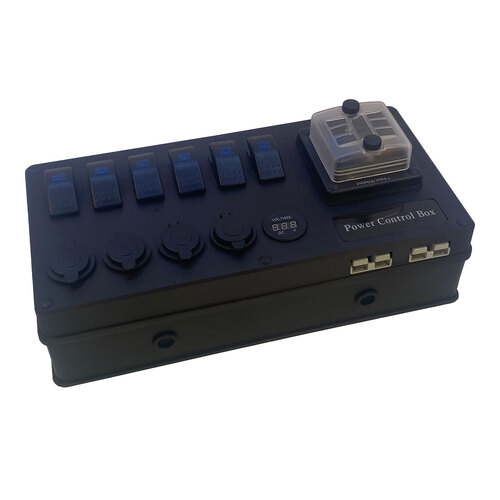

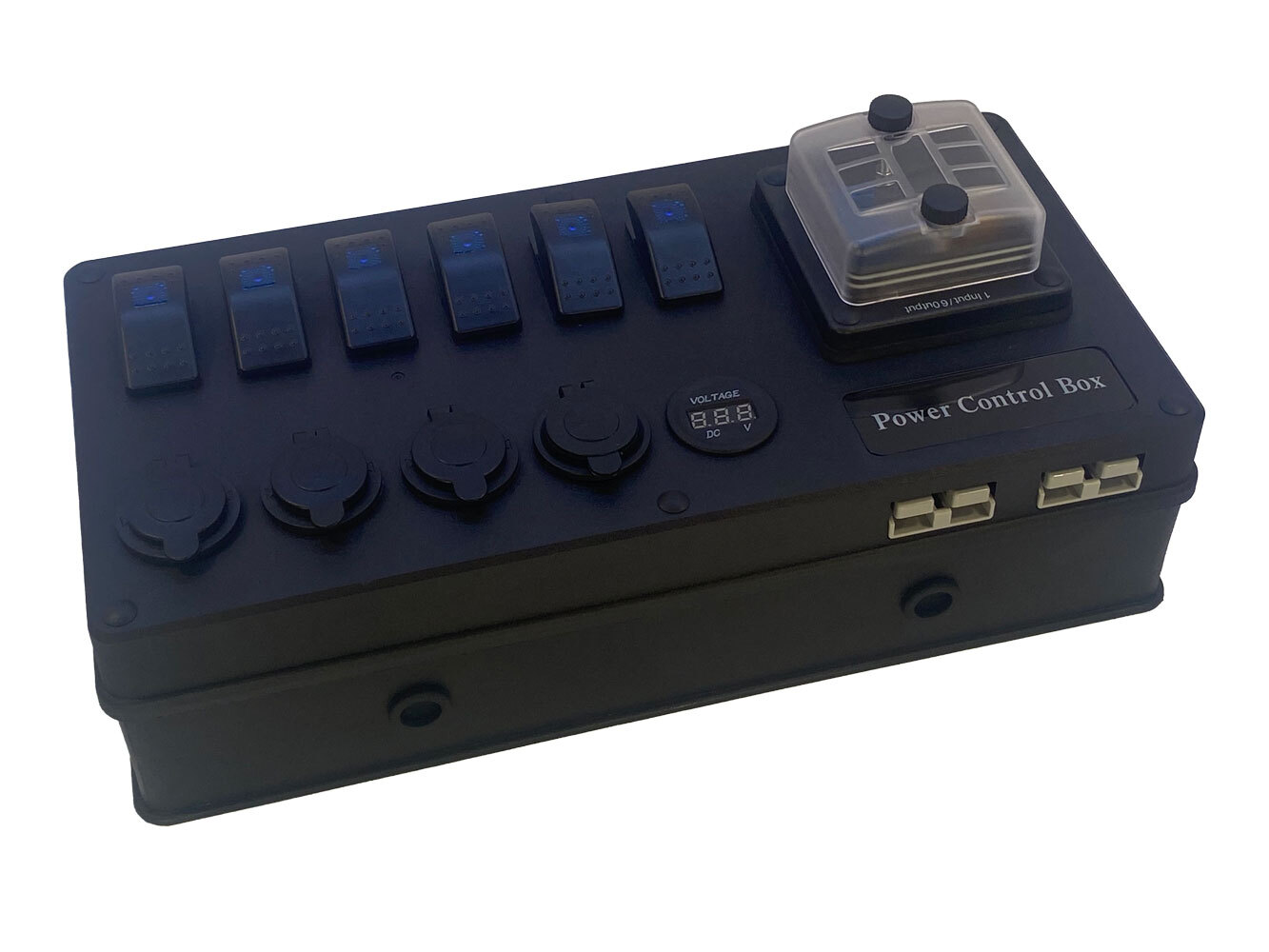

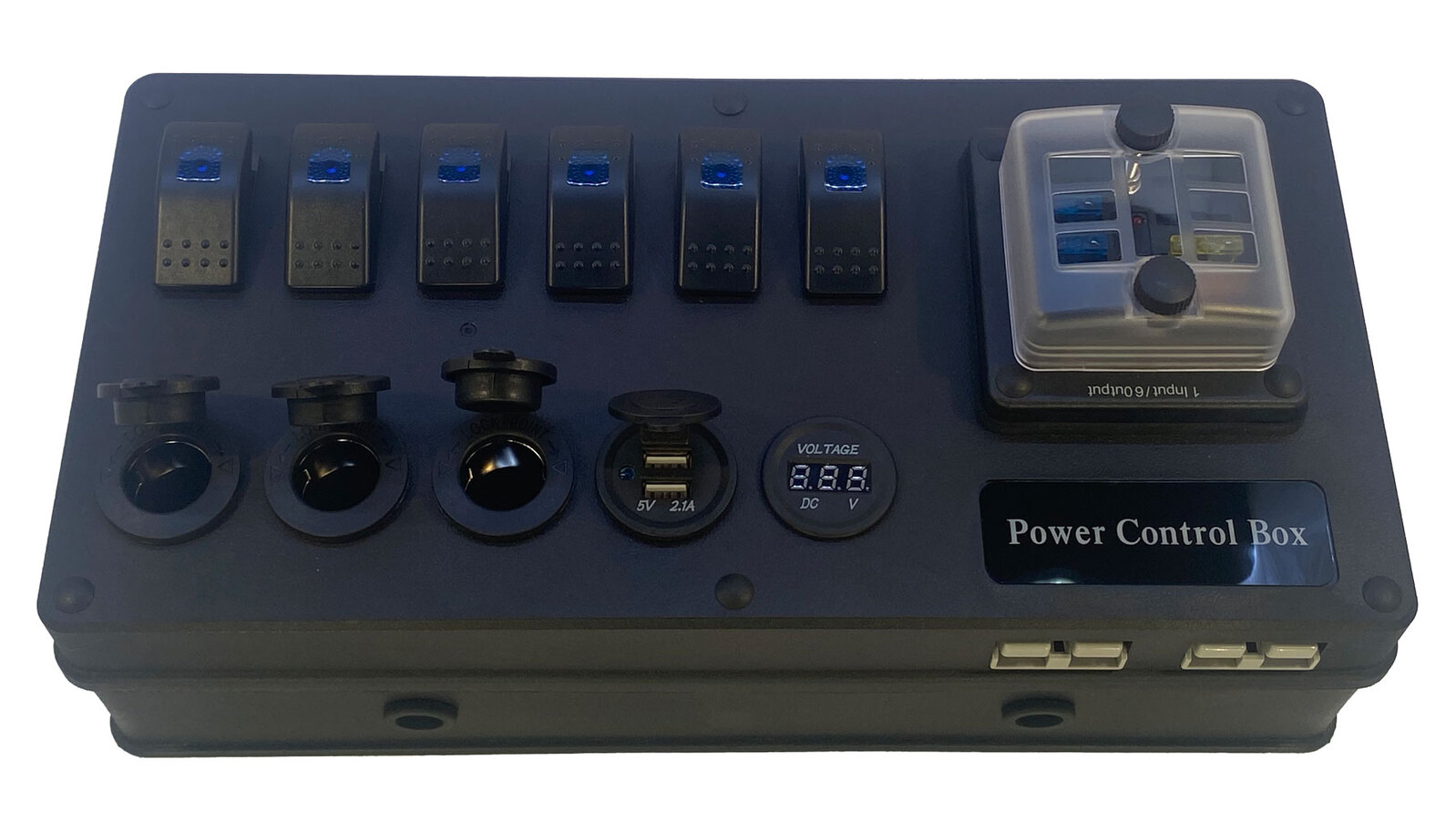

This Power Control Box is designed to manage and distribute power from a 12V or 24V battery in your camper, boat or RV.

This unit features sturdy construction - with a built-in weatherproof 6-way fuse block, weatherproof cigarette 20 Amp DC sockets, dual port USB socket, and two Anderson connectors for battery or appliance connection.

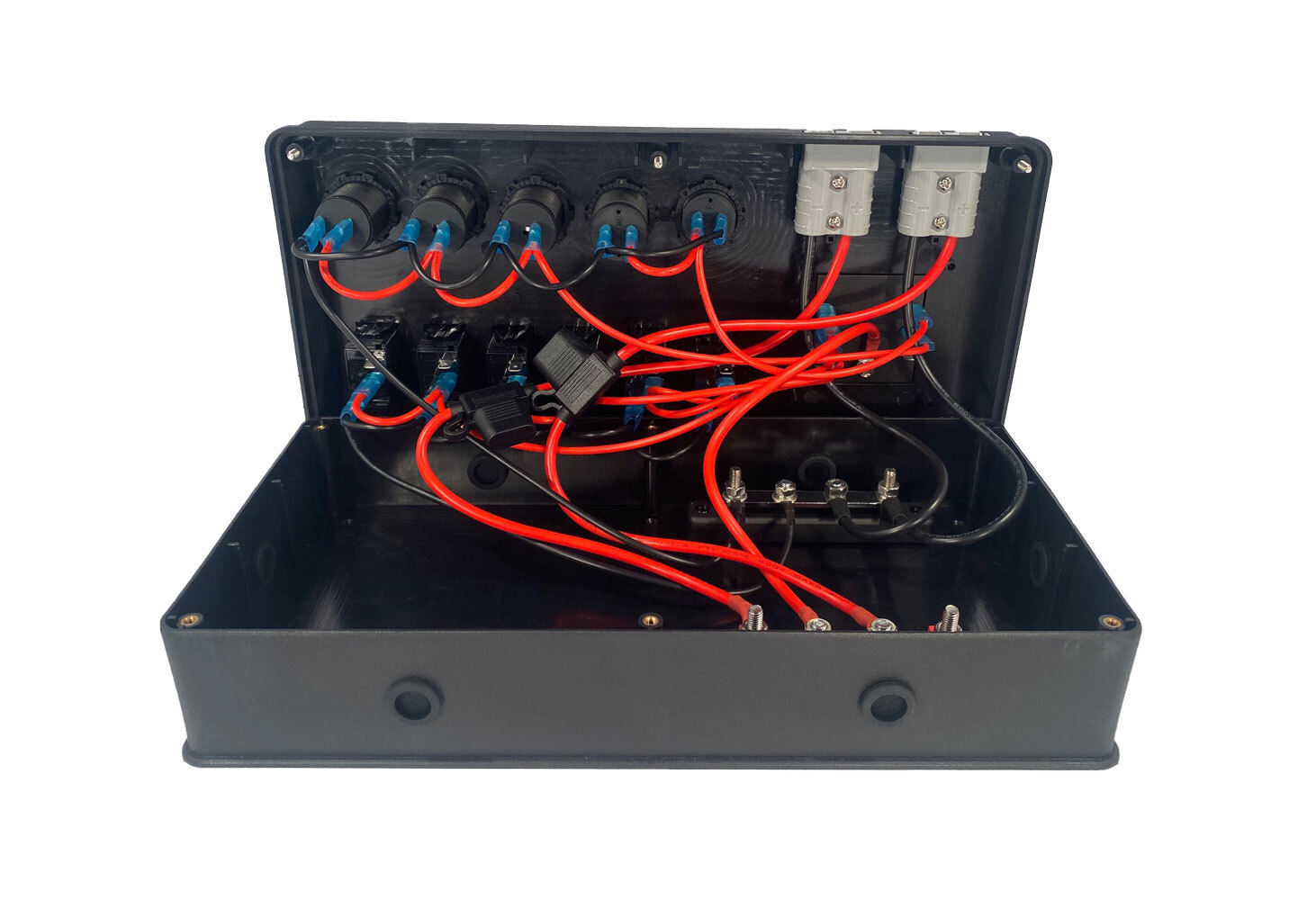

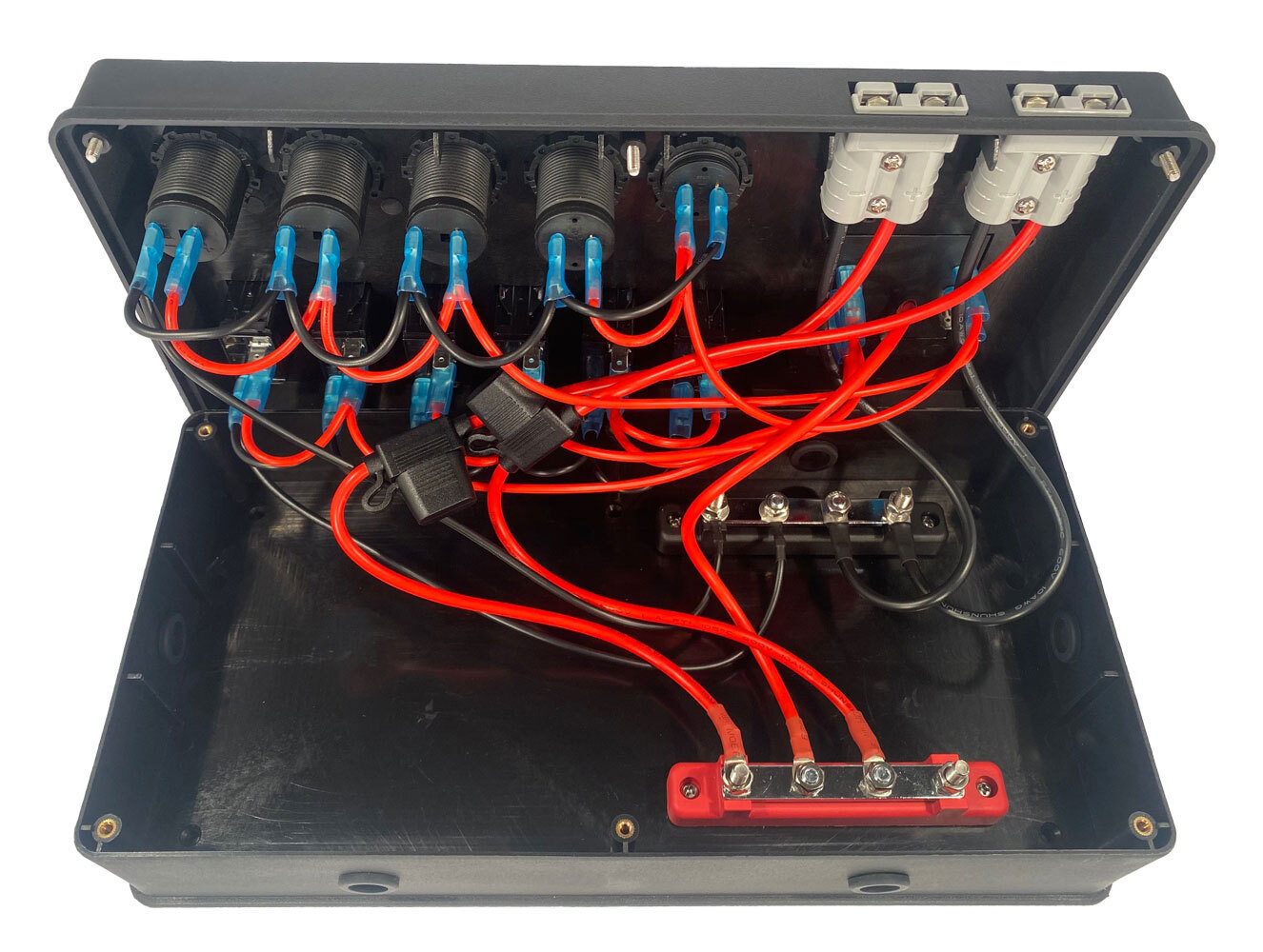

It has grommeted holes for fixed power cable entry, as well as 4-way internal bus bars for extra connections and on-off power switches.

With an LED digital voltage meter to check your current 12V reading at a glance.

Features

  • 2 x 50A Grey Anderson Connector (Fused at 30A)
  • 1 x USB-A 2.1A Port
  • 3 x Cigarette Lighter Power Sockets (Individually Fused at 10A)
  • 6 x On/Off Contura Switches with Blue LED Indicators
  • Grommeted Cable Entry Holes
  • Built-in weatherproof 6-Way Fuse Block
  • LED Voltmeter
  • Mounting holes
SKU PCB
Shipping Weight 1.9000kg
Shipping Width 0.180m
Shipping Height 0.150m
Shipping Length 0.370m
Shipping Cubic 0.009990000m3
