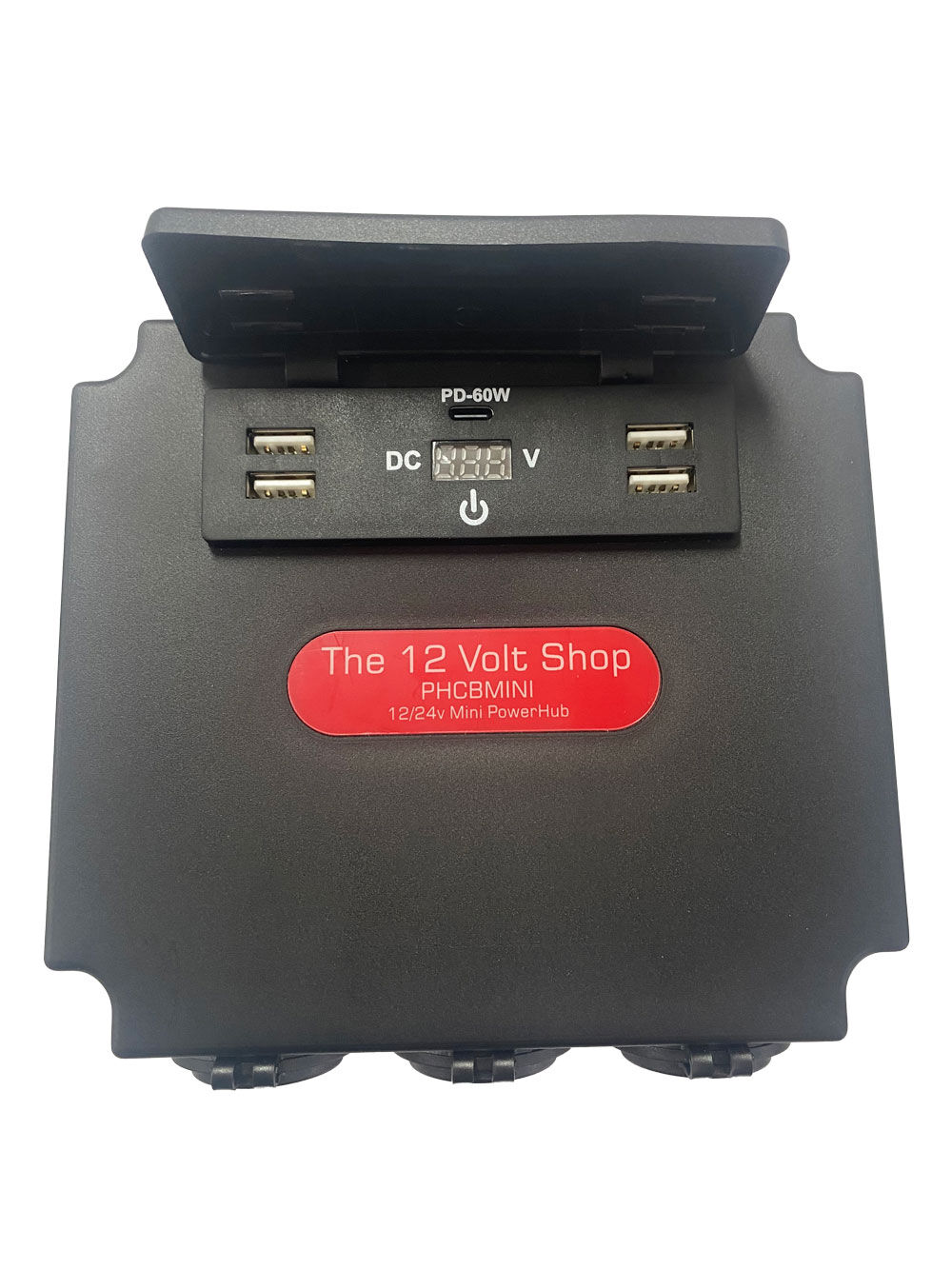

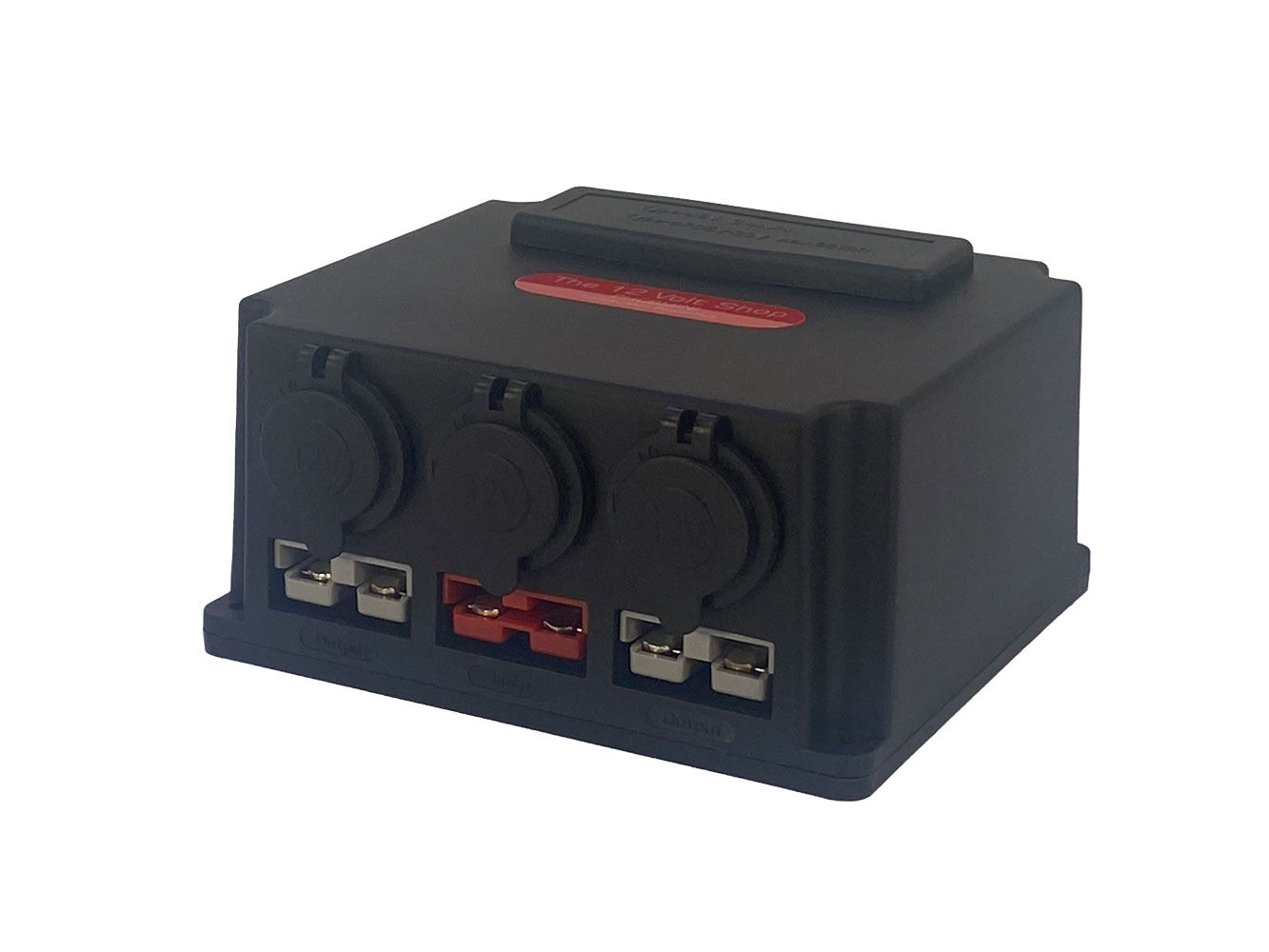

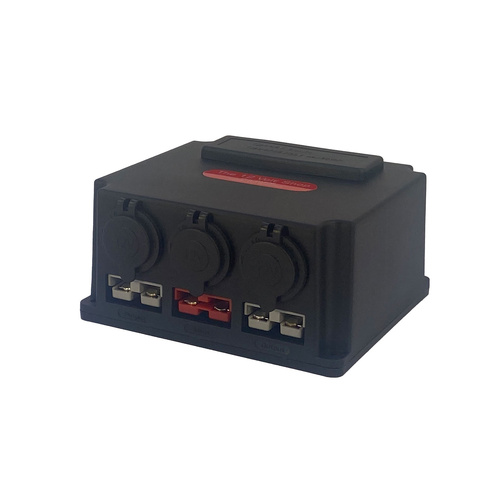

This Mini Power Hub Control Box is designed to manage and distribute power from a 12V or 24V battery in your camper, boat or RV.

Just connect a high capacity 12/24V battery to its Red 50A high current Anderson connector input and power your 12/24V or USB powered devices from the two Grey 50A high current Anderson connectors, two cigarette lighter power sockets, or from its five USB ports.

Four USB-A ports provide up to 2.4A each, and a 60W USB Type-C port features Power Delivery technology to power or charge compatible devices.

A built-in fuse box includes blade fuses to each power output and a LED voltmeter indicates the voltage or your input battery.

Quick Charging Capabilities: This charger supports USB-A Quick Charge 3.0 and USB-C Power Delivery (PD) Protocols which enables fast charging for compatible devices, allowing you to quickly top up your phone's battery when you're on the move. (For iPhone fast charge: need to use with USB C TO for Apple interface cable.)

Multi-Output Options: The product features multiple output options as it dynamically adjusts the power flow to suit the connected device's needs catering to different charging needs, such as charging phone, tablet, or laptop

Buck Booster PCB PD Port: The product will automatically boost voltage from 12v input up to 20v output for even faster laptop charging

Features

  • 1 x 50A Red Anderson Connector Input
  • 2 x 50A Grey Anderson Connector Outputs (Fused at 30A)
  • 1 x Touch On/Off Switch (USB)
  • 4 x USB-A 2.4A Ports
  • 1 x USB Type-C Power Delivery Port 65W
  • 3 x Cigarette Lighter Power Sockets (Individually Fused at 10A)

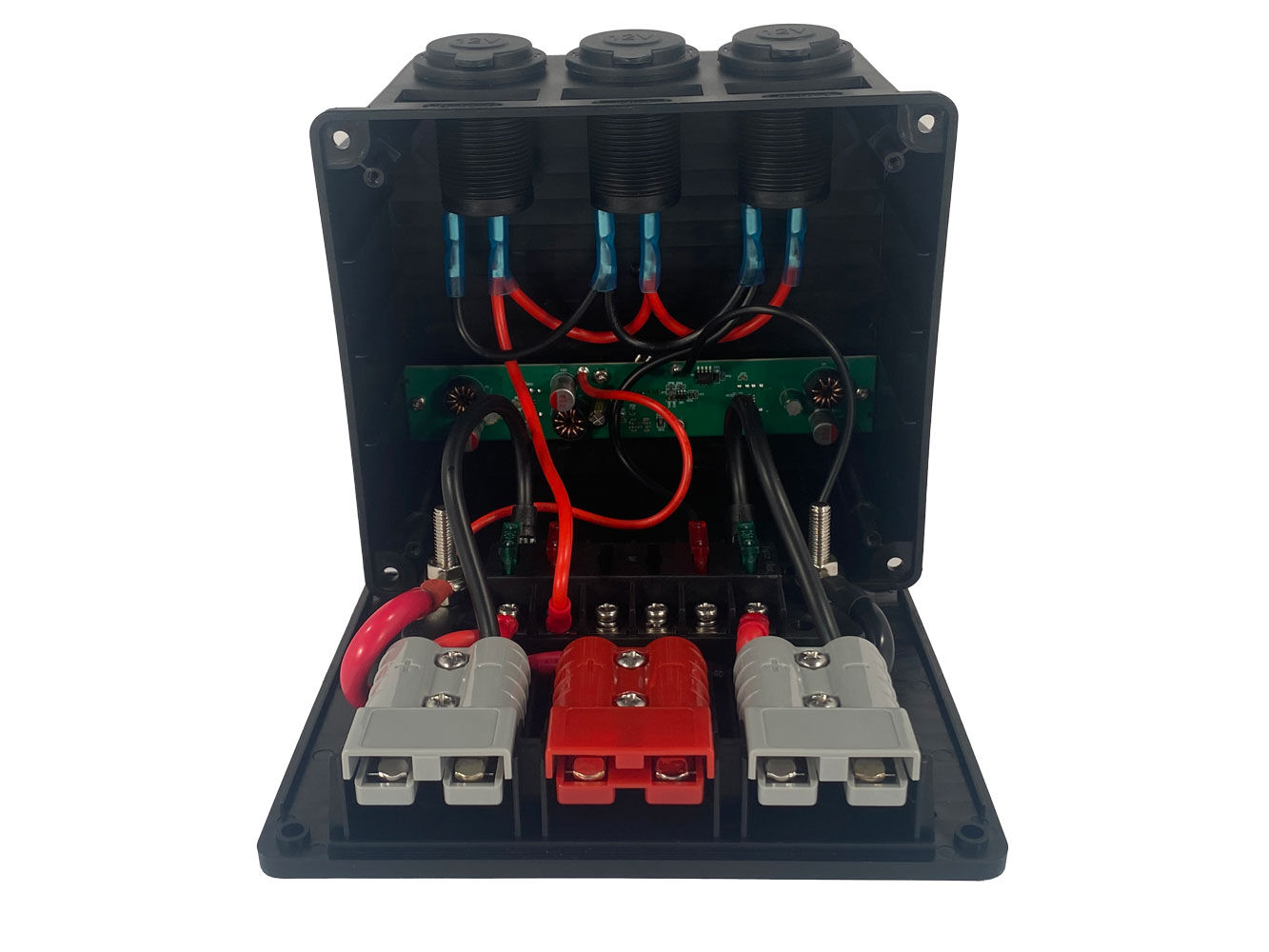

  • Internal Fuse Block
  • LED Voltmeter
  • Mounting holes
SKU PHCBMINI
Shipping Weight 0.7500kg
Shipping Width 0.160m
Shipping Height 0.110m
Shipping Length 0.160m
Shipping Cubic 0.002816000m3
