Our range of battery master switches that are suitable for applications on a wide range of passenger cars, trucks and marine as well as stationary engines such as generators.

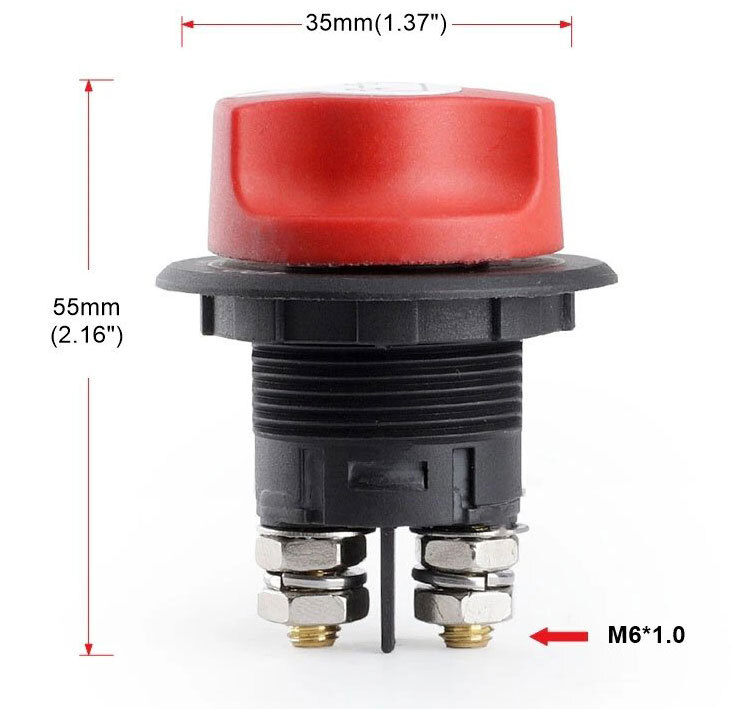

A Compact Switch at just 45mm round, requiring a mounting opening of just 29mm diameter

Features an easy turn knob, ideally suited for use with passenger cars, light trucks and stationary engines

IP56 Rated

  • Continuous rating : 100AMPS 32VDC MAX
  • Intermittent rated current : 150A
  • Rated starting current : 500A for 5 seconds
  • Mounting hole diameter : 29mm
  • Diameter of terminal post : 6mm
  • Contact resistance : 50M MAX



SKU BS100A
Barcode # YJ-WBS014
Shipping Weight 0.0600kg
Shipping Width 0.065m
Shipping Height 0.045m
Shipping Length 0.055m
Shipping Cubic 0.000160875m3
