With an Australian manufacturing heritage spanning over 60 years, Key Tubing & Electrical has an unsurpassed record of providing cost effective solutions to both national and global organisations.

All Key Tubing cable is made from the highest quality Oxygen Free Plain Copper Wire and is RoHS compliant.

Voltage Rating = 120V DC / 50V AC - Not for mains connection.

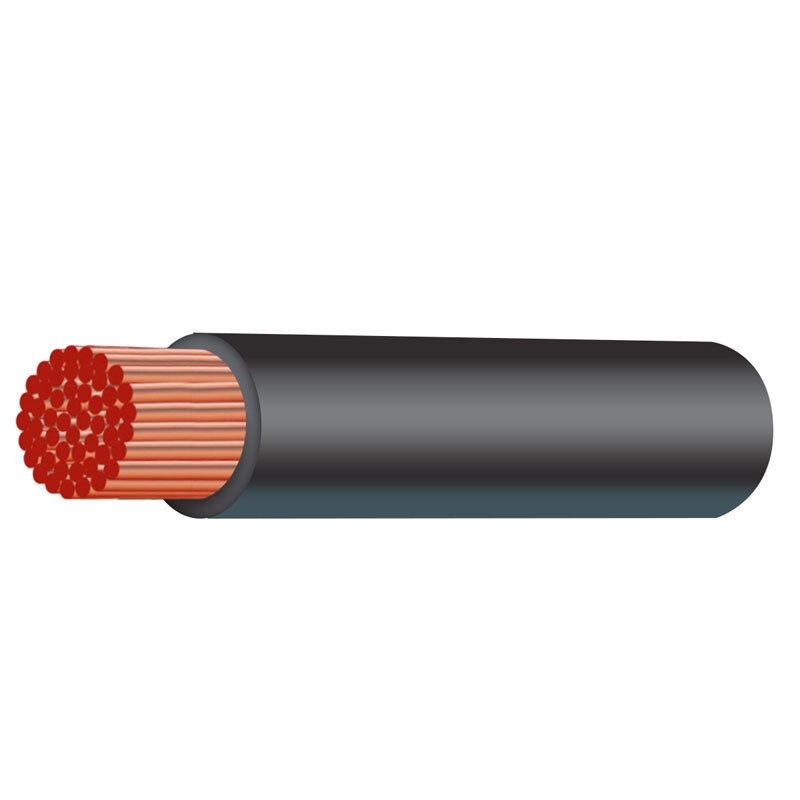

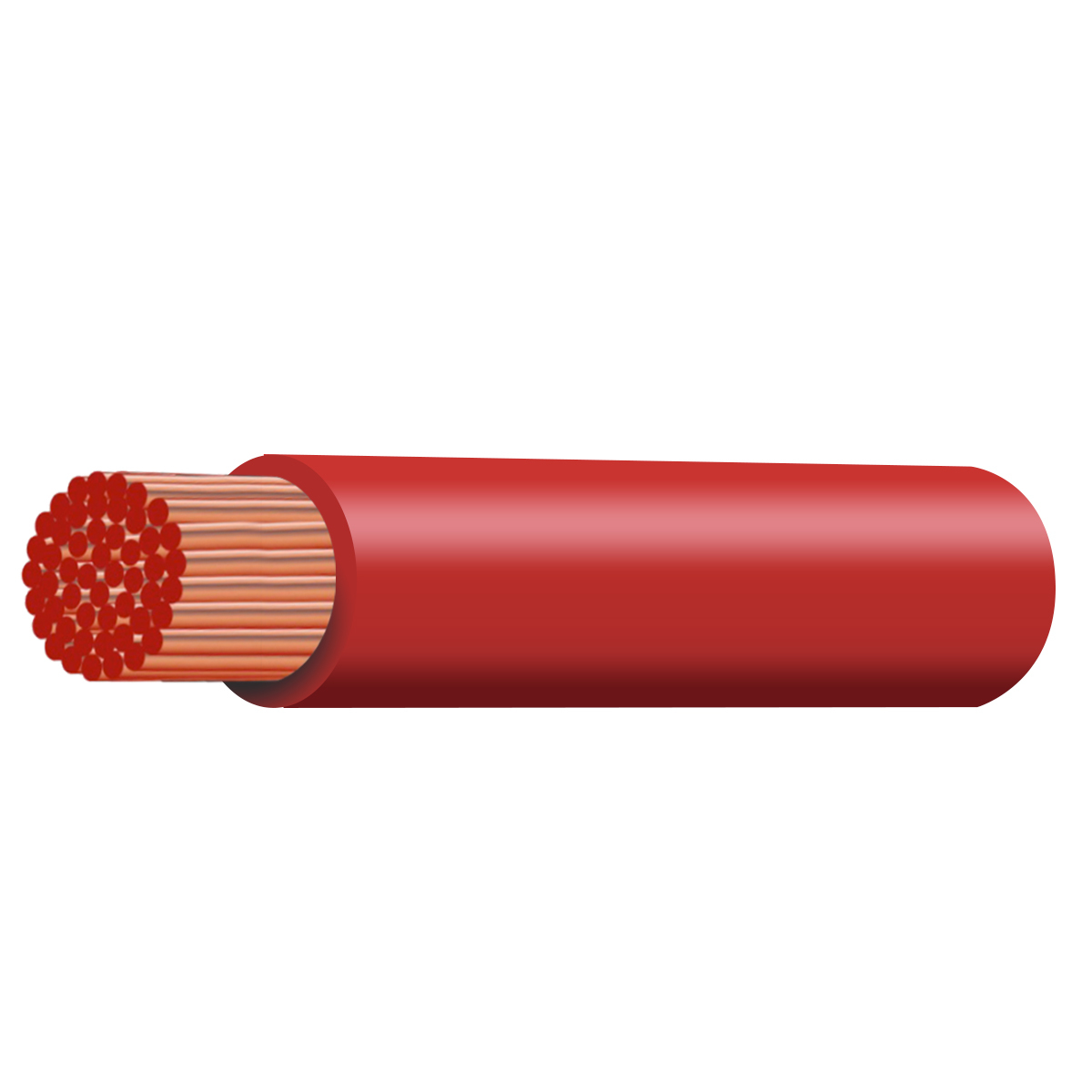

  • APPLICATIONS: General Purpose Automotive Wiring
  • CONDUCTOR: OXYGEN FREE Plain Copper Wire to AS/NZS 1125
  • INSULATION: V90 PVC Insulated to AS/NZS 3808
  • CORE COLOUR: Black, Blue, Brown, Green, Grey, Orange, Pink, Red, Violet, White, Yellow and the widest range of trace colours
  • PACK: Cut to length, 30, 100, 500, 1000 metres, other packs by request
Key Tubing Code KABC1609032
Tycab Code ABC1612032
Nearest AWG 0 AWG
Strand No. / Size 609/0.3
Nominal Area (mm²) 49.00mm
**AMP Rating @ 30°C 246 A
Insulation Thickness V90HT (mm) 1.7mm
Electrical Resistance @ 20°C (ohm/km) 0.4Ω
Nominal O.D. (mm) 13.7mm
Mass (kg/100m) 54.3kg

* MM is an industry term that identifies cable size and is not CONDUCTOR CROSS SECTION AREA

** AMP RATING: TO JASO D609 de rating factors apply

De-Rating Factors for Bundling of Single Core Cables

No. Of Cables 1 2 3 4 5 6 7 or 8 9 or 10
De-Rating Factor 1.00 0.80 0.70 0.60 0.55 0.5 0.45 0.4

De-Rating Factors for Ambient Temperatures °C

No. Of Cables 30°c 40°c 50°c 60°c 70°c
De-Rating Factor 1.00 0.90 0.76 0.60 0.45



SKU CA50MMSINGLE
Brand Key Tubing Electrical
Shipping Weight 0.5430kg
Shipping Width 0.170m
Shipping Height 0.014m
Shipping Length 0.170m
Shipping Cubic 0.000404600m3
