Elcon Cables is one of Australia's largest privately owned cable distribution companies.

With over 25 years in cable manufacturing, providing exceptional service at competitive prices they supply bot quality Australian-Made cables as well as the best from overseas.

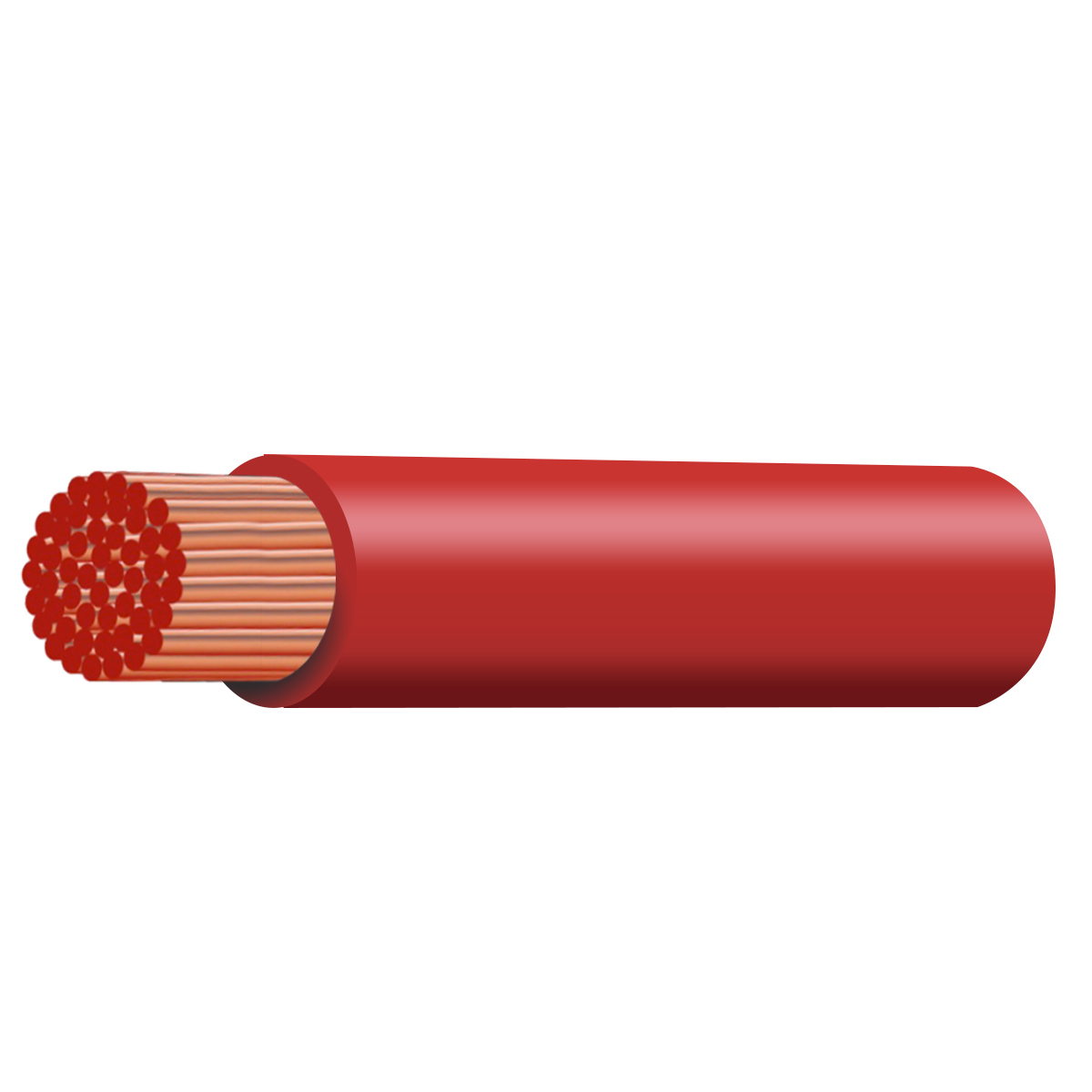

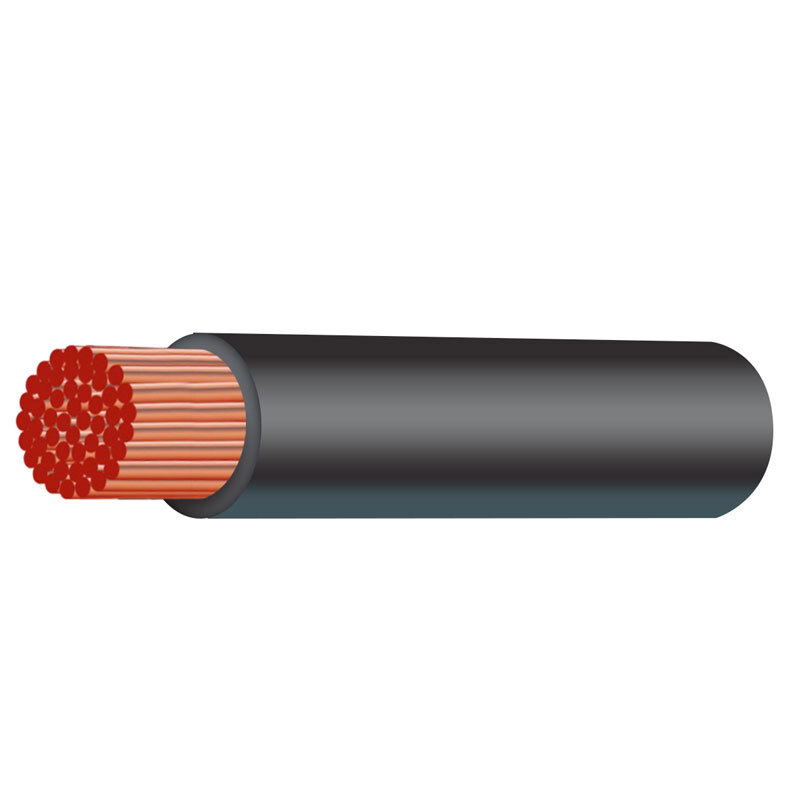

  • APPLICATIONS: General Purpose Automotive Wiring
  • CONDUCTOR: Plain annealed copper conductors AS/NZS1125 Class 5
  • INSULATION: X-HF-110 Flame Retardant
  • SHEATH: Nitrile Modified PVC-N (NBR) to AS/NZS5000.1
  • VOLTAGE: 0.6/1kV
  • CORE COLOUR: Black, Blue, Orange, Red
  • PACK: Cut to length, 30, 100, 500, 1000 metres, other packs by request
Elcon Code LHDN120
Nearest AWG 0000 AWG
Strand No. / Size 1653/0.3
Nominal Area (mm²) 120mm
**AMP Rating @ 30°C 487 A
Insulation Thickness V90HT (mm) 1.6mm
Electrical Resistance @ 20°C (ohm/km) 0.2Ω
Nominal O.D. (mm) 20.0mm
Mass (kg/100m) 124.0kg

* MM is an industry term that identifies cable size and is not CONDUCTOR CROSS SECTION AREA

** AMP RATING: TO JASO D609 de rating factors apply

De-Rating Factors for Bundling of Single Core Cables

No. Of Cables 1 2 3 4 5 6 7 or 8 9 or 10
De-Rating Factor 1.00 0.80 0.70 0.60 0.55 0.5 0.45 0.4

De-Rating Factors for Ambient Temperatures °C

No. Of Cables 30°c 40°c 50°c 60°c 70°c
De-Rating Factor 1.00 0.90 0.76 0.60 0.45



SKU CA120MMSINGLE-30
Brand Elcon Cables
Shipping Weight 40.6500kg
Shipping Width 0.450m
Shipping Height 0.350m
Shipping Length 0.450m
Shipping Cubic 0.070875000m3
